Appendix: Fan and Temp Sensors
This section aims to help readers identify the locations of some specific FAN and
Temp Sensors on the motherboard. A table of BIOS Temp sensor name
explanation is also included for readers’ reference.

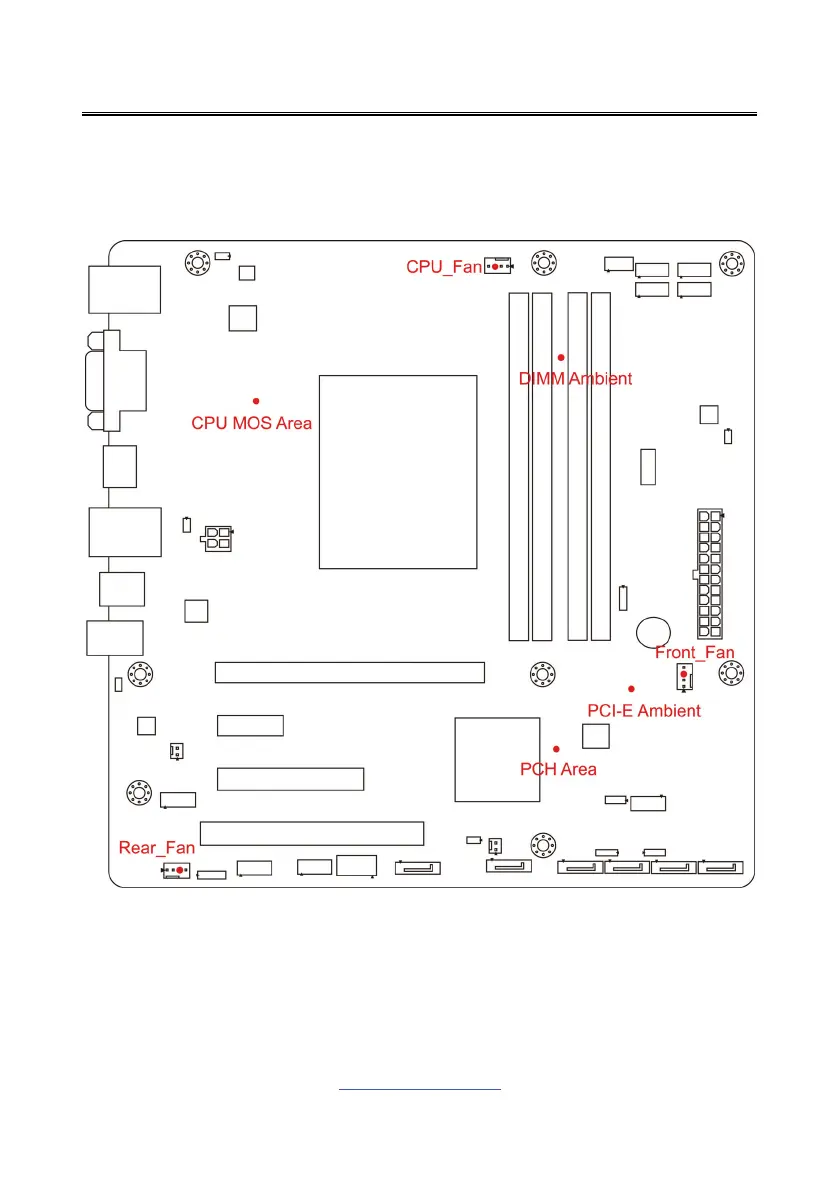

NOTE: The red dot indicates the sensor.
