23

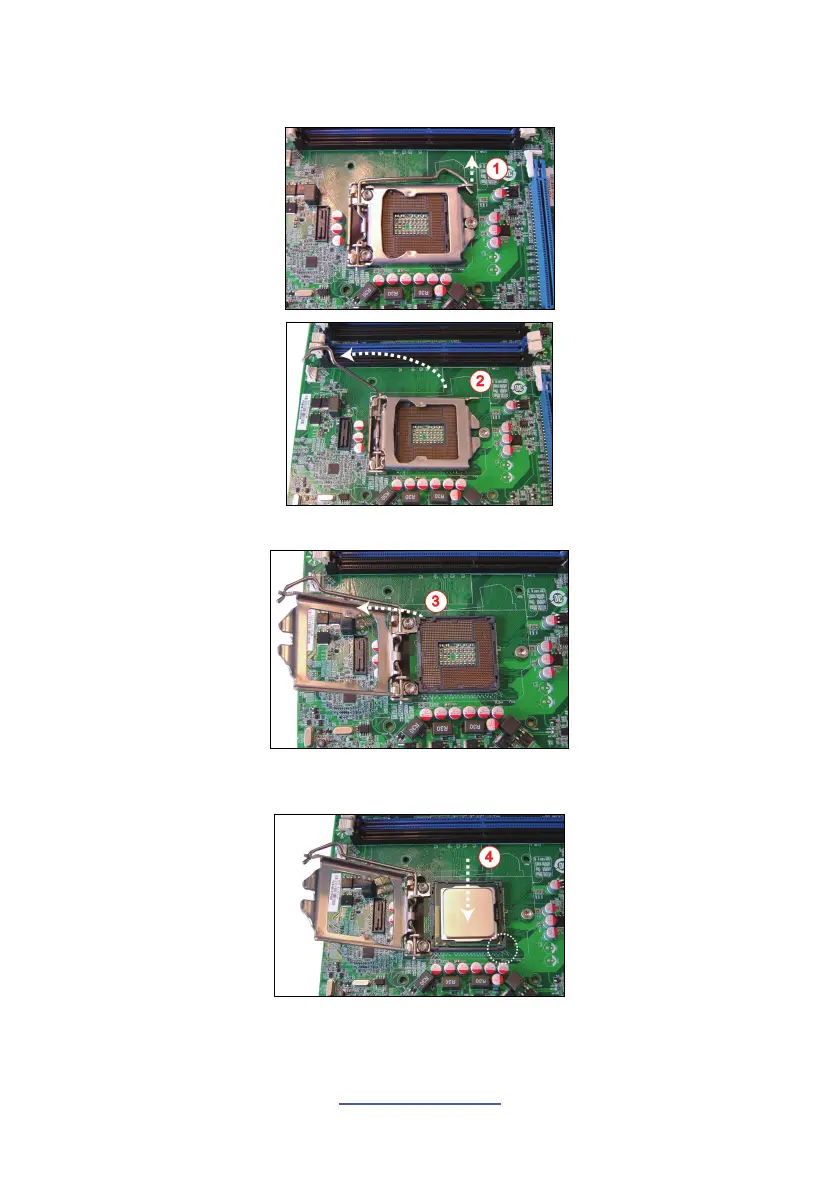

3. Pull the CPU lever slightly away from the socket and then push it to a fully
open position.
4. Lift the socket cover to a fully open position.
5. Place the CPU in the CPU socket and make sure that the gold arrow is
located in the right direction with two notches properly aligned.
6. Close the socket cover and press the CPU socket lever down to lock the CPU
in place.
