149

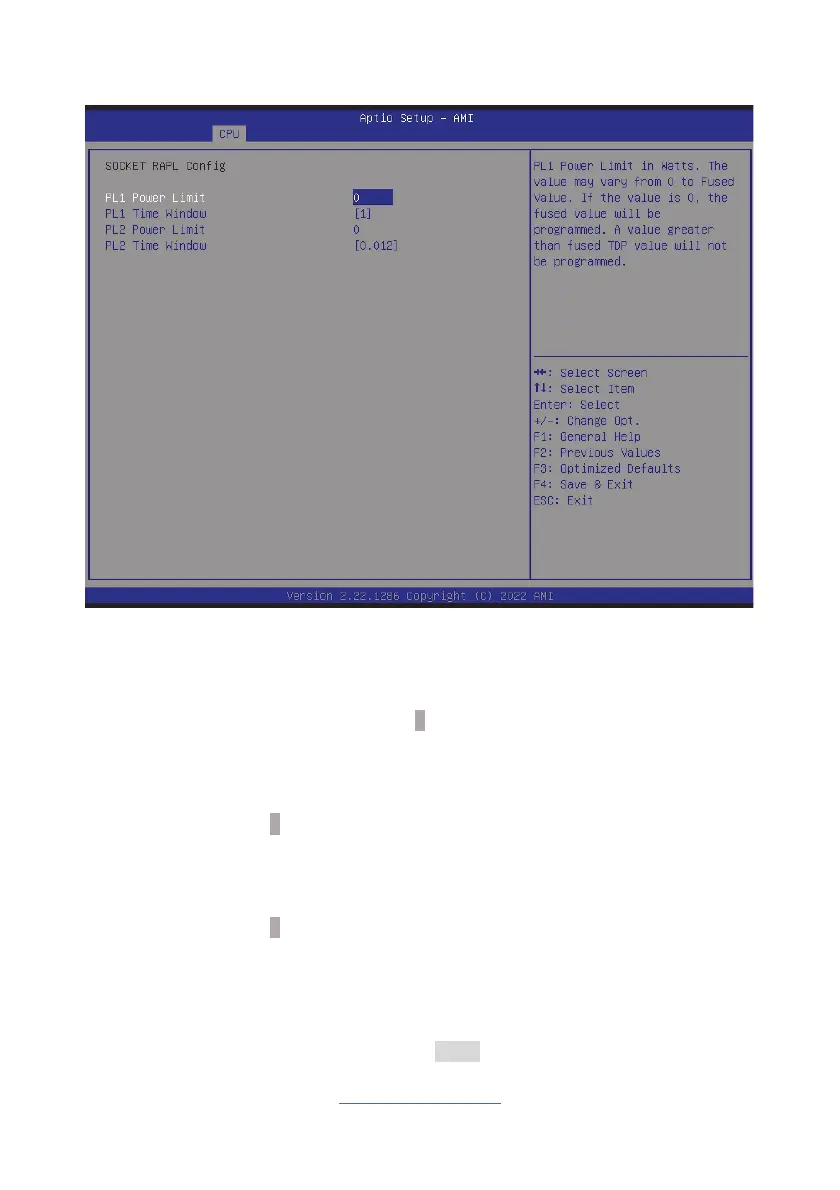

3.4.6.7 SOCKET RAPL Configuration
PL1 Power Limit
PL1 Power Limit in Watts. The value may vary from 0 to Fused Value. If the value is
0, the fused value will be programmed. A value greater than fused TDP value will
not be programmed.
0
PL1 Time Window
PL1 value in seconds. The value may vary from 0 to 448. Indicates the time window
over which TDP value should be maintained.
1
PL2 Power Limit
PL2 Power Limit in Watts. The value may vary from 0 to Fused Value. If the value is
0, BIOS programs 120%*TDP
0
PL2 Time Window
PL2 value in seconds. The value may vary from 0 to 438. Indicates the time window
over which TDP value should be maintained.
0.001 / 0.0012 / 0.0015 / 0.0017 / 0.002 / 0.0024 / 0.003 / 0.0034 /
0.004 / 0.005 / 0.006 / 0.007 / 0.008 / 0.01 / 0.012 / 0.014 / 0.016 / 0.02 / 0.023
