2.14 Installing the Power Supply

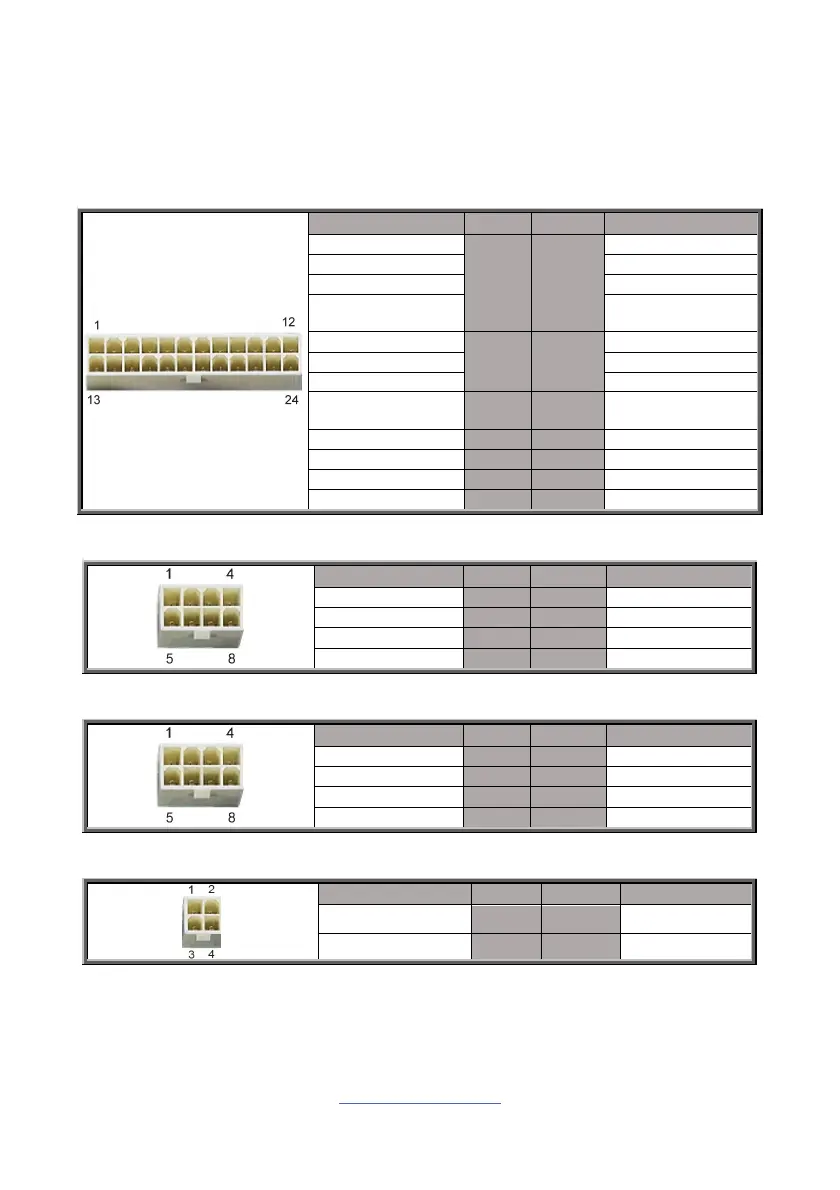

There are Four (4) power connectors on your S5652 motherboard. The S5652
supports EPS 12V power supply.
PWR1: ATX 24-Pin Power Connector
Signal Pin Pin Signal
P3V3 1 13 P3V3
P3V3 2 14 NC
GND 3 15 GND
P5V 4 16
FM_PS_EN_PSU
_N
GND 5 17 GND
P5V 6 18 GND
GND 7 19 GND
PWRGD_PS_PW
ROK
8 20 NC
P5V_STBY_PSU 9 21 GND
P12V_IN 10 22 P5V
P12V_IN 11 23 P5V
P3V3 12 24 P5V
PWR2: 8-pin CPU Power Connector
Signal Pin Pin Signal
GND 1 5
VCC12_P0_CPU
GND 2 6
VCC12_P0_CPU
GND 3 7
VCC12_P0_CPU
GND 4 8
VCC12_P0_CPU
PWR3: 8-pin DIMM/PCIE Power Connector
Signal Pin Pin Signal
GND 1 5 DIMM_12V_IN
GND 2 6 DIMM_12V_IN
GND 3 7
P12V_4
GND 4 8
P12V_4
PWR4: 4-pin PCIE Power Connector
Signal Pin Pin Signal
GND 1 3 P12V_IN
GND 2 4 P12V_IN
