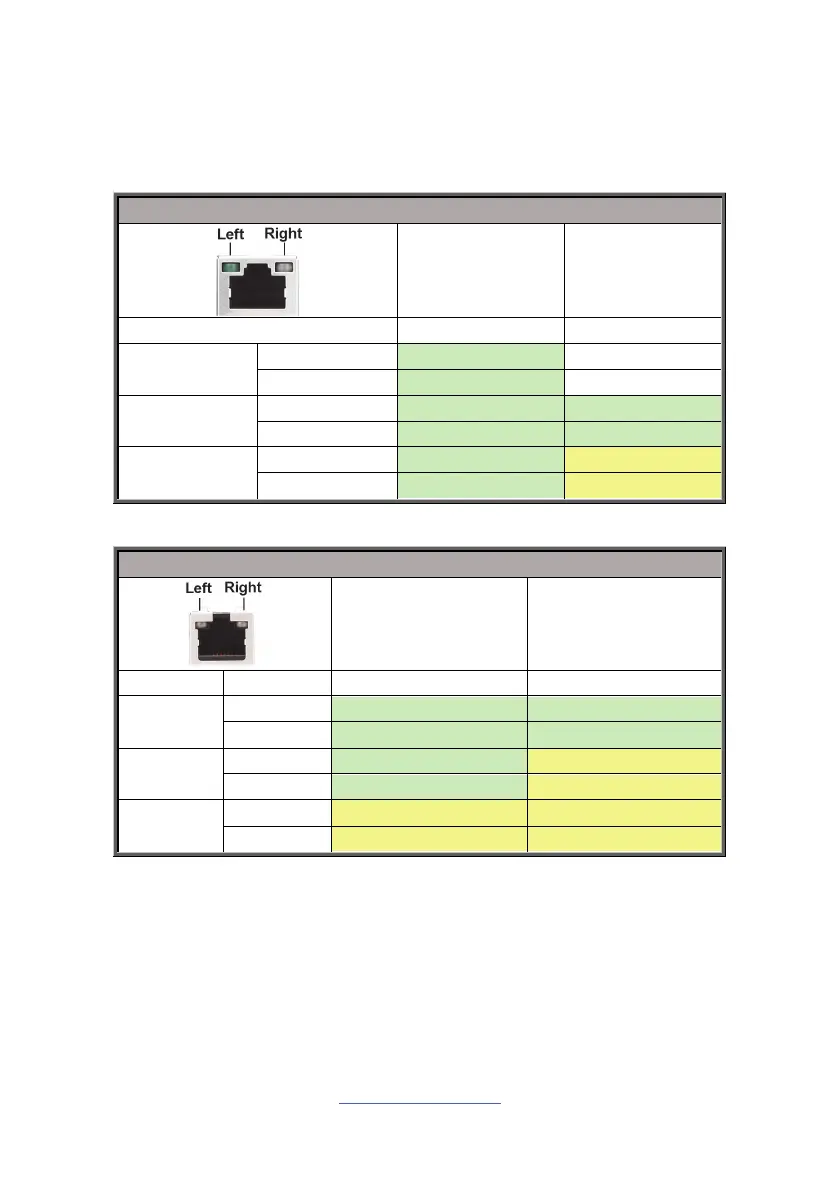

Onboard LAN LED Color Definition
he four (4) onboard Ethernet ports have green and Amber LEDs to indicate LAN
status. The chart below illustrates the different LED states.
I210 10 Mbps /100 Mbps /1Gbps Link/Activity LED Scheme
Left LED Right LED
No Link OFF OFF
10 Mbps
Link Green Solid On
OFF
Active Green Blinking
OFF
100 Mbps
Link Green Solid On Green Solid On
Active Green Blinking Green Solid On
1Gbps
Link
Green Solid On
Amber Solid On
Active
Green Blinking
Amber Solid On
X550 100 Mbps /1000 Mbps /10Gbps LAN Link/Activity LED Scheme
Left LED
(Link/Activity)
Right LED
(Speed)
No Link OFF OFF
100 Mbps
Link
Solid Green Solid Green
Active Blinking Green Solid Green
1000 Mbps
Link
Solid Green Solid Yellow
Active Blinking Green Solid Yellow
(10Gbps)
Link
Solid Yellow Solid Yellow
Active Blinking Yellow Solid Yellow
S5652AGM3NRE-2T
(2) 10GbE LAN from Intel X550 (LAN1, LAN2)
(1) 1GbE LAN from Intel I210 (LAN4)
(1) IPMI port from Realtek RTL8211F for server management (LAN3).
S5652AGMNRE
(1) 1GbE LAN from Intel I210 (LAN2)
(1) IPMI port from Realtek RTL8211F for server management (LAN1).
