2.10 Installing the M.2 standoff and M.2 Card

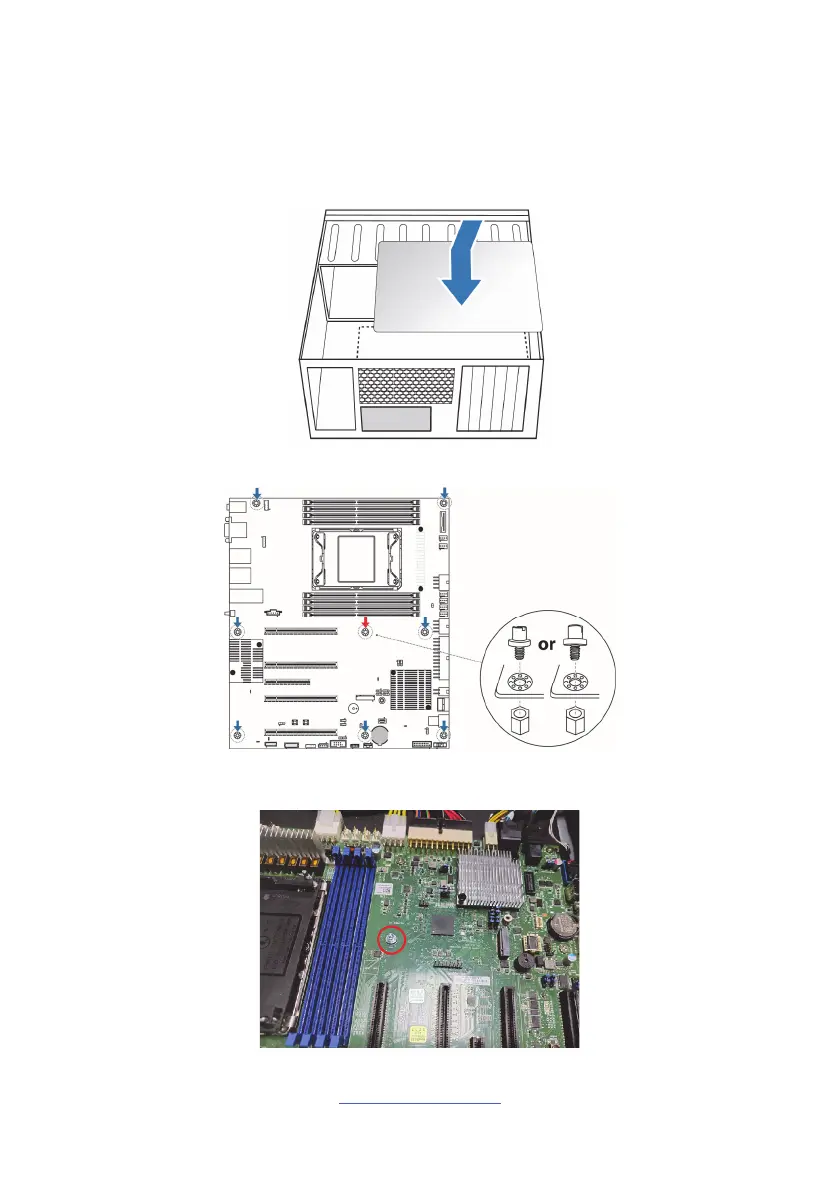

Follow these instructions to install standoff onto the S5652.
1. Insert the server board into the chassis.
2. Attach the server board to the chassis by securing the standoff (marked with
the red arrow) on the designated locations.
NOTE: The standoff depends on the chassis type.
