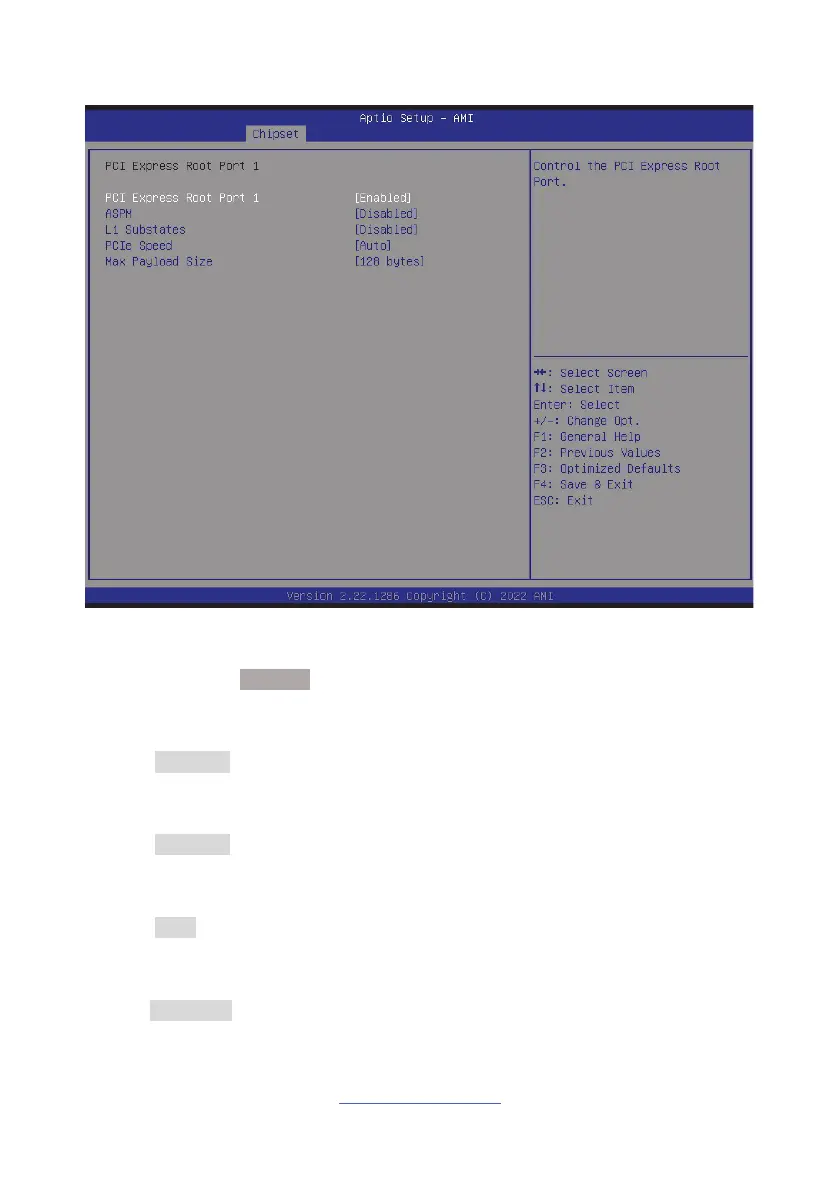

3.5.1.1.1 PCI Express Root Configuration1~16
PCI Express Root Port 1
Control the PCI Express Root Port.
Disabled / Enabled
ASPM
PCI Express Active State Power Management Settings.
Disabled / L1
L1 Substates
PCI Express L1 Substates settings.
Disabled / L1.1 / L1.2 / L1.1 & L1.2
PCIe Speed
Configure PCIe Speed
Auto / Gen1 / Gen2 / Gen3
Max Payload Size
Set Maximum TLP payload size
128 bytes / 256 bytes
