159
Hot Plug
Designates this port as Hot Pluggable.
Enabled / Disabled
Spin Up Device
If enabled for any of ports Staggered Spin Up will be performed and only the drives
which have this option enabled will spin up at boot. Otherwise all drives spin up at
boot.
Enabled / Disabled
SATA Device Type
Identify the SATA port is connected to Solid State Drive or Hard Disk Drive.
Hard Disk Drive / Solid State Drive

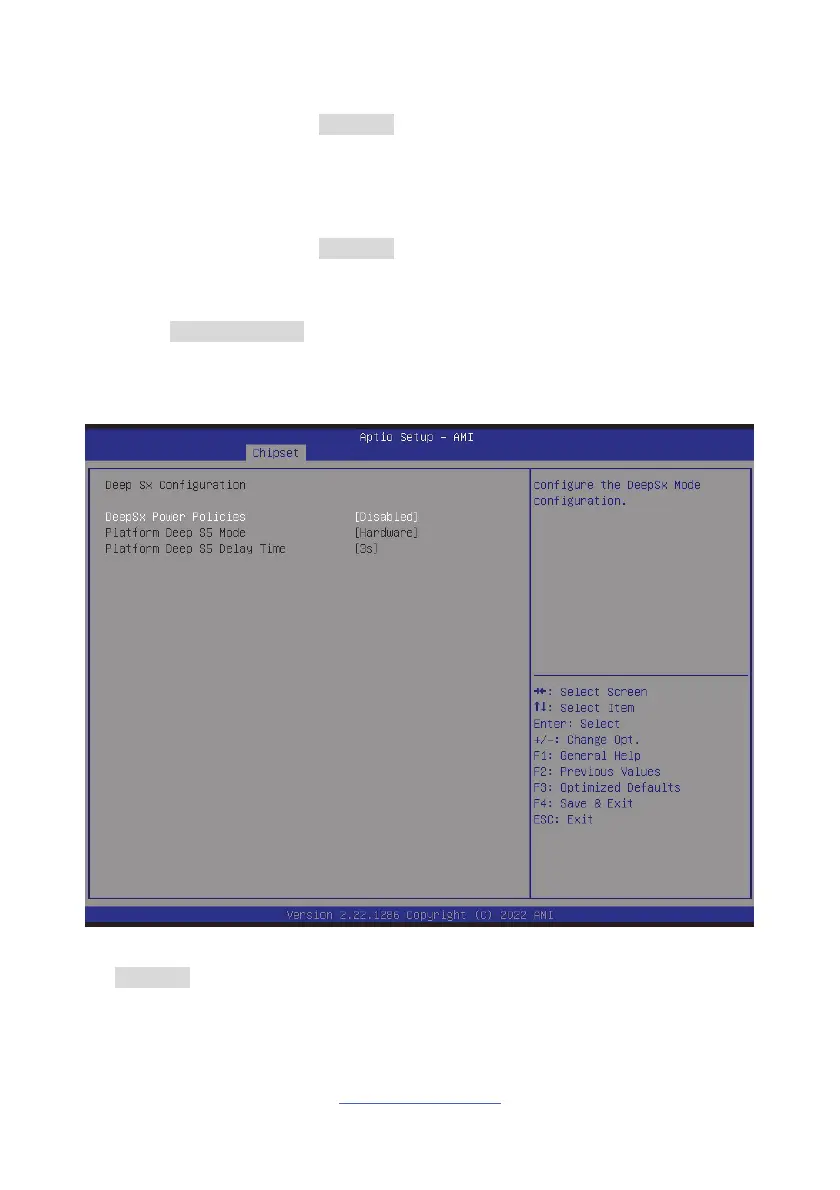

3.5.1.3 Deep Sx Configuration
DeepSx Power Policies
Configure the DeepSx Mode configuration.
Disabled / Enabled in S5 / Enabled in S4-S5 / Enabled in S3-S4-S5
NOTE: When the DeepSx Power Policies is set to Enabled in S5/S4-S5/S3-S4-S5,
the following items will be available to set up.
