35

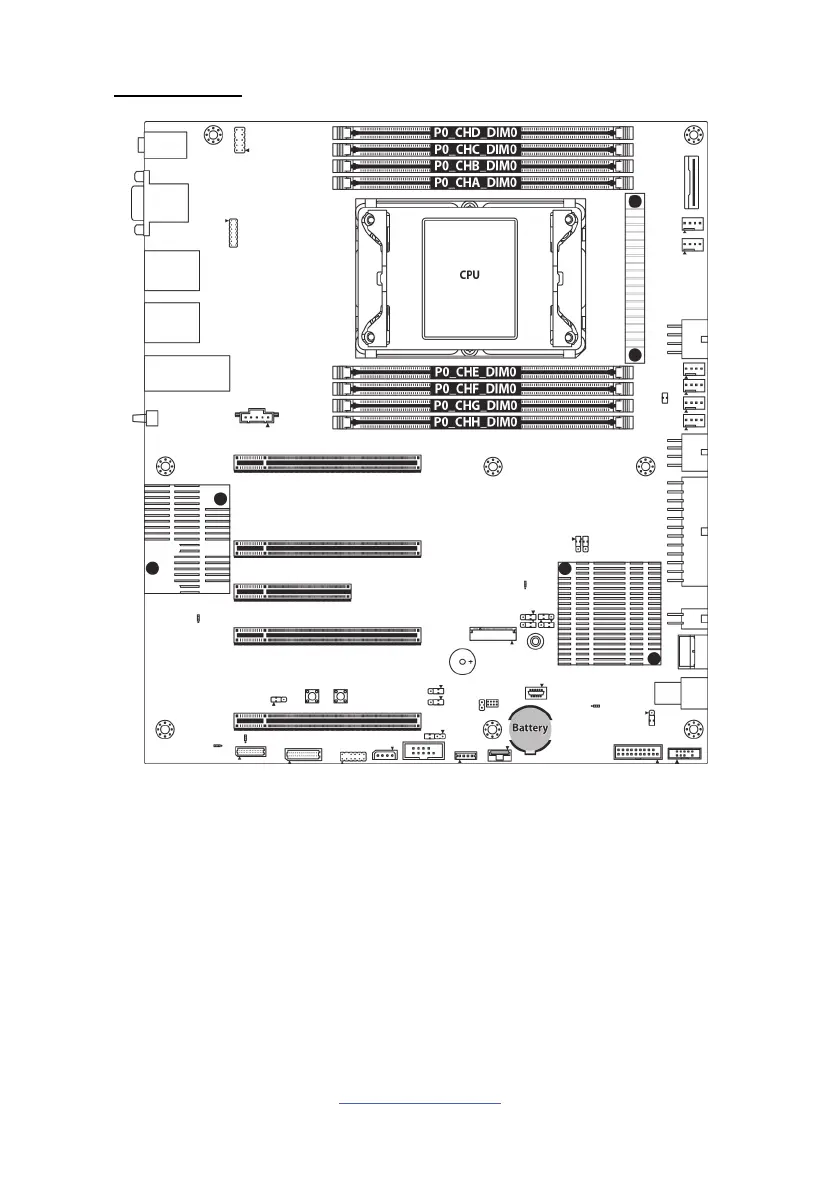

DIMM Location
 (8) DDR5 DIMM slots supports
 (1) DIMM slots per channel
 (8) memory channels per CPU
 DDR5 4800 MHz (1DPC) / 4400MHz (2DPC) - 4th Gen. / DDR5 5600 MHz
(1DPC) / 4400MHz (2DPC) - 5th Gen.
 All installed memory will be automatically detected. No jumpers or settings need
to be changed for memory detection.
 All memory must be of the same type and density. Different memory types
can NOT be mixed and matched on the same motherboard.
