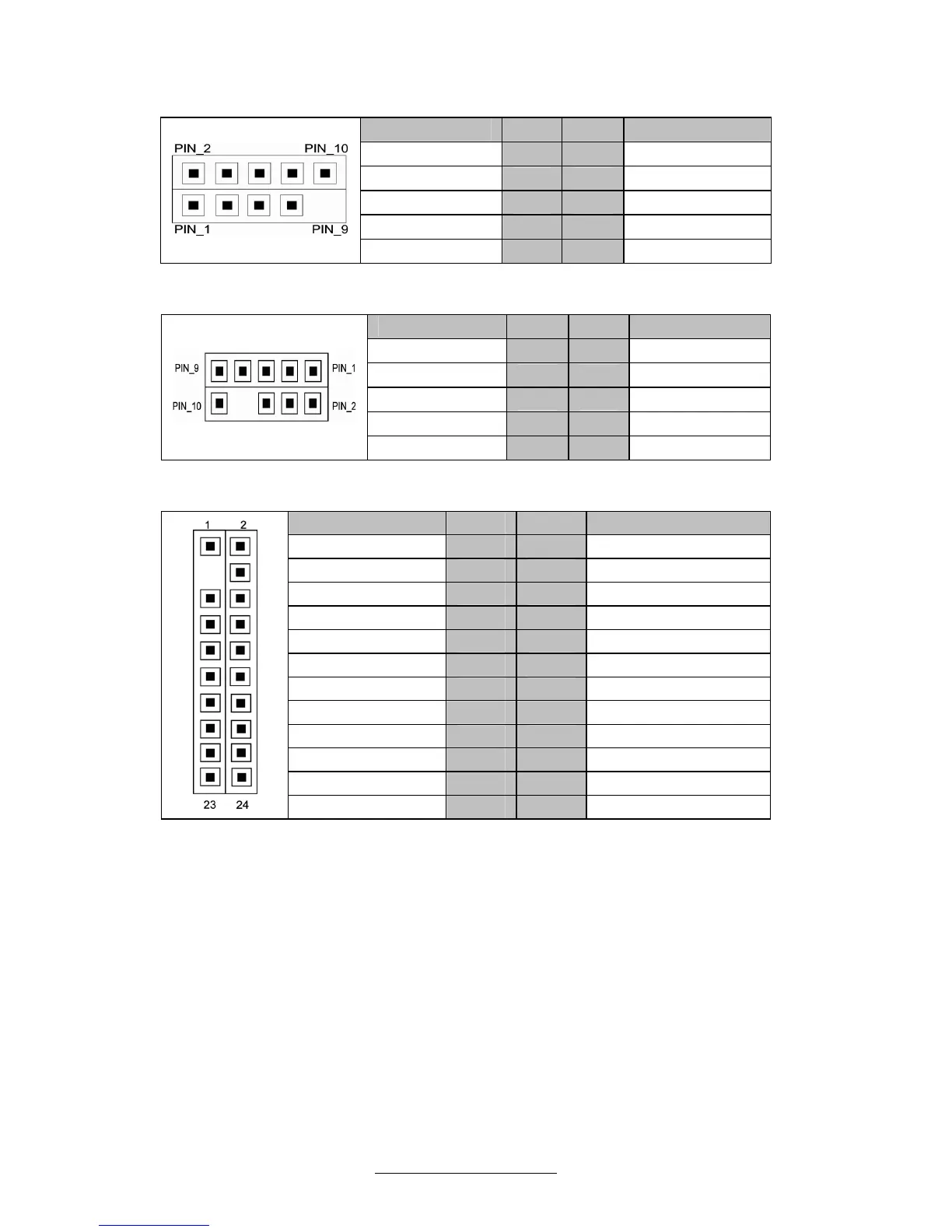

J19/J20: Front USB Header
Signal Pin Pin Signal
+5V
1 2
+5V
USB DATA1-
3 4
USB DATA2-
USBDATA1+
5 6
USBDATA2+
GND
7 8
GND
Key
9 10
GND
J25: Front Panel Audio
Signal Pin Pin Signal
MIC2-L
1 2
GND
MIC2-R
3 4
FP_Present
LINE2-R
5 6
MIC2-JD
FP IO Sense
7 8
Key
LINE2-R
9 10
LINE2-JD
J35: Front Panel Header
Signal Pin Pin Signal
PW_LED+
1 2
FP_PWER(3.3V)
KEY
3 4
ID_ LED+
PW_LED-
5 6
ID_ LED-
HD_ LED+
7 8
FAULT_ LED-
HD_ LED-
9 10
FAULT_ LED-
PW_SW#
11 12
LAN1_ACTLE+
GND
13 14
LAN1_ACTLE-
RST_SW#
15 16
SDA
GND
17 18
SCL
SYS_ID_SW#
19 20
INTRUDER#
GND
21 22
LAN2_ACTLED+
NMI_SW#
23 24
LAN2_ACTLED-
