18

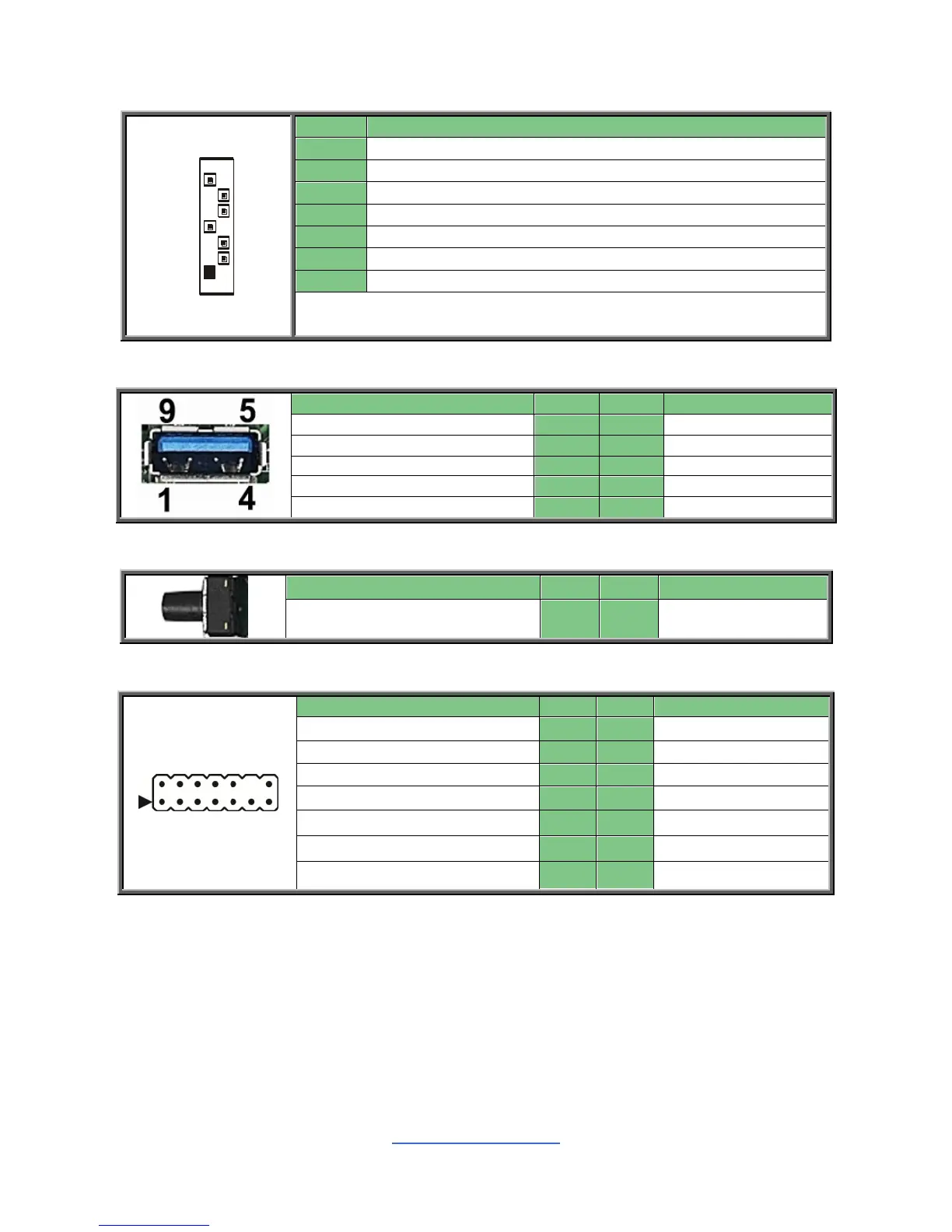

SSATA4/SSATA5: sSerial Advanced Technology Attachment Gen3(sSATA)
7
1
Name
TYPE
S1
GND
S2
SATA TX DP
S3
SATA TX DN
S4
GND
S5
SATA RX DN
S6
SATA RX DP
S7
GND
Connects to the Serial ATA ready drives via the Serial ATA
cable.
TYPEA_USB3: Vertical (Type_A) USB3.0 Connector
Signal
Pin
Pin
Signal
+5V
1
2
USB2.0_DATA_N
USB2.0_DATA_P
3
4
GND
USB3.0_RX_N
5
6
USB3.0_RX_P
GND
7
8
USB3.0_TX_N
USB3.0_TX_P
9
ID LED_BTN1: Rear IO IDLED Button
Signal
Pin
Pin
Signal
FP_IDLED_BTN_N
1
2
GND
FPIO_VGA3: VGA Header
Signal
Pin
Pin
Signal
GND
1
2
VGA2_5V
GND
3
4
HD_VGA_R
GND
5
6
HD_VGA_G
GND
7
8
HD_VGA_B
GND
9
10
HD_VGA_DAT
VGA_HD_HS
11
12
KEY
VGA_HD_CLK
13
14
HD_VGA_VS
