20

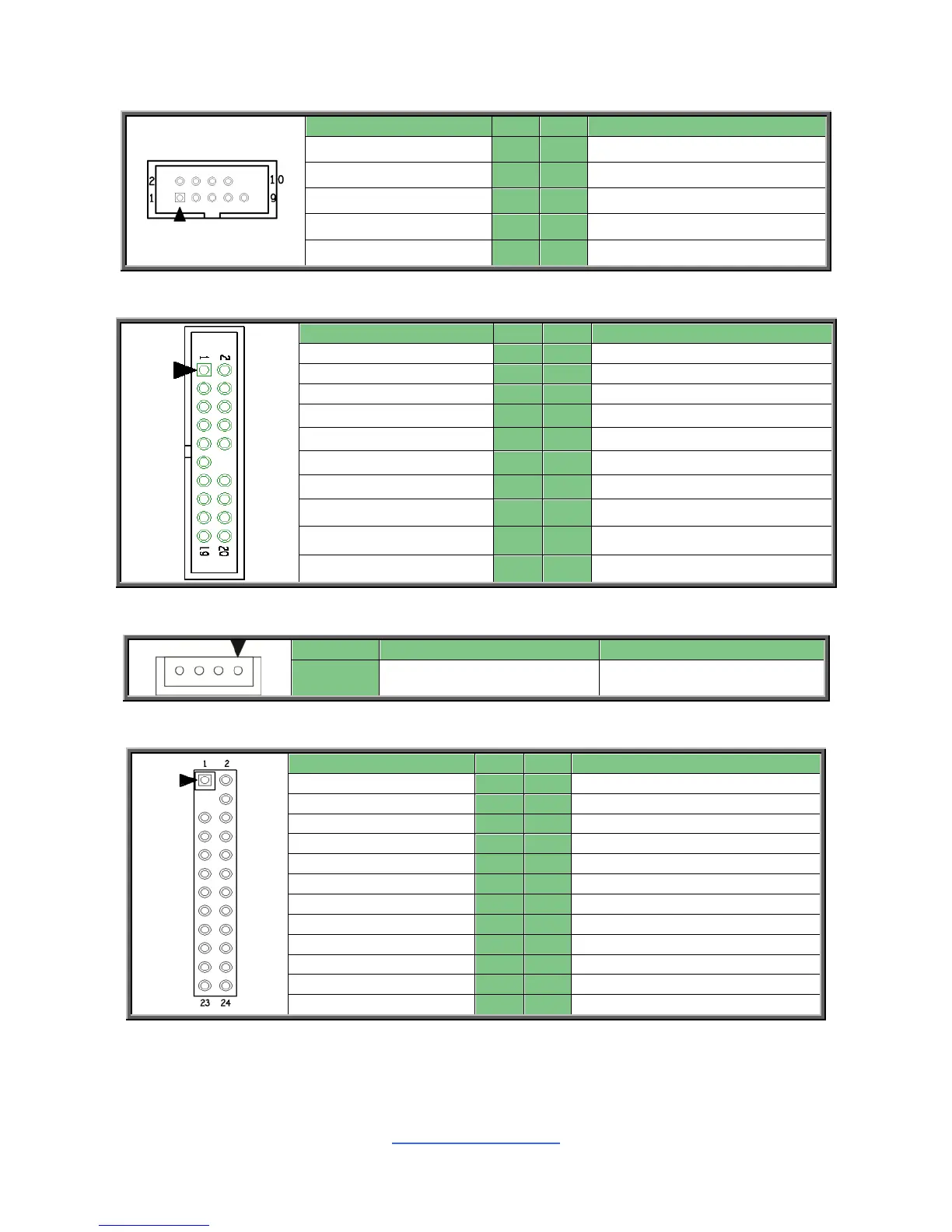

HD_COM2: COM Port Header
Signal
Pin
Pin
Signal
COM_DCD
1
2
COM_DSR
COM_RXD
3
4
COM_RTS
COM_TXD
5
6
COM_CTS
COM_DTR
7
8
COM_NRI
GND
9
10
KEY
FAN_HD1: FAN Tachometer Header Header
Signal
Pin
Pin
Signal
TACH1
1
2
TACH6
TACH2
3
4
TACH7
TACH3
5
6
TACH8
TACH4
7
8
TACH9
TACH5
9
10
TACH10
GND
11
12
KEY
PWM2
13
14
PWM1
TACH11
15
16
SMB_DATA
TACH12
17
18
SMB_CLK
NC
19
20
PWM3
J51: PCH_SATA_RAID_KEY (HW Key for Intel VROC – NVMe only)
Pin
1
2
Signal
LAN1_LED1_FP+
LAN1_LINK_ACT#
FPIO1: Front Panel Connector
Signal
Pin
Pin
Signal
FP_PW_LED_PW
1
2
FP_PWER (VCC3_Aux)
KEY
3
4
FP_ID_LED_PW
FP_PW_LED_GND
5
6
FP_ID_LED_N
HDD_LED_PW
7
8
BMC_HW_FAULT_N
HDD_ACT_LED_N
9
10
BMC_SYS_FAULT_N
FP_PWR_BTN_N
11
12
LAN0_LED_P
GND
13
14
LAN0_LED_N
FP_RST_BTN_JP_N
15
16
FP_SMB_DAT
GND
17
18
FP_SMB_CLK
FP_IDLED_BTN_N
19
20
FP_INTRUSION_N
SYS_Air_Inlet
21
22
LAN1_LED_P
FP_NMI_BTN_N
23
24
LAN1_LED_N
