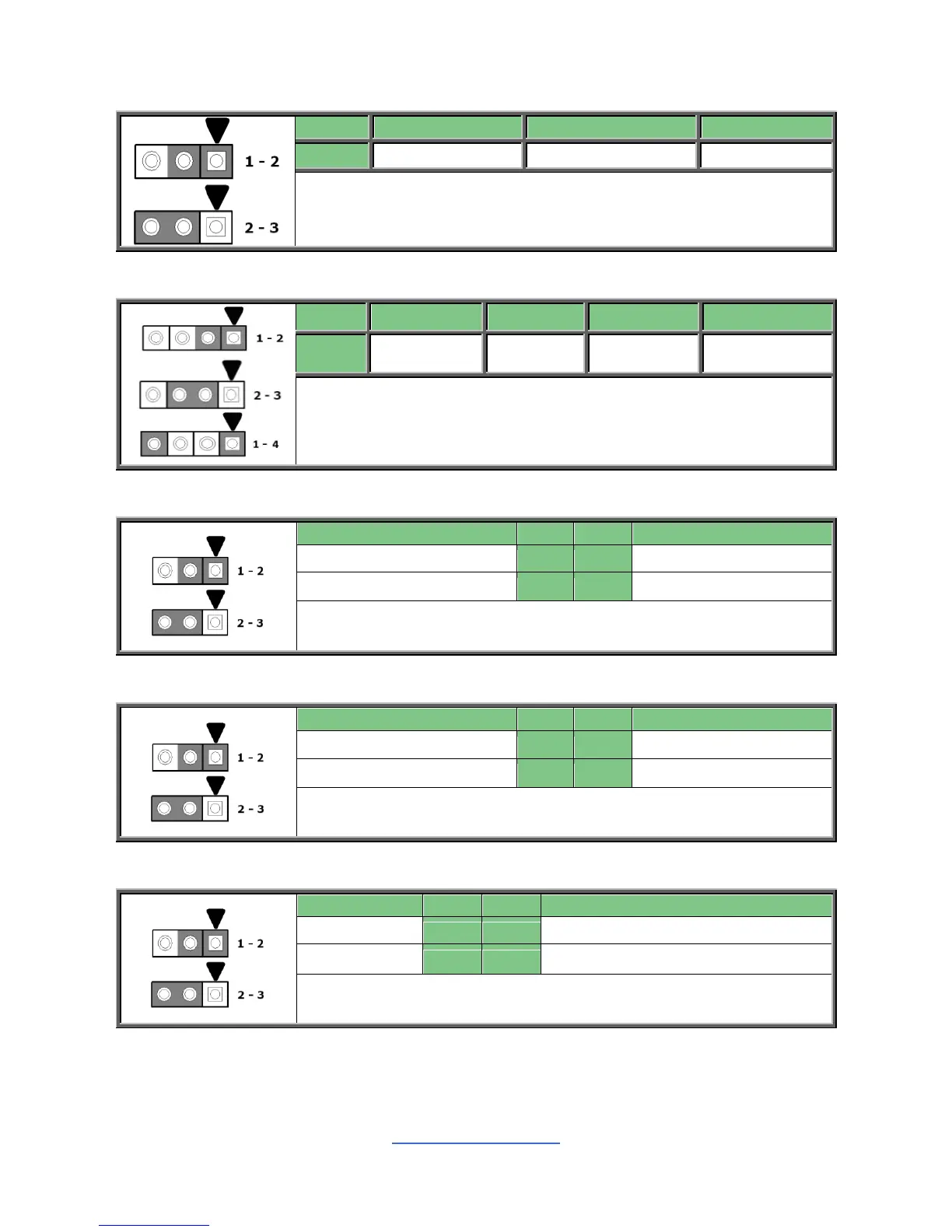

J113: ME Recovery Mode Jumper
Pin
1
2
3
Signal
NC
FM_ME_RCVR_N
1K-Pull down
Pin 1-2 Closed: Normal Mode (Default)
Pin 2-3 Closed: ME In Force Update Mode
J120: BUZZER Disable Jumper
Pin
1
2
3
4
Signal
VCC5
NA
BUZ_1
BUZ_2
Pin 3-4 Closed: Normal Mode (Default)
Pin 2-3 Closed: Disable PC Beep
Pin 1-4 Closed: Use the External Speaker
J118: BMC COM Port debug Jumper
Signal
Pin
Pin
Signal
BMC_COM2_RXD
1
2
RXD_2
BMC_COM5_RXD
3
1-2: BMC COM Port2(Default)
2-3: BMC COMSOLE Port5
J119: BMC COM Port debug Jumper
Signal
Pin
Pin
Signal
BMC_COM2_TXD
1
2
TXD_2
BMC_COM5_TXD
3
1-2: BMC COM Port2(Default)
2-3: BMC COMSOLE Port5
J125: PSU Throttling Jumper
Signal
Pin
Pin
Signal
NC
1
2
PSU_SMB_ALERT_BUFF_N_R
VCC3_Aux
3
1-2: Normal Mode(Default)
2-3: Enable PSU Throttling Function
