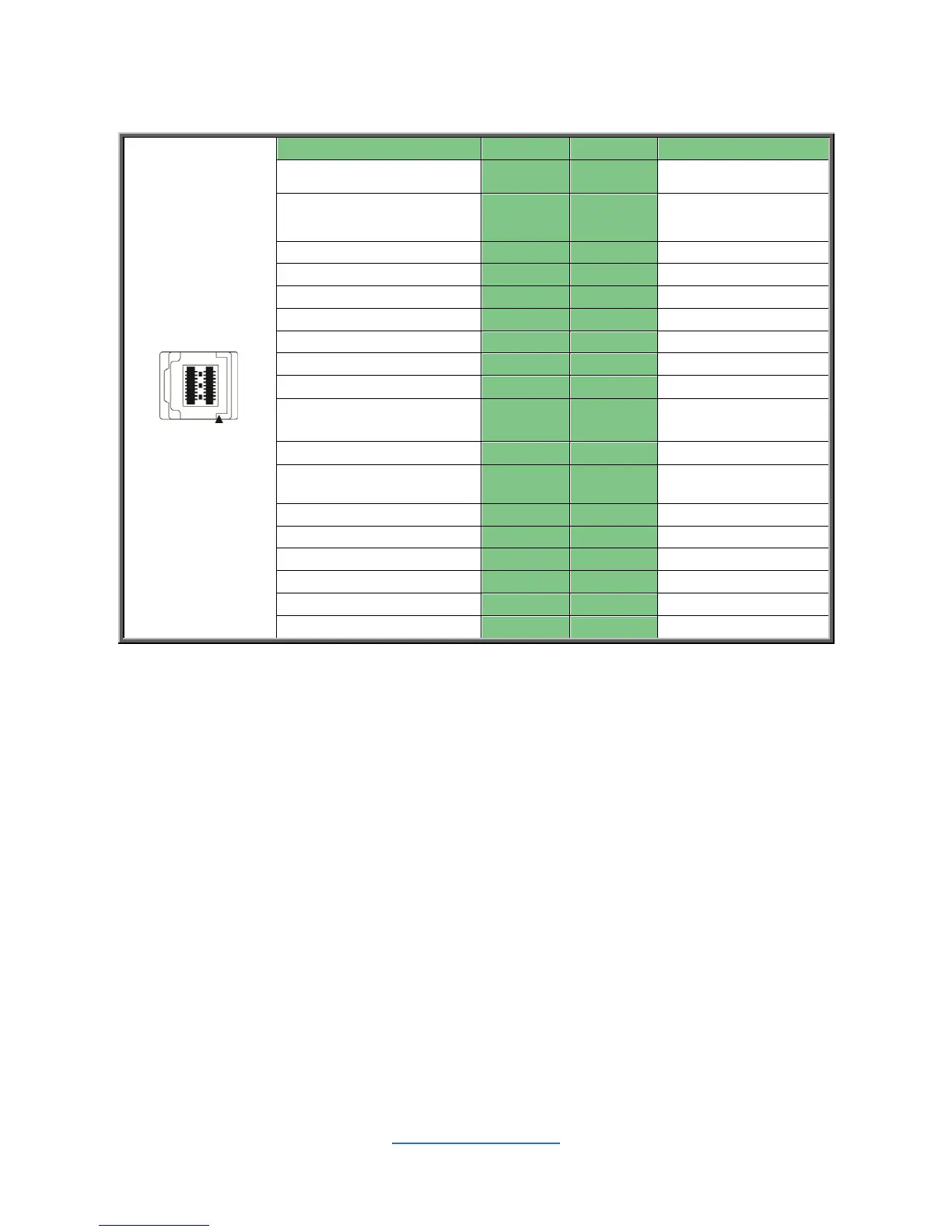

Mini SAS HD Connector: (PCH_SATA_0123/ PCH_SATA_4567/
PCH_SSATA_0123)
Signal
Pin
Pin
Signal
SM_DAT
PIN A1
PIN A2
SGPIO _CLK
GND
PIN A3
PIN A4
SATA6G_RX_P1
SATA6G_RX_N1
PIN A5
PIN A6
GND
SATA6G_RX_P3
PIN A7
PIN A8
SATA6G_RX_N3
GND
PIN A9
PIN B1
GND
SGPIO _LOAD
PIN B2
PIN B3
GND
SATA6G_RX_P0
PIN B4
PIN B5
SATA6G_RX_N0
GND
PIN B6
PIN B7
SATA6G_RX_P2
SATA6G_RX_N2
PIN B8
PIN B9
GND
SGPIO_SATA_DATA
OUT0
PIN C1
PIN C2
GND
GND
PIN C3
PIN C4
SATA6G_TX_P1
SATA6G_TX_N1
PIN C5
PIN C6
GND
SATA6G_TX_P3
PIN C7
PIN C8
SATA6G_TX_N3
GND
PIN C9
PIN D1
NA
SM_CLK
PIN D2
PIN D3
GND
SATA6G_TX_P0
PIN D4
PIN D5
SATA6G_TX_N0
GND
PIN D6
PIN D7
SATA6G_TX_P2
SATA6G_TX_N2
PIN D8
PIN D9
GND
