TYAN S7106 - Page 33

http://www.tyan.com
33

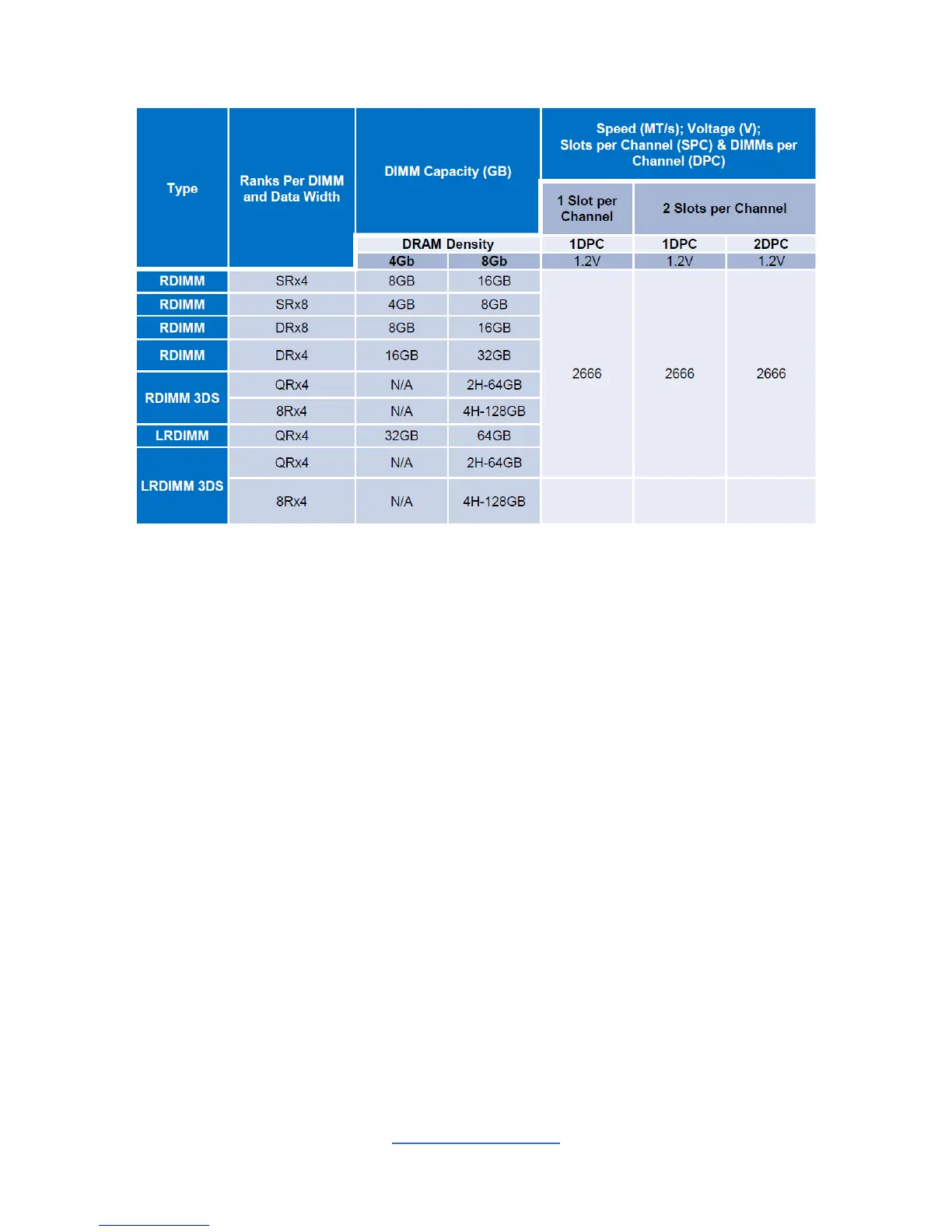

Intel Xeon Skylake Scalable Processors Families Support
NOTE 1: 1DPC => One dimm per channel
NOTE 2: 2DPC => Two dimm per channel
 Physical Ranks are used to calculate DIMM Capacity.
 Supported DRAM Densities are 4Gb, 8Gb.
