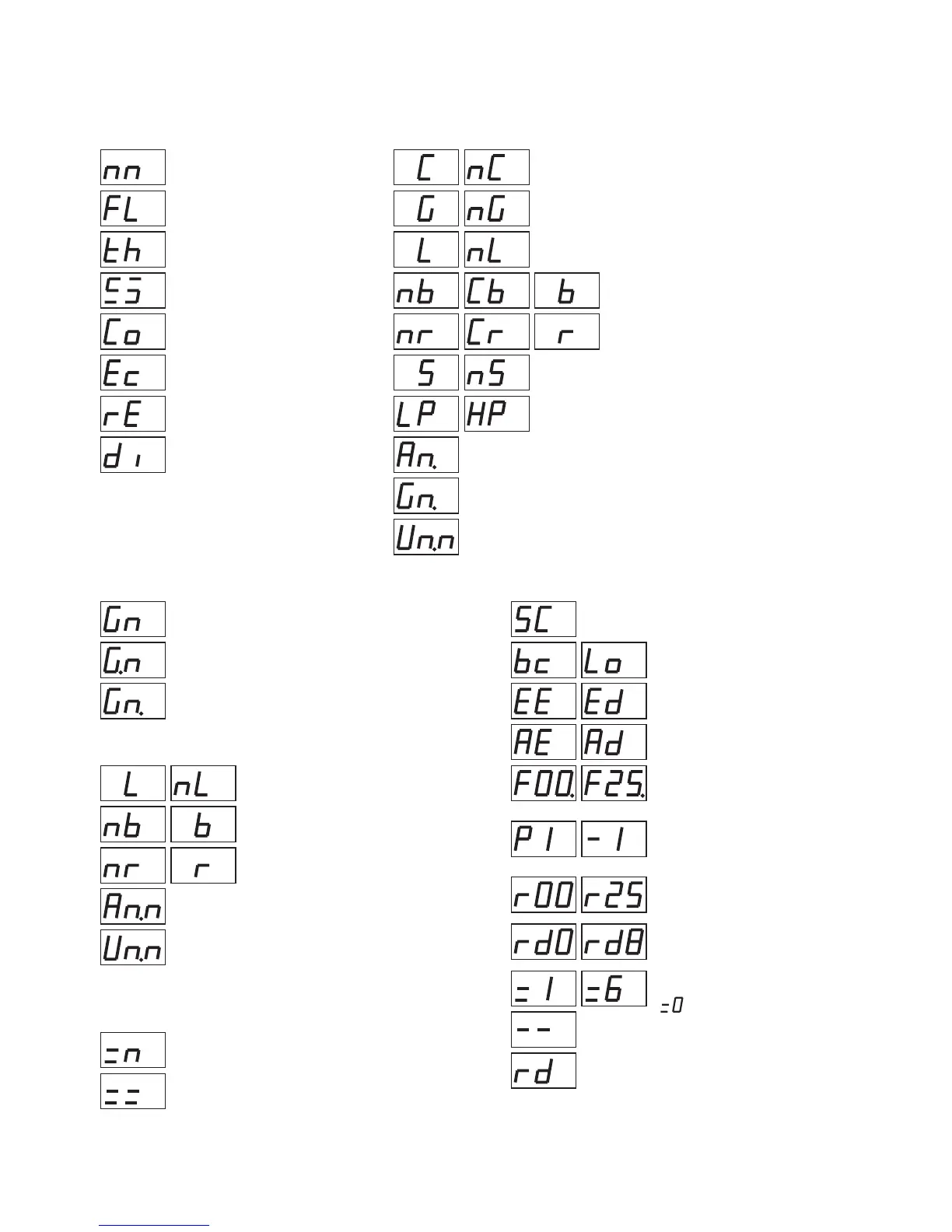

Programming Options and Codes
Zone Programming
Circuit Type
= Disabled
= Zone Number nn
Circuit Type
= Thermal
Circuit Type
= Smoke
Circuit Type
= Combined
Circuit Type
= Flowswitch
Circuit Type
= Residential
Circuit Type
= DBA/Evacuation
(Master board only)
= Callpoint or none
(S, rE only. Enables MCP band)
= Gated or not
(S, Co, rE only)
= Latching or not
nb = nothing calls brigade
Cb = Non residential only calls brig
b = All alarms call brigade
Zone and Zone Mapping Options
S = residential smoke alarm on Zone LED
nS = residential smoke alarm Not on LED
= Low / High Power
(FL, th, Ec only)
= Zone maps to Ancillary
(Ar,A1-A21)*
(Centre decimal on = yes)
= Zone maps to Group
(G1-G8)*
(Centre decimal on = yes)
* for rE zones:
Ar, An, Gn, Unn decimal as follows:
LH decimal on = yes for Smoke
Centre decimal on = yes for MCP
System Configuration Options
System Configuration Menu
Brigade connected
or Local Mode (Master)
Evac Monitor
enabled / disabled
Ancil Override (Global)
enabled / disabled
Flowswitch Delay (Global)
(note decimal point)
0./5./10./15./20./25. sec
Adjust Batt Low Volts
in 0.1V steps (Master only)
P3 = 12.2V + 0.3V
-2 = 12.2V - 0.2V
Residential Delay (per board)
1 - 25 (x 10) sec
0 = latch
Number of RZDUs
rd0 = none
rd1 - rd8 are valid
Exit Programming Mode (Master only)
Reload Defaults
nr = nothing rings bells
Cr = Non residential only rings bells
r = All alarms ring bells
Group Programming
Group Options
= Latching or not
nr = Doesn't ring bells
r = Rings bells
nb = Doesn't call brigade
b = Calls brigade
= Group maps to Ancillary nn (Ar, A1-A21)
(Centre decimal on = yes)
= Group n (G1 - G8)
= Group n is mapped from a zone
(LH decimal on = yes)
= Group n is mapped to an output
(Centre decimal on = yes)
= Zone maps to Universal Variable (U1-U16)*
(Centre decimal on = yes)
= Group maps to Universal Variable (U1-U16)
(Centre decimal on = yes)
Slave Displays
Slave enters programming mode
at board number program position
Displayed at slave when program
changes are being saved
Number of boards in System
or board number if Slave
to disable (Slave)
