LT0312 v1.03 4 July 2003
Page 11

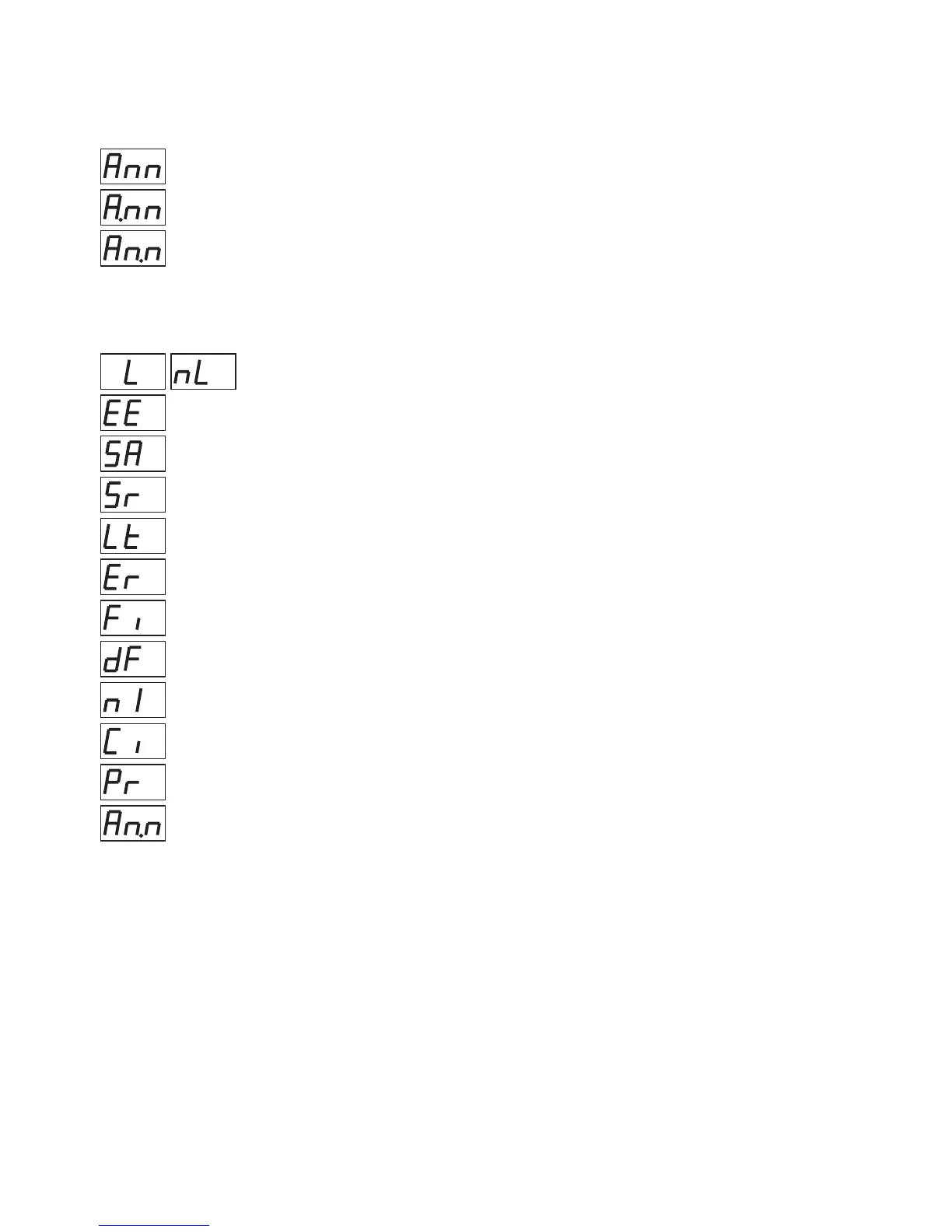

Programming Options and Codes
= Forced on by External Evac Switch?
(Centre decimal on = yes)
Ancillary Output Programming
= Ancillary nn (Ar, A1 - A21)
Ancillary Output Options
= Latching or not
= Ancillary nn is mapped from a zone
(LH decimal on = yes)
= Ancillary nn has programmable
options selected
(Centre decimal on = yes)
= Forced off by Silence Alarms Switch?
(Centre decimal on = yes)
= Forced off by Services Restore?
(Centre decimal on = yes)
= Forced on by Lamp Test?
(Centre decimal on = yes)
= Follow Evacuation (bells) Relay?
(Centre decimal on = yes)
= Follow Common Fire?
(Centre decimal on = yes)
= Follow Common Defect?
(Centre decimal on = yes)
= Follow Normal?
(Centre decimal on = yes)
= Follow Charger Inhibit (long only)?
(Centre decimal on = yes)
= Follow Panel Reset?
(Centre decimal on = yes)
Ancillary Output Defaults
Ancil Relay (Ar) ON for Com Fire, Lamp Test
Ancil 1 (A1) ON for Zone 1, Lamp Test (Z1-)
Ancil 2 (A2) ON for Zone 2, Lamp Test (Z2-)
Ancil 3 (A3) ON for Zone 3, Lamp Test (Z3-)
Ancil 4 (A4) ON for Zone 4, Lamp Test (Z4-)
Ancil 5 (A5) ON for Zone 5, Lamp Test (Z5-)
Ancil 6 (A6) ON for Zone 6, Lamp Test (Z6-)
Ancil 7 (A7) ON for Zone 7, Lamp Test (Z7-)
Ancil 8 (A8) ON for Zone 8, Lamp Test (Z8-)
Ancil 9 (A9) ON for Zone 9, Lamp Test (Z9-)
Ancil 10 (A10) ON for Zone 10, Lamp Test (Z10-)
Ancil 11 (A11) ON for Zone 11, Lamp Test (Z11-)
Ancil 12 (A12) ON for Zone 12, Lamp Test (Z12-)
Ancil 13 (A13) ON for Zone 13, Lamp Test (Z13-)
Ancil 14 (A14) ON for Zone 14, Lamp Test (Z14-)
Ancil 15 (A15) ON for Zone 15, Lamp Test (Z15-)
Ancil 16 (A16) ON for Zone 16, Lamp Test (Z16-)
Ancil 17 (A17) ON for Normal, Lamp Test (NORM-)
Ancil 18 (A18) ON for Com Defect, Lamp Test (DEF-)
Ancil 19 (A19) ON for Com Fire, Lamp Test (FIRE-)
Ancil 20 (A20) ON for Com Defect, Lamp Test
Ancil 21 (A21) ON for Normal, Lamp Test
= Ancillary is mapped to by Universal Variable
(Centre decimal on = yes)
