Tyco FP1600 User Manual

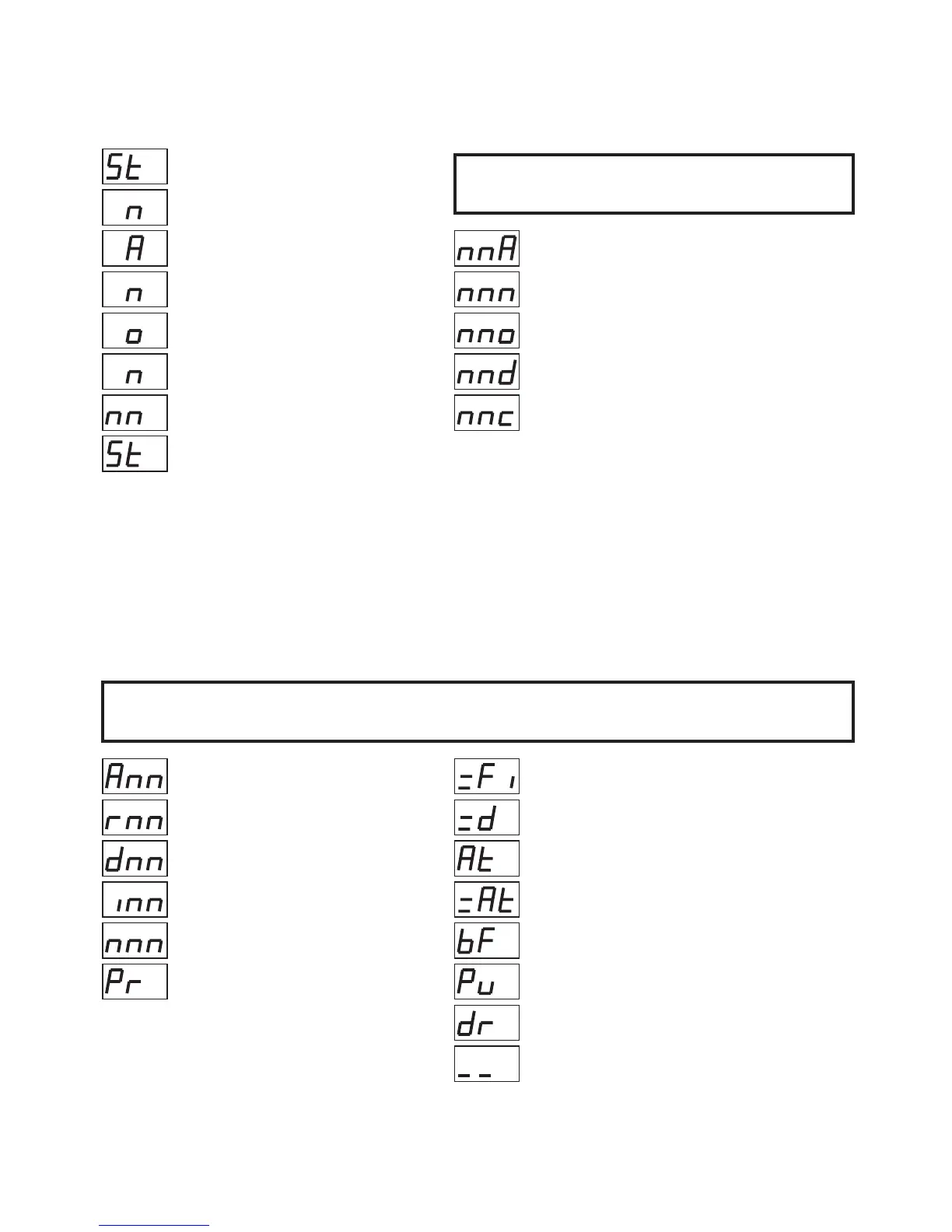

Self Test Mode Operation
= Checking Zone nn
individually for Short Circuit
= Checking all zones
return to normal
= If waiting for RDZUs
or slaves to finish
= Checking all zones
go into open circuit
= Fire from Slave Board
(Master only)
= Defect on Slave Board
(Master only)
= Auto Test Fail (this board only)
= Auto Test Fail on Slave Board
(Master only)
= Checking zones
go into Alarm
= Checking all zones
are normal
= Checking all zones
return to normal
= Self Test Mode running
(flashes)
Self/Auto Test Failure Codes
= Panel Reset performed
Immediately after Pr,
all zone abnormals
are logged to history
= Zone nn Normal
= Zone nn failed to go into alarm
History Events
= Zone nn failed to go back to normal
= Zone nn failed to go open circuit
= Zone nn failed to go short circuit
= Zone nn failed to stay normal while
another zone was being tested
= Zone nn Defect
= Zone nn Residential
Smoke Alarm
= Zone nn Isolated
= Zone nn Alarm
(MCP if Residential)
Press SELECT to step backwards through history (last 15 events)
To exit history, press any other button or close door. (History Mode will time out after 8 sec)
Display Codes
LT0312 v1.03 4 July 2003
Page 7
= Battery Very Low Fire
= System Power Up
= Watchdog Reset
= Last Event Displayed
Self Test Fail sounds buzzer (four beeps)
and displays failure mode code(s) as follows
Failure mode displays on board(s)
that had failure(s)
Self Test Pass returns to <base>
