Tyco IR6003/7 - Detector Mounting Bracket

5. Installation

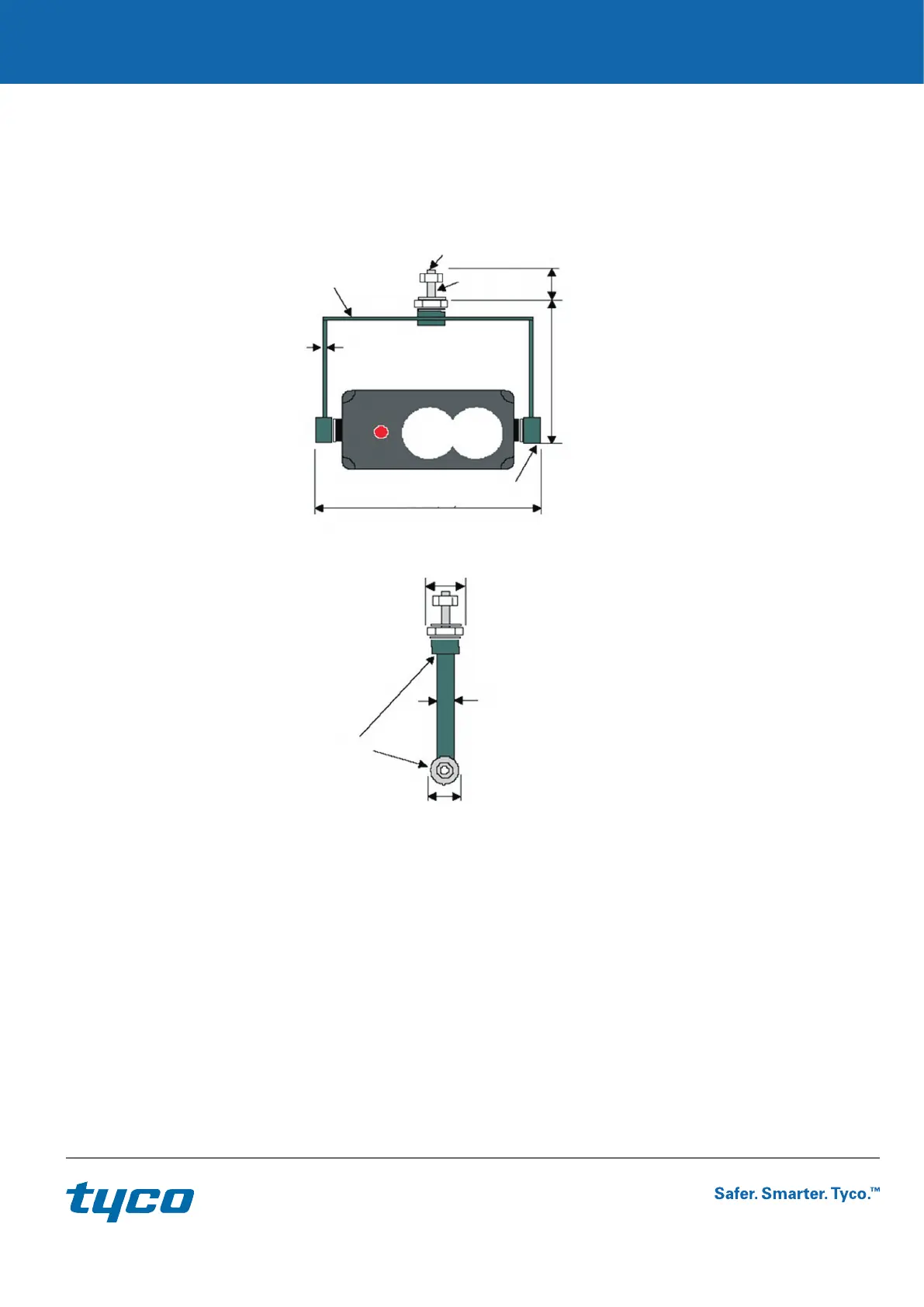

5.2 Detector Mounting Bracket
We recommend the use of the 01-33-12, U-Bracket, to mount the IR Detector and to provide alignment facilities. The bracket is
supplied with all appropriate hardware to affix the oil mist detector to it.
U-Bracket frame
5 mm
RADIAL PIVOT
10 mm clearance required
35 mm
160 mm
LATERAL PIVOT
220 mm (Max)
Use a 10 mm Box
Spanner To Adjust
19 mm
30 mm
25 mm
