5. Installation

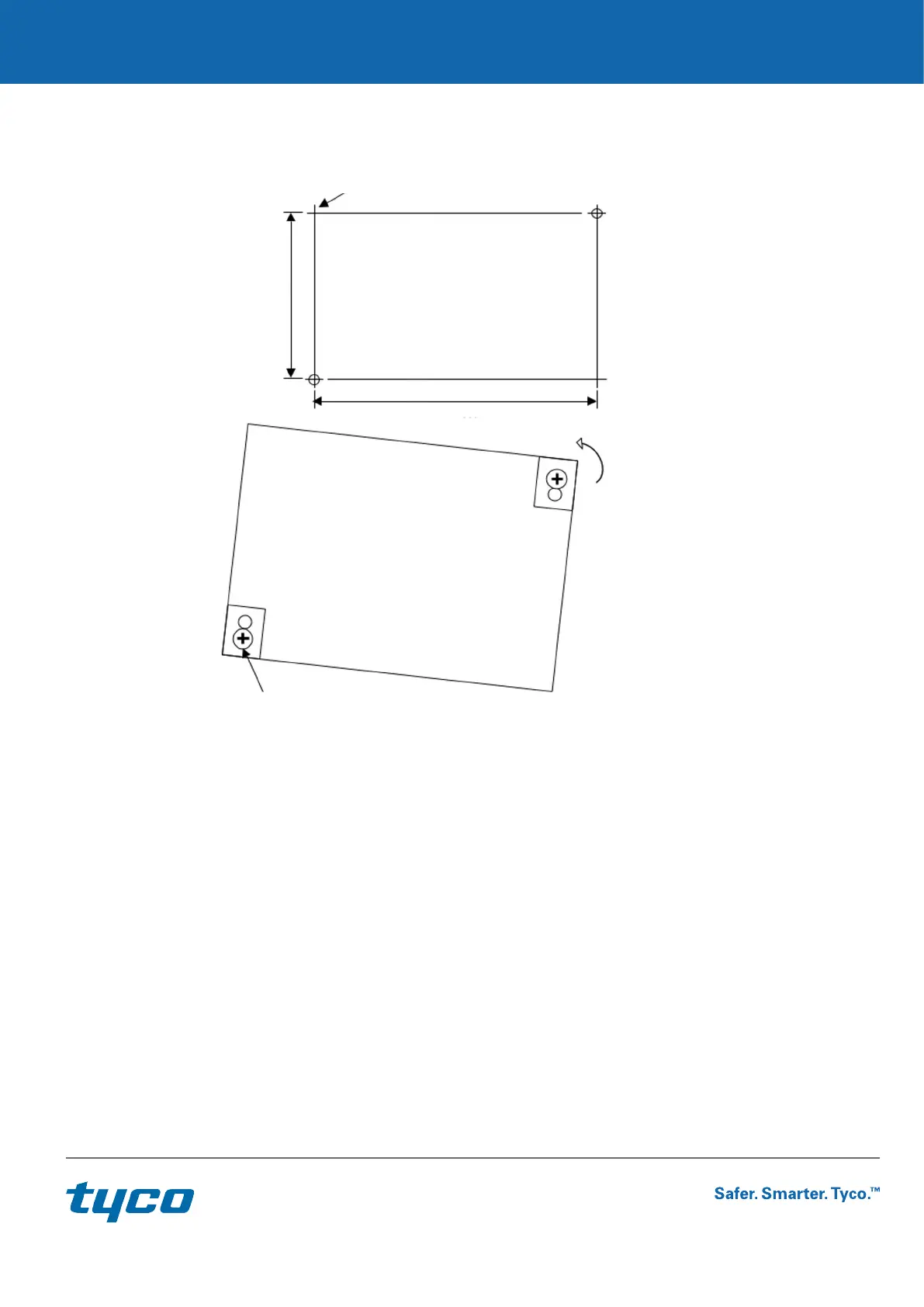

5.5.2 Screw Mounting Details
2-Off M3 tapped
85 mm
50 mm
Twist UIM
Clockwise
2-Off M3 x 16 mm
Mounting screws
Screw 2 off M3 x 16 mm long screws 3 mm into the mounting holes. Feed the P-UIM over the mounting screws as shown above
and twist clockwise to align. Tighten the mounting screws to lock the P-UIM in place.
9 / 12

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Tyco IR6003/7 and is the answer not in the manual?

Tyco IR6003/7 Specifications

Detector

Electrical IconElectrical
Operating Voltage24 V
Quiescent Current25 mA
Alarm Current80 mA max.
Beam Length2 to 30 Metres
Mechanical IconMechanical
DimensionsW165 x H125 x D165 mm
Weight0.96 kg
MaterialNoryl GTX Grade 810
Environmental IconEnvironmental
Operating Temperature-10 to +55°C
Housing ProtectionIP65
BASEEFA certificationEex ib IIB T5

P-UIM

Electrical IconElectrical
Power Consumption24 V dc ±20%
Quiescent100 mA
Alarm/Fault130 mA
Detector Supplyup to 80 mA
Alarm Contacts24 V 1A (NO Volt Free)
Mechanical IconMechanical
DimensionsW100 x H70 x D112 mm
Weight0.28 kg
MaterialLight-grey Polycarbonate
Environmental IconEnvironmental
Operating Temperature0 to +55°C
Storage Temperature-10 to +60°C
Humidity0 to 90% RH (non-condensing)
