3-1. DISASSEMBLY
Separate the axle bracket and the rear transmission from each other and then remove the hydraulic cylinder
case.referring to paragraph 4 of SECTION 3. SEPARATION OF MAJOR COMPONENTS in Chapter 2.

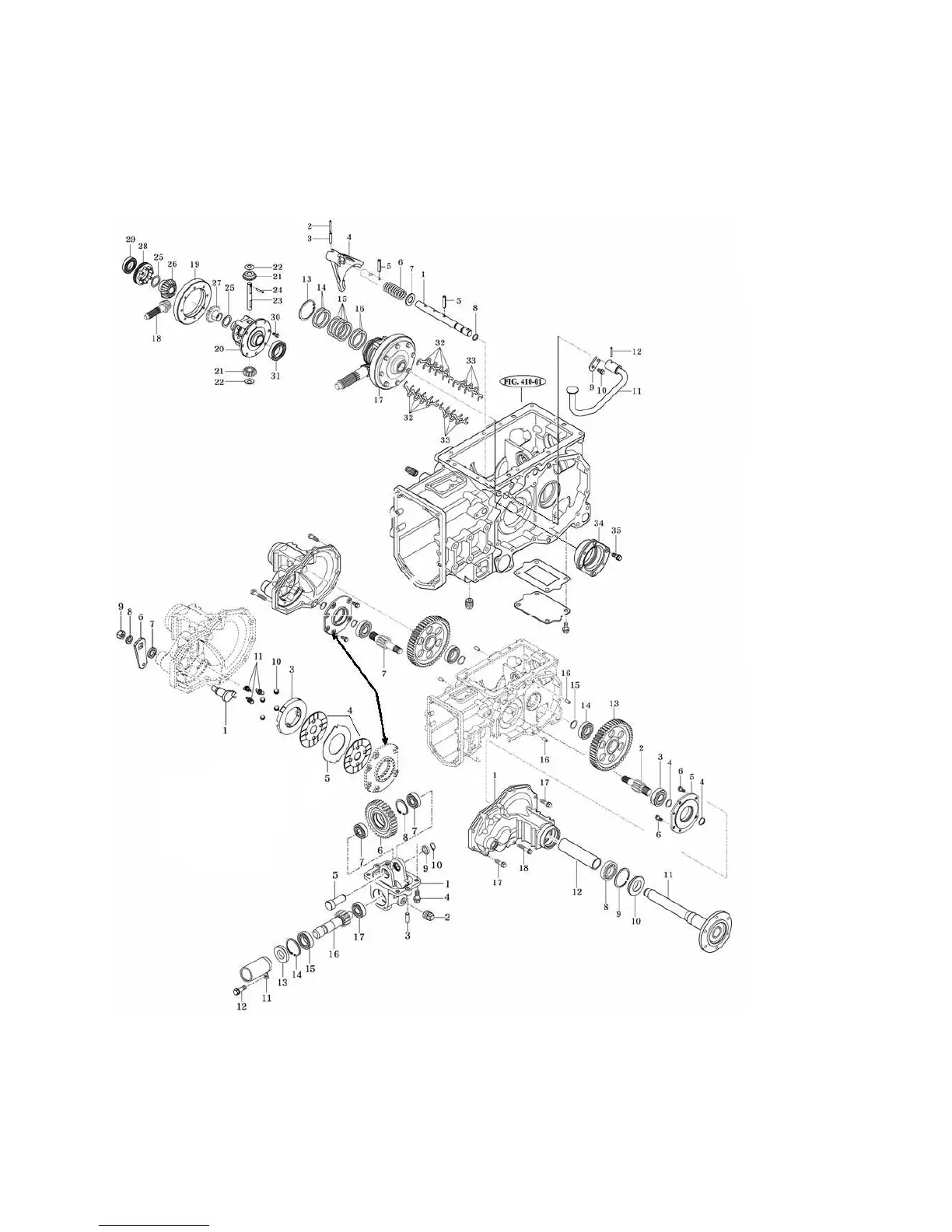

(1) Ring gear, Drive pinion, and related parts.
1.CAM
2.METAL ,BRAKE LH
3.METAL ,BRAKE RH
4.PLATE COMP , DISC
5.PLATE , SEPARATE
6.ARM , BRAKE
7.SEAL , OIL/D
8.WASHER , SPRING
9.NUT , HEX/1
10.BALL , STEEL
11.SPRING , RETURN
8.O-RING , P
9.PLATE , STOP
10.BOLT , HEX/S
11.PEDAL COMP , DIFF LOCK
12.PIN , SPRING
13.C-RING , HOLE
14.SHIM , 0.5 (3)
15.SHIM , 0.2 (4)
16.SHIM , 0.1 (3)
17.DIFF ASSY , RR
18.PINION , DRIVE 9T
19.GEAR , BEVEL 55T
20.CASE , DIFF
21.PINION , DIFF 12T
22.COLLAR , PINION THRUST
23.SHAFT , DIFF PINION
24.PIN , SPRING
25.WASHER, THRUST 34X46X1
26.GEAR , BEVEL RH 20T
27.GEAR , BEVEL LH 20T
28.CLUTCH COMP , DIFF LOCK
29.BEARING , BALL
30.BOLT , HEX/S
31.BEARING , BALL
1.SHAFT, DIFF LOCK
2.PIN , SPRING
3.PIN , SPRING
4.FORK , DIFF LOCK
5.PIN , SPRING
6.SPRING
7.WASHER , PLAIN
Fig.5-24
1.CASE, MID PTO
2.PLUG , SQUARE
3.PIN , PARALLEL/A
4.BOLT , HEX/S
5.SHAFT, MID PTO COUNT
6.GEAR , SPUR 32T
7.BEARING , BALL(6203)
8.C-RING , HOLE
9.COLLAR , 17X24X6
10.C-RING , SHAFT
11.CAP COMP, MID PTO SHAFT
12.BOLT , HEX /S
13.SEAL , OIL/D25478
14.C-RING , HOLE
15.BEARING , BALL
(6005)
16.SHAFT , MID PTO
17.BEARING , BALL
(6203)
31.BEARING , BALL
32.SHIM , 0.2 (8)
33.SHIM , 0.1 (6)
34.METAL , DIFF CASE
35.BOLT , HEX/S
1.HOUSING, AXLE 2.SHAFT , WHEEL PINION LH 3.BEARING , BALL
4.C-RING , SHAFT 5.COVER , BRAKE 6.BOLT , HEX/S
7.SHAFT , WHEEL PINION RH 8.BEARING , BALL
9.C-RING , HOLE 10.SEAL , SHAFT 11.SHAFT , WHEEL
12.COLLAR , 51X5X198 13.GEAR , SPUR 71T 14.BEARING , BALL
15.C-RING , SHAFT 16.PIN , PARALLEL/A 17.BOLT , HEX/S
18.BOLT , HEX/S
5-16
