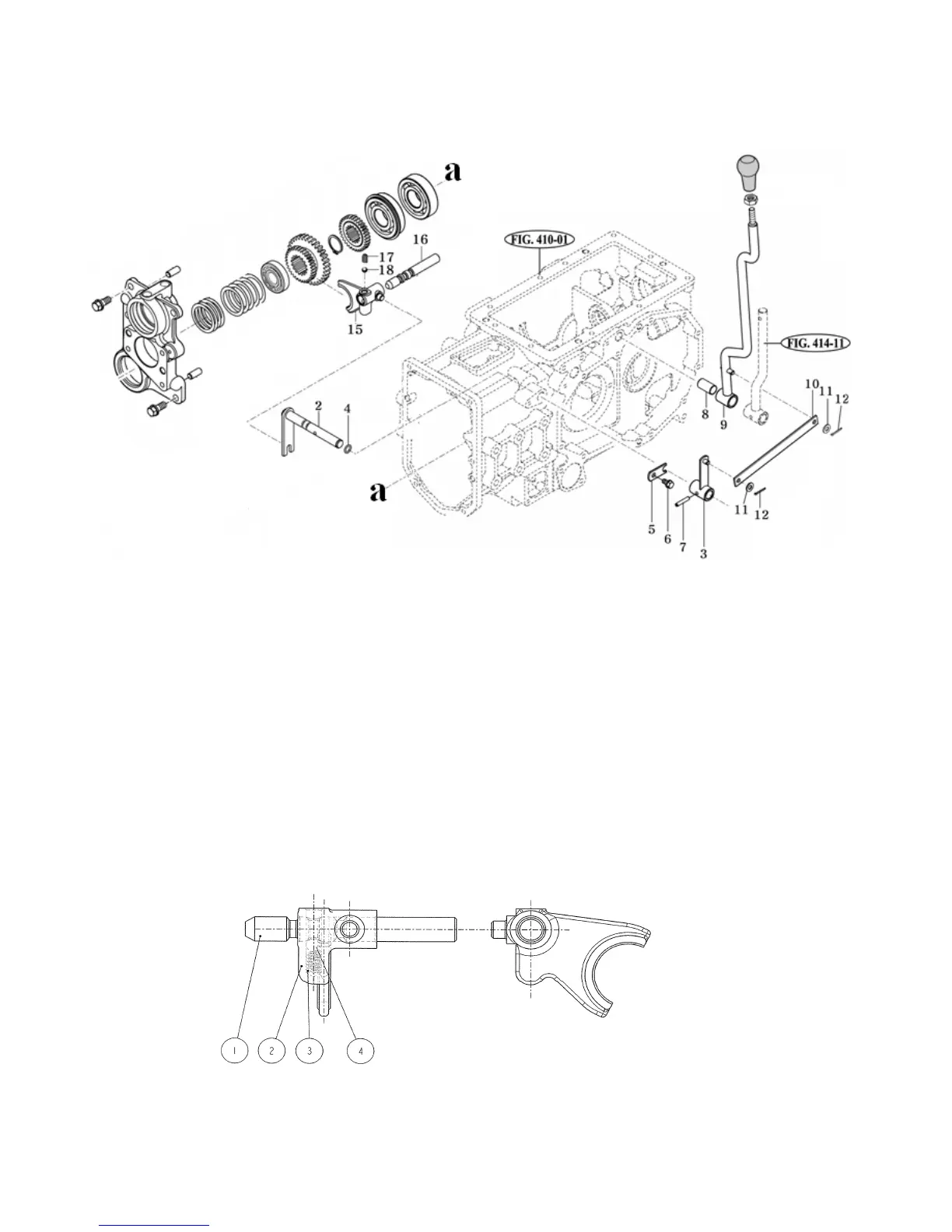

(2) range shifter (Speed range shift) mechanism
Fig.5-38
2. HOOK COMP, RANGE 3. HUB COMP ,RANGE 4. O-RING , P 5. PLATE 6. BOLT , HEX/S
7. PIN , SPRING 8. BUSH , 16X18X33 9. LEVER COMP , RANGE 10. LINK
11. WASHER , PLAIN 12. PIN , SPLIT 13. NUT , HEX FINE/2 14. GRIP COMP , RANGE
15. FORK , RANGE 16. STAY , RANGE 17. SPRING , SHIFTER 18. BALL , STEEL
Note : The O-ring, hook comp and the inner of the pipe should be applied for grease
before being assembled.
Fig.5-39
5-25
