TYM T233 HST User Manual

(4) Rear PTO mechanism

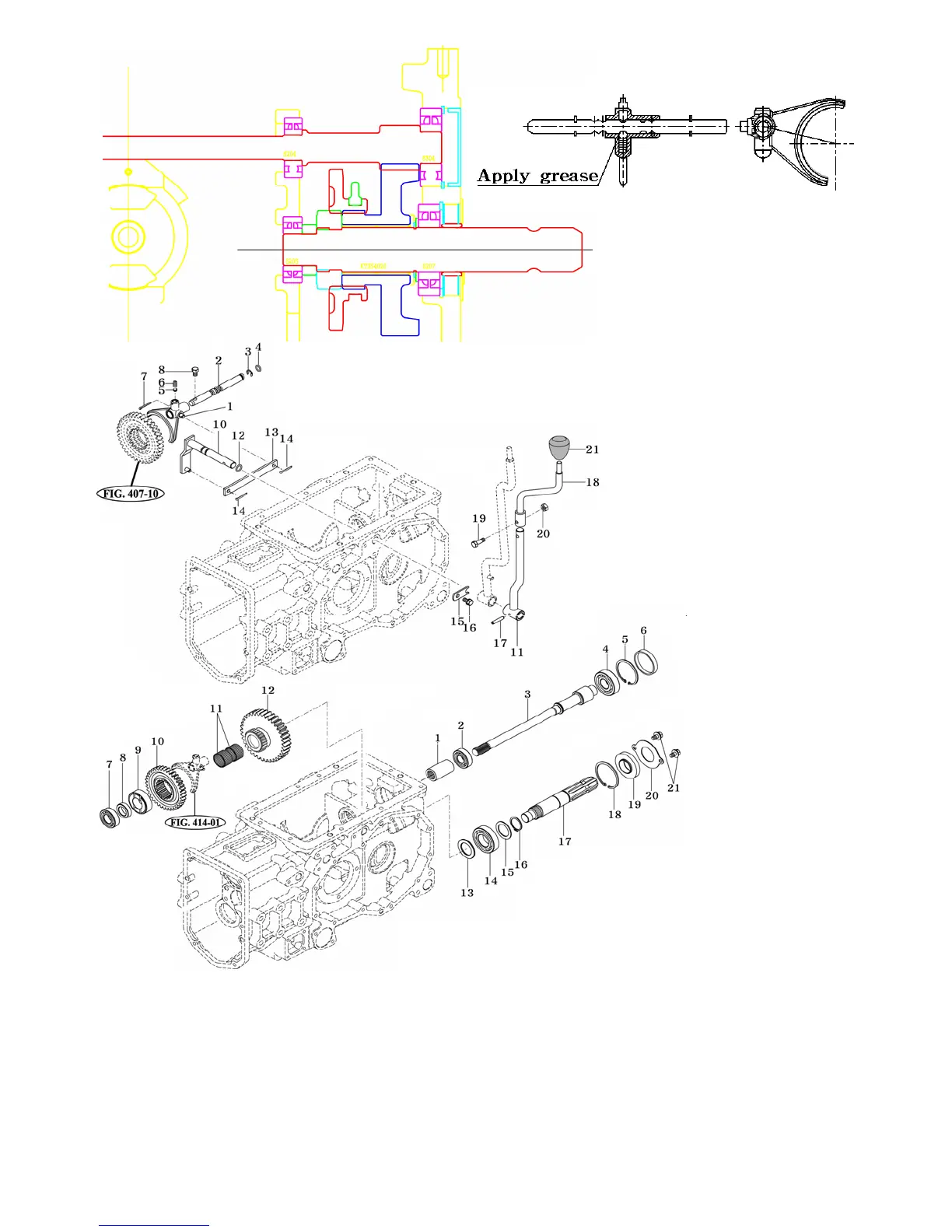

Fig.5-42
Counter shaft
PTO shaft
7.PIN , SPLIT
8.BOLT , SET M8X16
9.ARM SET , PTO
10.ARM COMP , PTO
11.LEVER COMP , PTO(LOW)
12.O-RING , P
13.PLATE , CHANGE
14.PIN , SPLIT
15.PLATE
16.BOLT , HEX/S
17.PIN , SPRING
18.LEVER COMP , PTO(UPR)
19.BOLT , HEX
20.NUT , HEX/2
21.GRIP , LEVER 12
1.FORK , PTO 2.STAY , PTO
3.E-RING 4.O-RING , P
5.BALL , STEEL 6.SPRING , SHIFTER
Fig.5-44 PTO gears
Fig.5-43 PTO lever, stay
1.COUPLING 2.BEARING , BALL 3.SHAFT , PTO COUNTER 4.BEARING , BALL
5.C-RING , HOLE 6.SEAL , 62 7.BEARING , BALL 8.COLLAR ,25X40X12
9. HUB , 35X62X20 10.GEAR , SPUR 41T 11.BEARING , NEEDLE.ROLLER
12. GEAR , SPUR 53T 13.WASHER , 35X55X3 14.BEARING , BALL 15.COLLAR , 35X50X2
16.C-RING , SHAFT 17.SHAFT , PTO 18.C-RING , HOLE 19.SEAL ASSY , OIL
20.COVER 21. BOLT , HEX/SP
21.GRIP , LEVER 12
5-27
