TYM T233 HST User Manual

(5) MID PTO

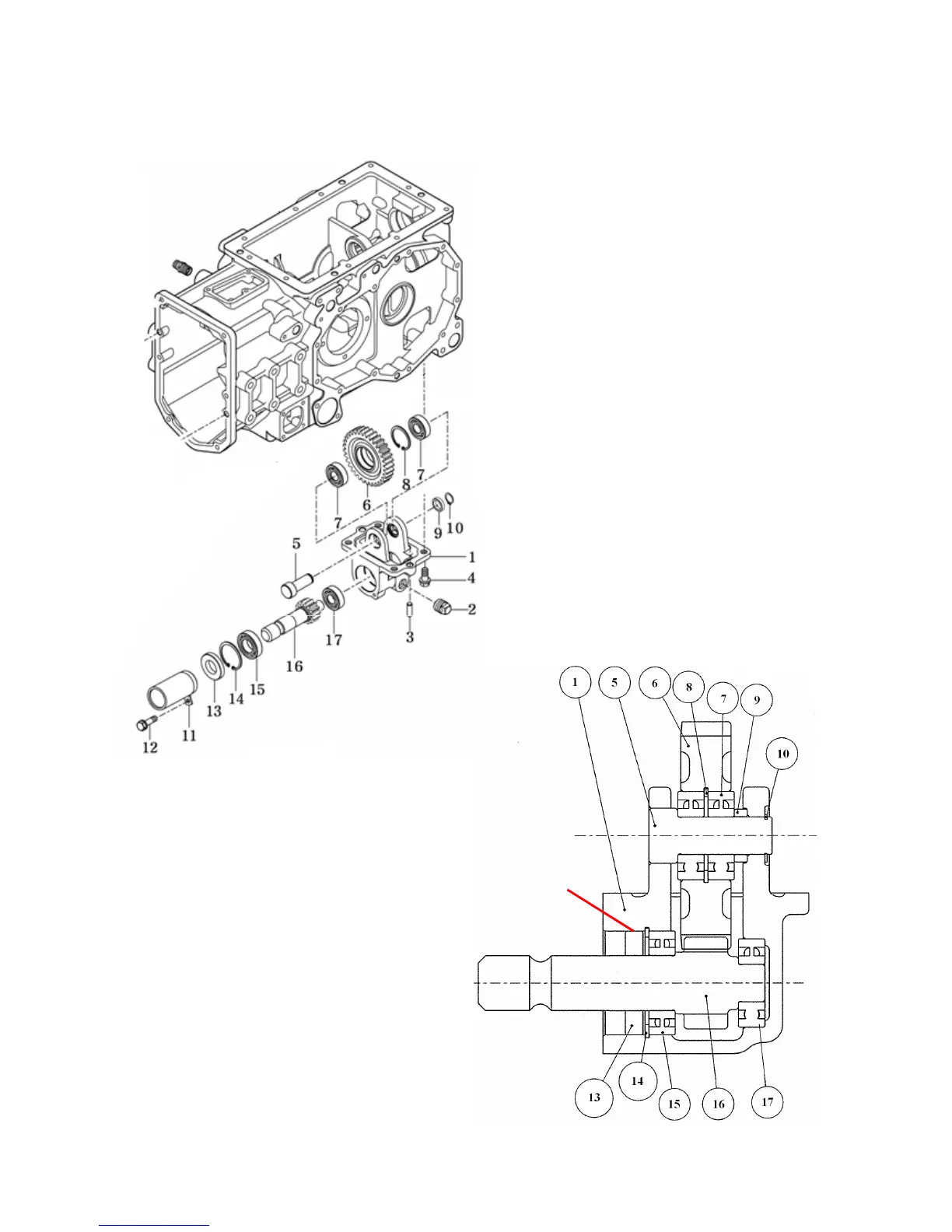

(5-1) MID PTO CASE ASSY
1.CASE , MID PTO
2.PLUG , SQUARE
3.PIN , PARALLEL/A
4.BOLT , HEX/S
5.SHAFT , MID PTO COUNT
6.GEAR , SPUR 32T
7.BEARING , BALL (6203)
8.C-RING , HOLE
9.COLLAR , 17X24X6
10.C-RING , SHAFT
11.CAP COMP , MID PTO SHAFT
12.BOLT , HEX /S
13.SEAL , OIL/D
14.C-RING , HOLE
15.BEARING , BALL (6005)
16.SHAFT , MID PTO
17.BEARING , BALL (6203)
Fig.5-48
17.BEARING , BALL (6203)
(5-2) MID PTO CASE SUB ASSY
Fig.5-49
Note : When pushing the BRG’s(15) into the
case and the shaft, be careful to push
their inner and outer races at a time.
Note : The surface of the shaft and the inner of
the case should be applied for oil
before being assembled.
5-29
Apply
adhesive
