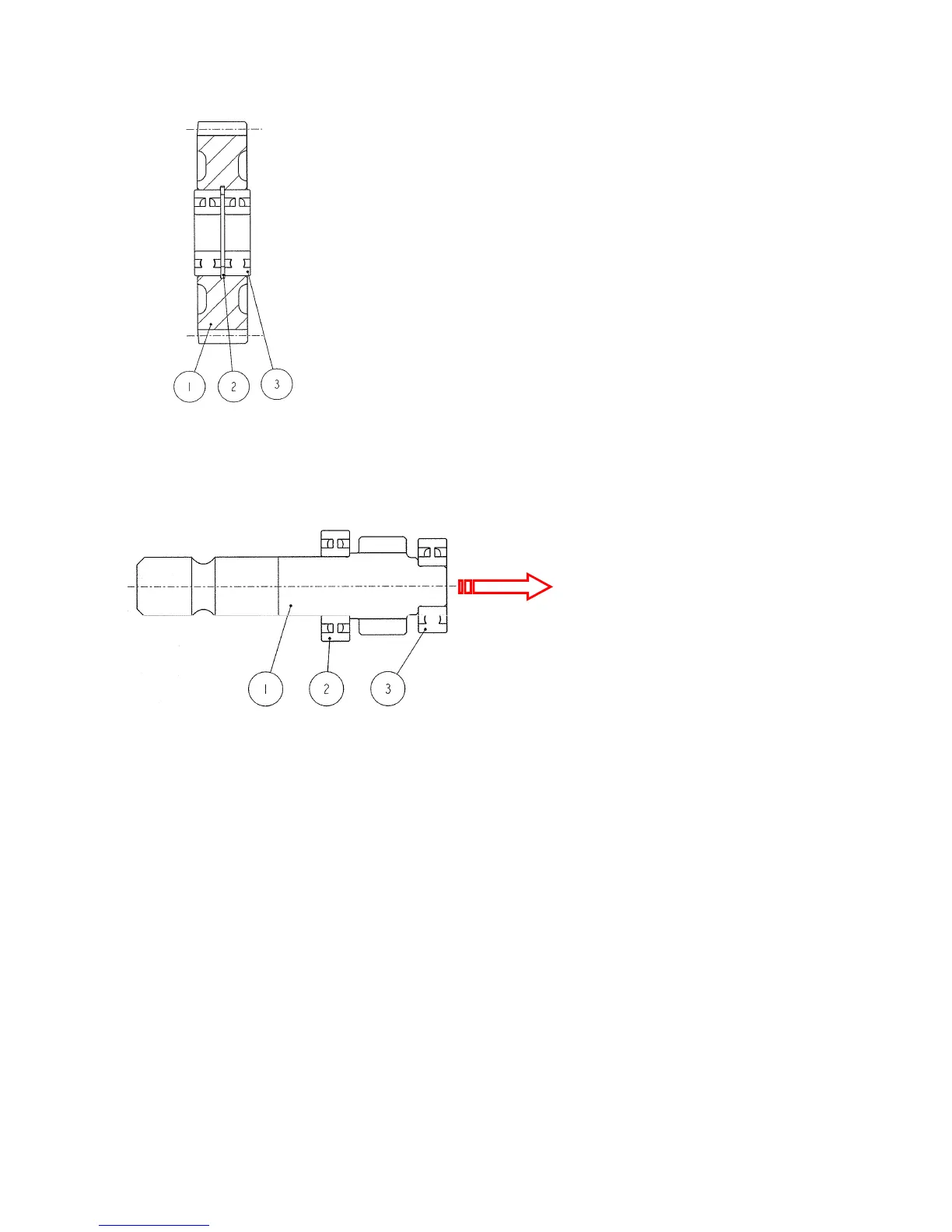

(5-3) Mid PTO counter Gear
(5-4) MID PTO shaft sub
1Gear,spur 25T
2.snap-ring(hole)
3.Bearing,Ball(6203)
Note : When pushing the BRG’s(6203) into the gear, be careful only to push their outer races.
Fig.5-50
Fig.5-51
(5-5) MID PTO shift metal SUB
Note : Refer to the rear PTO shift mechanism. It is used by the rear PTO shift at that time.
5-30
