4.3 DISASSEMBL
Y
AND INSPECTION
(Reference)
4.4 OPERA
TI
ON (Reference)
1)Neutral position
I
n
the neutral
position,convensater
spool(71
1)
in open(Unload),Main spool(31
1)
and check valve(51
1,531)
is closed and its
pressure is enough to rest the forc
e of lift arm..

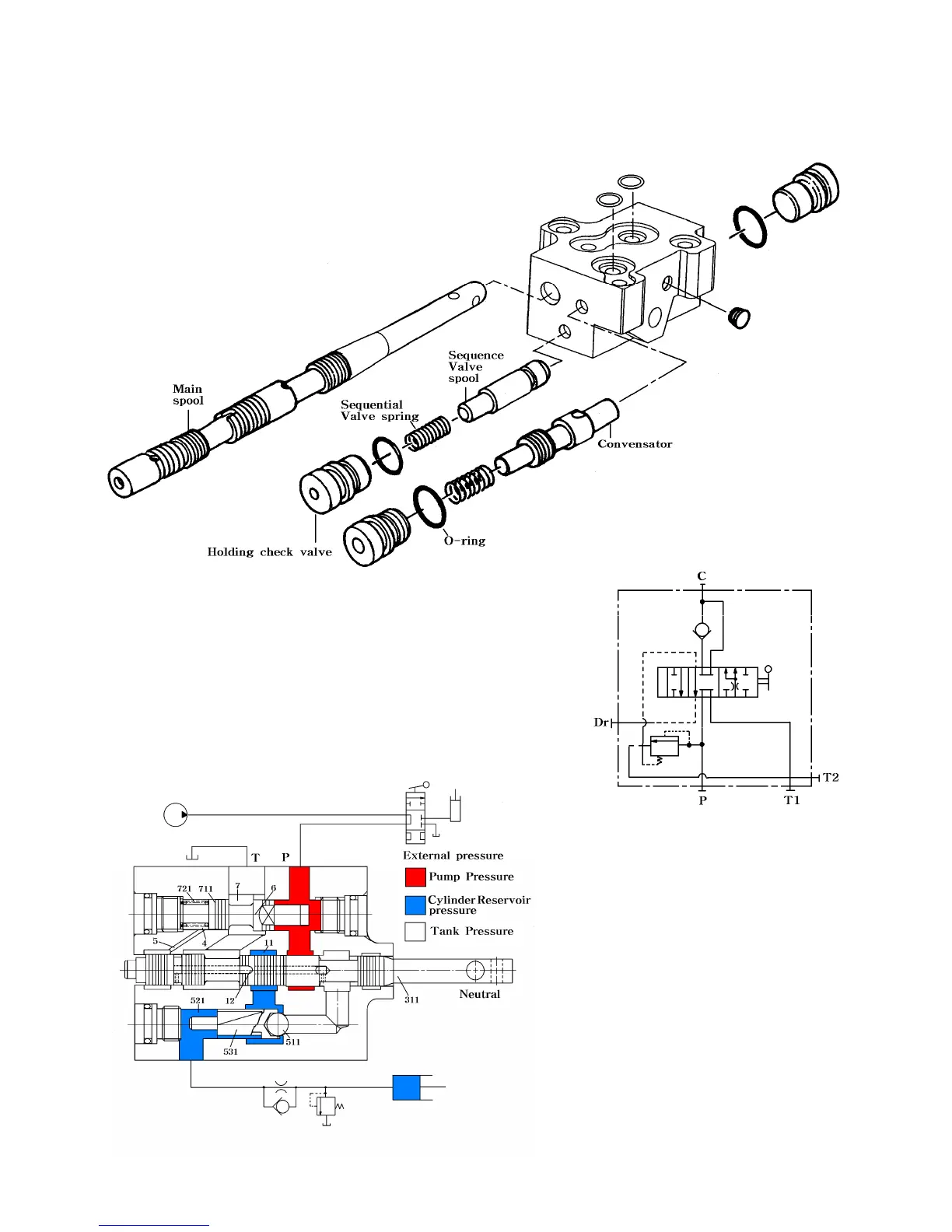

Circuit diagram in the
neutral
position
9-25
Fig.9-44
185
187
