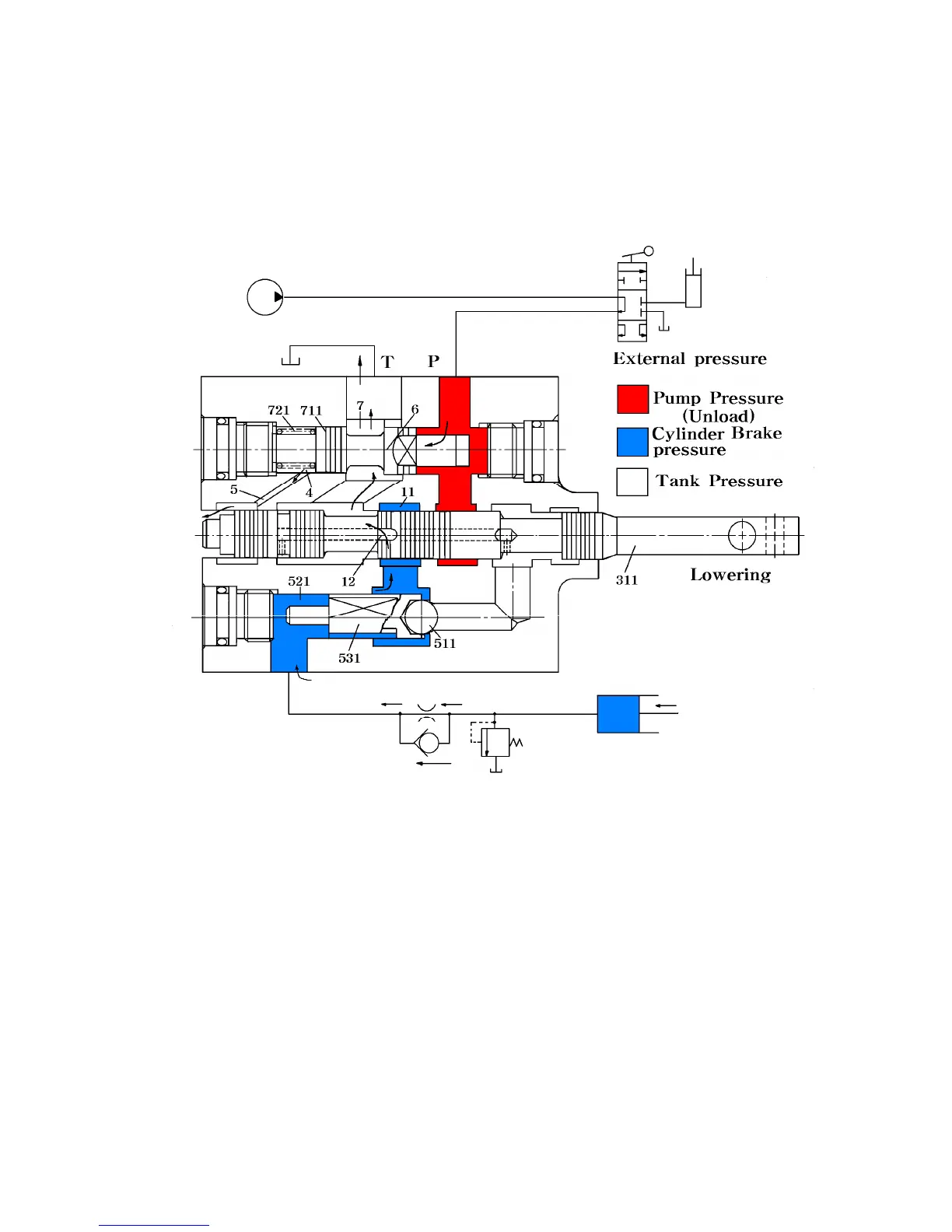

3) Lowering position
If main spool moved to lower positions,pump is
unloading and the lift arm moved to lower
position by flowing to tank in the cylinder
9-27
Fig.9-46
