Reassemble the parts in reverse order of
disassembly, following these instructions.
Note:
-Each parts should be washed clean before
reassembly.
-Apply multi-purpose, quality grease to
needle bearings in advance.
-Each bolt and nut should be tightened to
the respective specified torque table.
-Every time a gear is installed, its smooth
rotation should be checked.
c. When installing the return spring, use a
special tool; the snap ring should be securely
seated in the groove.
d.When pushing the BRG’s (6005) into the
shaft, be careful only to push their inner races.

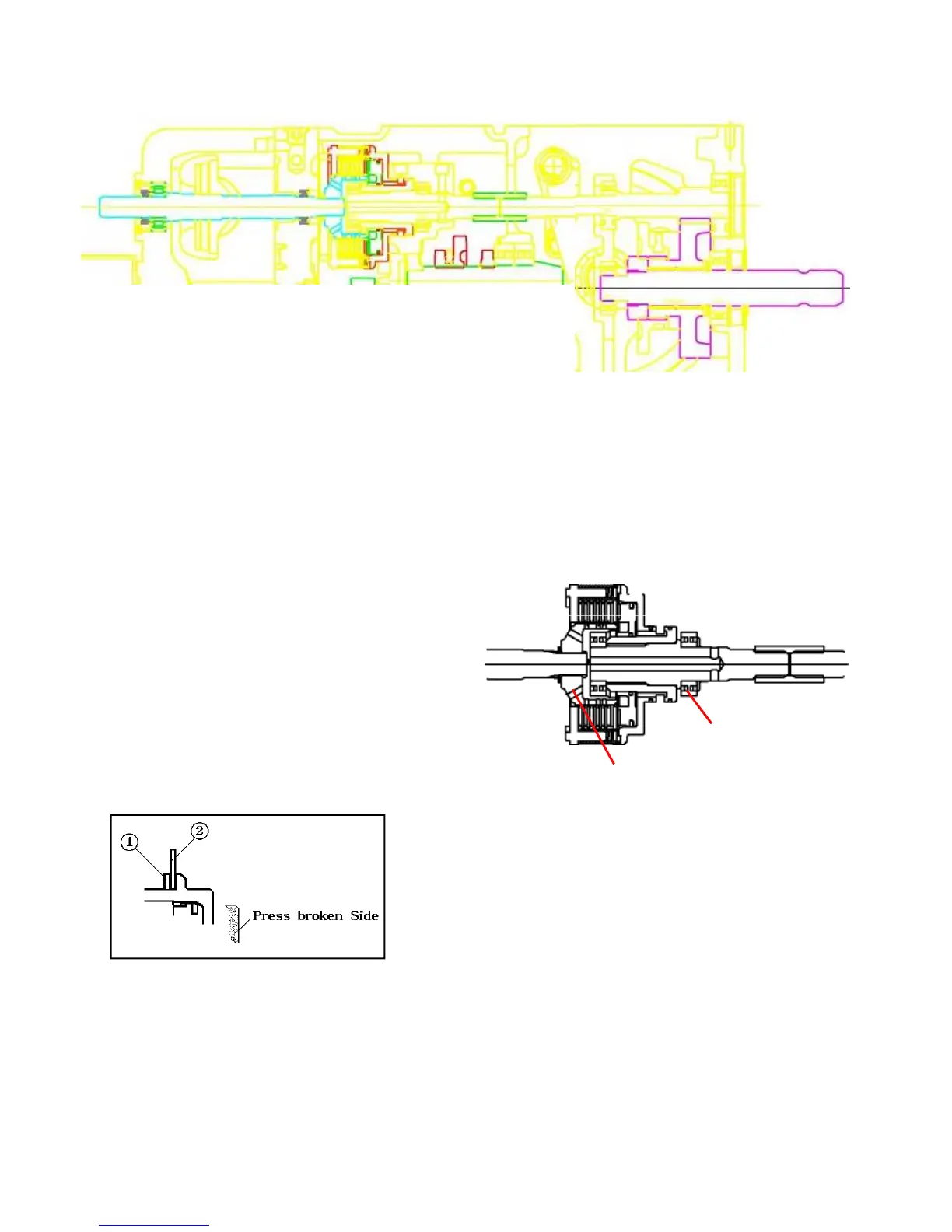

(3-3) REASSEMBLY
Fig.5-13
rotation should be checked.
-Every snap ring should be seated securely
in its groove.
a. When installing seal rings, apply fresh
oil ahead of time and install them carefully
so as not to damage them.
b. Install the return plate with the press-
processed side turn towards the brake disc.
① Return plate ②Brake Disc
e. Install washer in correct direction.
f. After reassembly,check to see that the hub
turns smoothly by locking the PTO clutch
5-9
Fig.5-14
Fig.5-15
Bearing, ball (6005)
Hub
