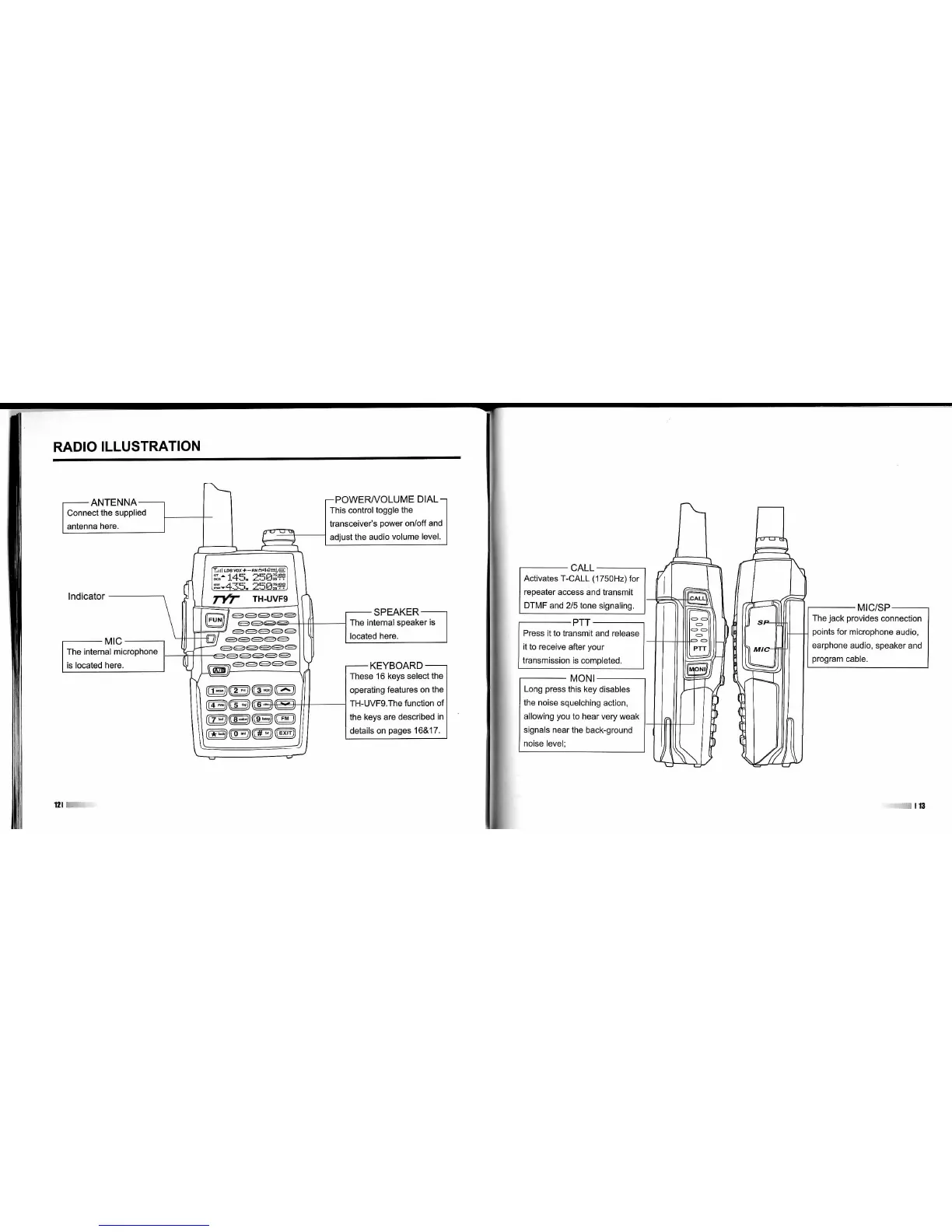

RADIO
ILLUSTRATION
-ANTENNA
Connect the supplied
antenna here.
Indicator
•IVIIC-
The internal microphone
is located here.
,-POWERA/OLUME DIAL-
This control toggle the
transceiver's power on/off and
adjust the audio volume level.
- SPEAKER-
The internal speaker is
located here.
-KEYBOARD-
These 16 keys select the
operating features on the
TH-UVF9.The function of
the keys are described in
details on pages 16&17.
121
I
CALL
Activates
T-CALL
(1750Hz) for
repeater access and transmit
DTMF and 2/5 tone signaling.
PTT
Press it to transmit and release
it to receive after your
transmission is completed.
MONI
Long press this key disables
the noise squelching action,
allowing you to hear very weak
signals near the back-ground
noise level;
MIC/SP
The jack provides connection
points for microphone audio,
earphone audio, speaker and
program cable.
