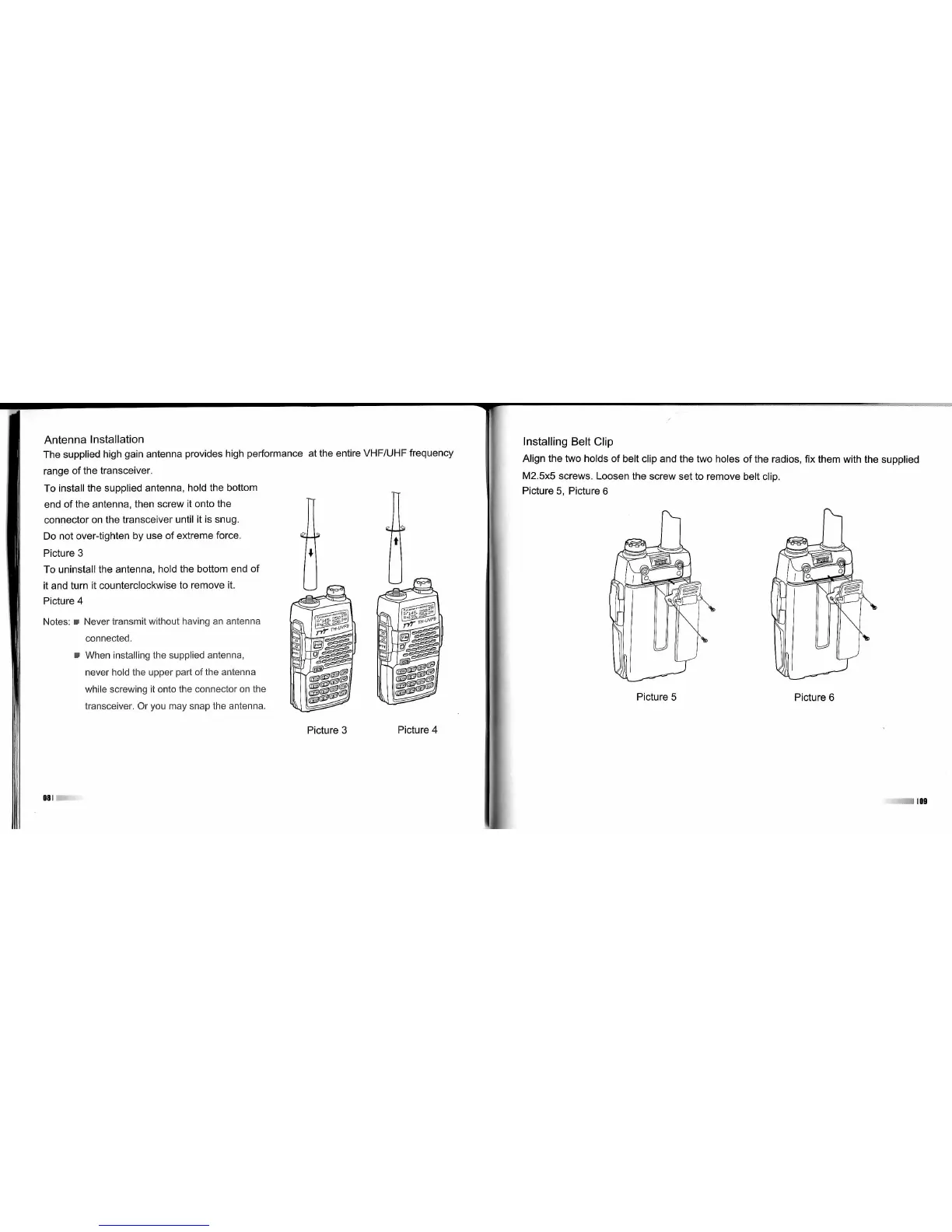

Antenna Installation
The supplied high gain antenna provides high performance at the entire VHF/UHF frequency
range of the transceiver.
To install the supplied antenna, hold the bottom
end of the antenna, then screw it onto the TT
connector on the transceiver until it is snug.
Do not over-tighten by use of extreme force.
Picture 3
To uninstall the antenna, hold the bottom end of
it and turn it counterclockwise to remove it.
Picture 4
Notes: • Never transmit without having an antenna
connected.
m When installing the supplied antenna,
never hold the upper part of the antenna
while screwing it onto the connector on the
transceiver. Or you may snap the antenna.
Picture 3 Picture 4
98!
Installing Belt Clip
Align the two holds of belt clip and the two holes of the radios, fix them with the supplied
M2.5x5 screws. Loosen the screw set to remove belt clip.
Picture 5, Picture 6
Picture 5 Picture 6
