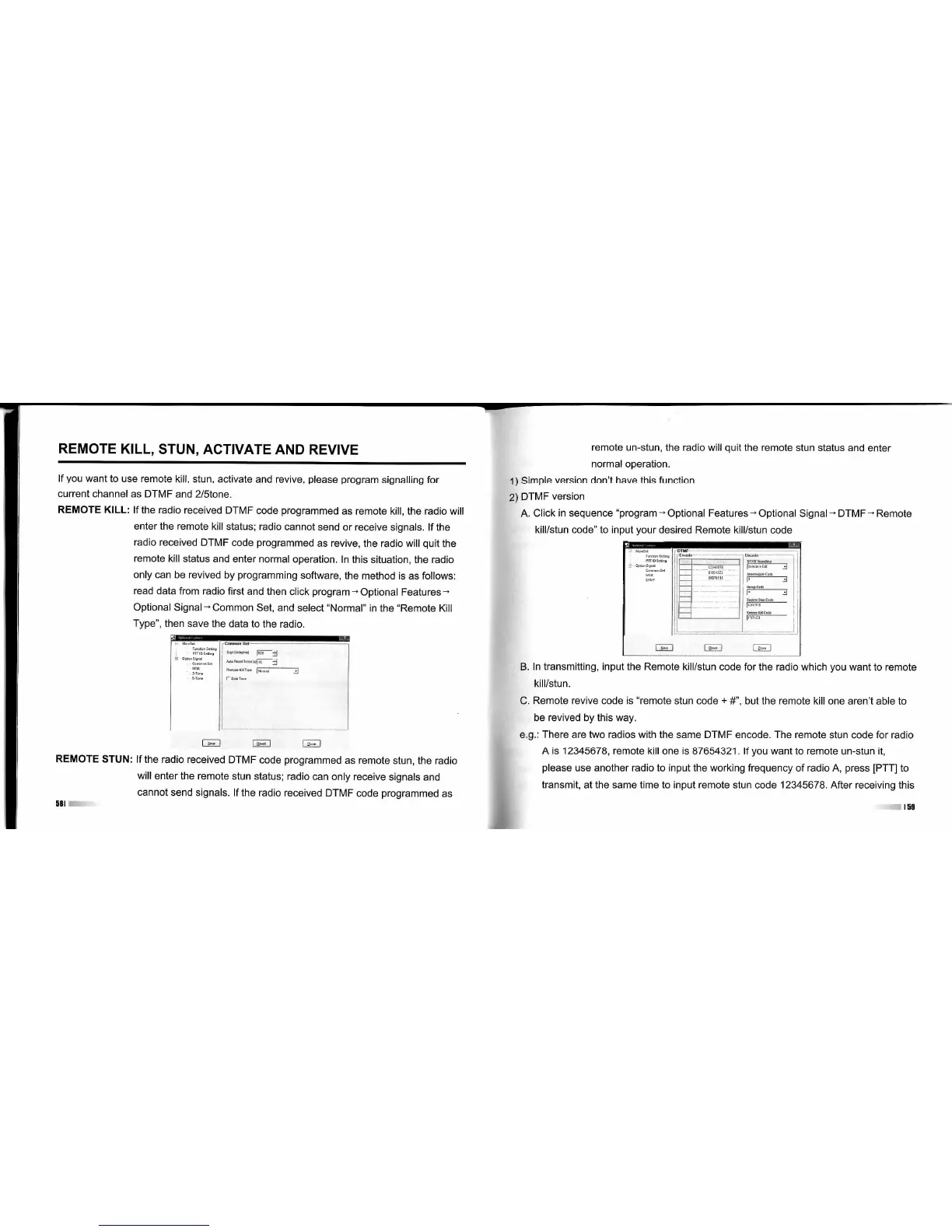

REMOTE KILL, STUN, ACTIVATE AND REVIVE
If you want to use remote kill, stun, activate and revive, please program signalling for
current ctiannel as DTIVIF and 2/5tone.
REMOTE KILL: If the radio received DTMF code programmed as remote kill, the radio will
enter the remote kill status; radio cannot send or receive signals. If the
radio received DTMF code programmed as revive, the radio will quit the
remote kill status and enter normal operation. In this situation, the radio
only can be revived by programming software, the method is as follows:
read data from radio first and then click program-Optional Features-
Optional Signal - Common Set, and select "Normal" in the "Remote Kill
Type", then save the data to the radio.
PTTI0S(Bi"3
a o«i«iEi«™i
'""•""•"••Ml" il
• M9K
1 1 1
REMOTE STUN: If the radio received DTMF code programmed as remote stun, the radio
will enter the remote stun status; radio can only receive signals and
cannot send signals. If the radio received DTMF code programmed as
remote un-stun, the radio will quit the remote stun status and enter
normal operation.
1) Simple version don't have this function
2) DTMF version
A. Click in sequence "program-Optional Features-Optional Signal-DTMF-Remote
kill/stun code" to input your desired Remote kill/stun code
; j
5" I Ull'J
B. In transmitting, input the Remote kill/stun code for the radio which you want to remote
kill/stun.
C. Remote revive code is "remote stun code + #", but the remote kill one aren't able to
be revived by this way.
e.g.: There are two radios with the same DTMF encode. The remote stun code for radio
A is 12345678, remote kill one is 87654321. If you want to remote un-stun it,
please use another radio to input the working frequency of radio A, press [PTT] to
transmit, at the same time to input remote stun code 12345678. After receiving this
1159
