LCD
DISPLAY

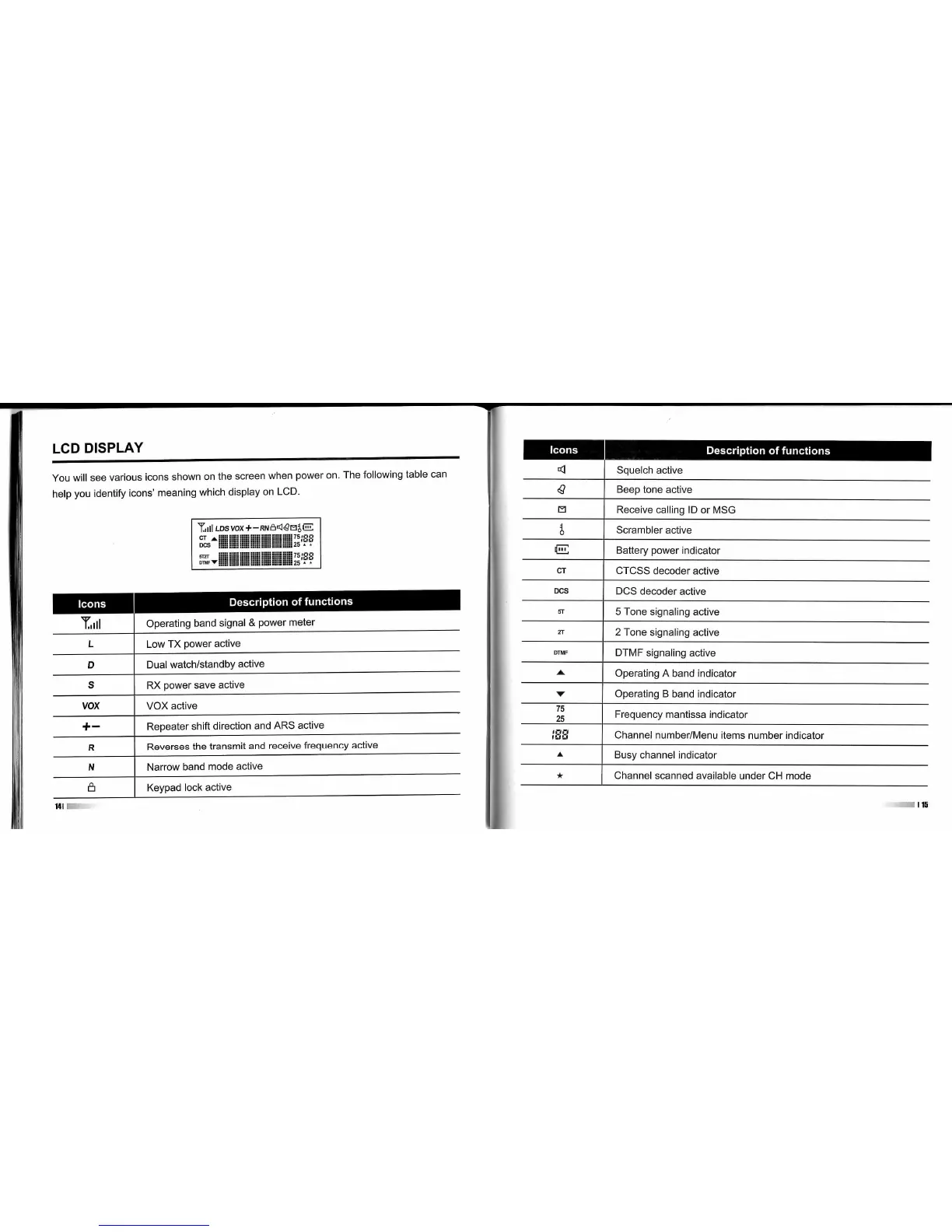

You will see various icons shown on the screen when power on. The following table can
help you identify icons' meaning which display on LCD.
Icons
Description of functions
T.iil
Operating band signal & power meter
L
Low TX power active
D
Dual watch/standby active
S
RX power save active
VOX VOX active
+ -
Repeater shift direction and ARS active
R
Reverses the transmit and receive frequency active
N
Narrow band mode active
Keypad lock active
Ml C.
1 Icons
• • Description of functions
Squelch active
<Q
Beep tone active
Q
Receive calling ID or MSG
Scrambler active
E Battery power indicator
CT
CTCSS decoder active
DCS
DCS decoder active
5T
5 Tone signaling active
2T
2 Tone signaling active
DTMF
DTMF signaling active
Operating A band indicator
Operating B band indicator
75
25
Frequency mantissa indicator
Channel number/Menu items number indicator
•
Busy channel indicator
Channel scanned available under CH mode
1
119
