XPLR-AOA-3 - User guide
UBX-22006906 - R07 EVB-ANT-1 Page 15 of 46
C1-Public
4.1 Introduction
EVB-ANT-1 is a versatile application board for evaluating a system setup, using the ANT-B10 antenna
board [1] or other antenna boards.
The EVB-ANT-1 application board can be used as:
• an anchor point passing raw or processed angle events from the antenna board to a server.
See also Anchor point.
• a host board for evaluating other antenna boards,. See also Custom antenna support.
• a positioning engine server
• a preprocessor applying filtering or other reformatting of the angle events from the antenna board
before passing them on to the network
EVB-ANT-1 has a connector and mechanical dimensions that make it suitable for mounting an
ANT-B1x-board. The board is protected with an enclosed plexiglass, as shown in Figure 2.
4.2 EVB-ANT-1 overview

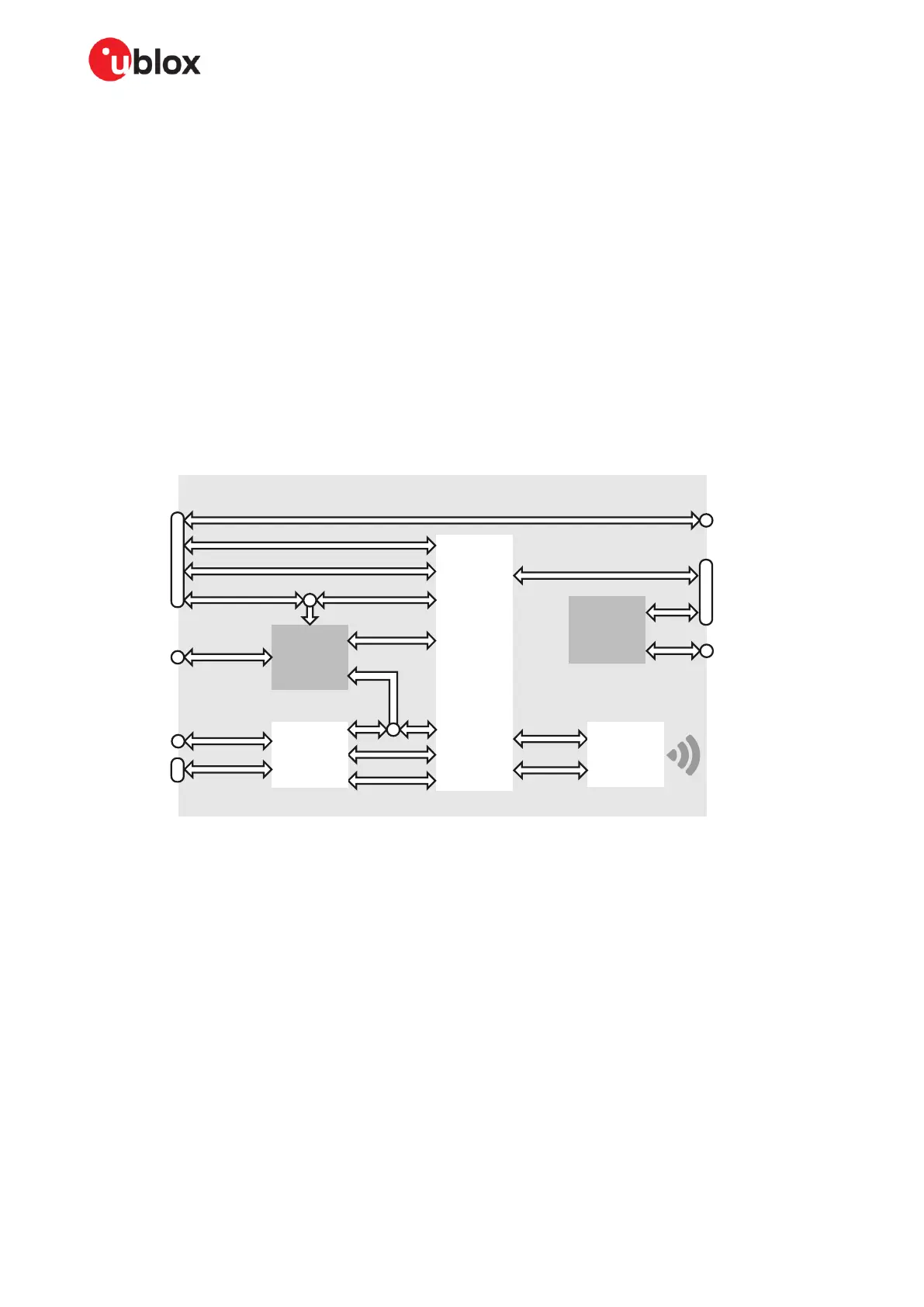

Figure 13 EVB-ANT-1 block diagram
The main components of the EVB-ANT-1 include:
• MAYA-W1 Wi-Fi module for Wi-Fi and Bluetooth connectivity
• Arm® Cortex®-M7 Core MCU (NXP i.MX RT1060 family)
• Ethernet controller for ethernet connectivity
• Power over Ethernet (PoE) controller for powering the board using an Ethernet cable
• NINA-B411 Bluetooth module running u-connectLocate software for evaluating external antenna
boards
• Quad UART-to-USB converter providing access to the serial interfaces of the MCU, ANT-B10, and
the onboard NINA-B4 module
