XPLR-AOA-3 - User guide
UBX-22006906 - R07 EVB-ANT-1 Page 20 of 46
C1-Public
From the web configuration interface, you can:
• Configure network settings for Wi-Fi and ethernet. The default IP address of EVB-ANT-1 is a fixed
IP address of 192.168.1.102.
• Send UDP packets containing angle events generated by the anchor. It is often convenient to
broadcast the address of the network, as shown in Figure 19.
• Configure the active NINA-B411 module as either the NINA-B411 mounted on the ANT-B10 board
or the onboard NINA-B411 (connected to the custom antenna header).

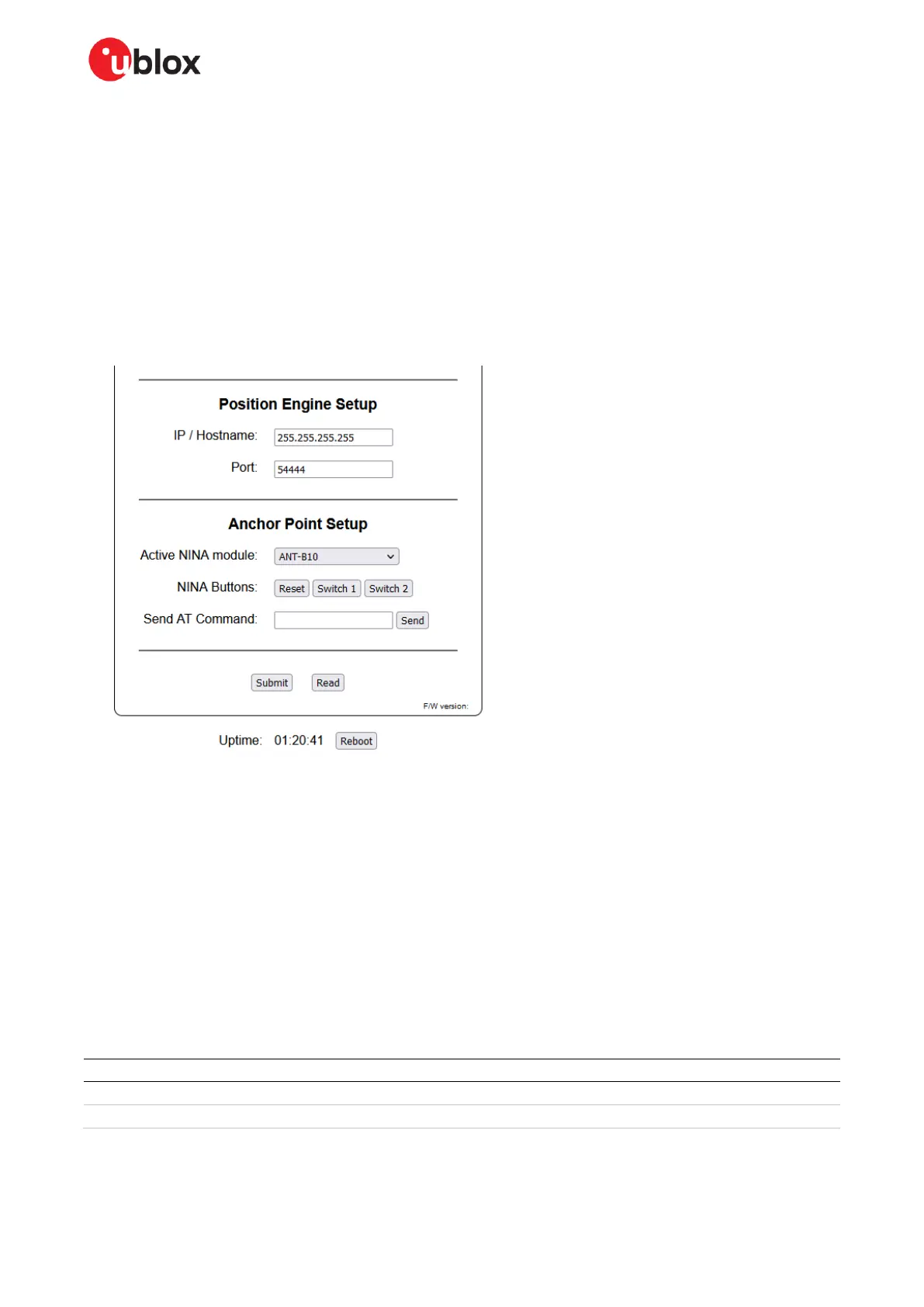

Figure 19: Configuring the active NINA-B411 and destination for angle events
After updating the configuration, select Submit to send it to the MCU and save it to flash. Select Read
to retrieve current configuration.
4.5.4 SW Reset
To reset EVB-ANT-1 software settings, press and hold the SW5 button for 2 seconds during board
bootup. The location of SW5 and other buttons is shown in Figure 12.
4.6 Boot options
Use the SW3 DIP switches to set the board in regular boot mode or serial downloader mode, as shown
in Table 2.
Switch/Boot option
Switch 1
Switch 2
Switch 3
Switch 4
Boot from flash
Off
Off
On
Off
Serial Downloader
Off
Off
Off
On
Table 2: Boot options using switch SW3
