u-blox XPLR-AOA-3 User Manual

XPLR-AOA-3 - User guide
UBX-22006906 - R07 EVB-ANT-1 Page 21 of 46
C1-Public
4.7 Powering options
EVB-ANT-1 is powered by either:
• Power over Ethernet
• An auxiliary jack (DC 9-57V)
• USB type C (2 connectors available on the board)

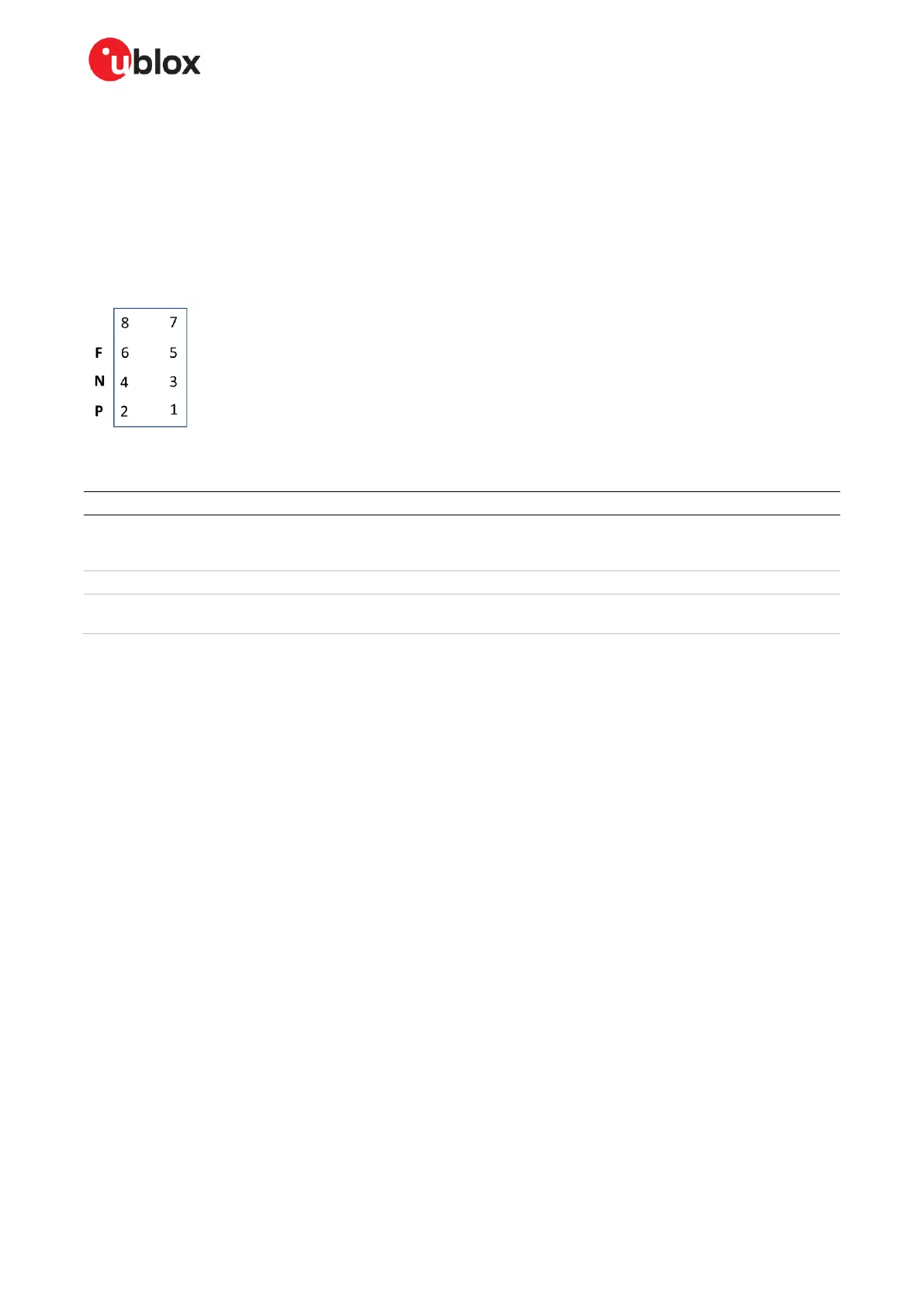

The powering options for the platform are controlled with jumper J2, as shown in Figure 20.
Figure 20: Jumper J2 powering options
J2 jumper settings are described in Table 3.
Jumper position
Pins
Power setting
P
1–2
Power over Ethernet or barrel jack. When the barrel jack is present and
connected to a voltage source, the device automatically gives priority to
that, even if a PoE switch is also connected to the ethernet plug.
N
3–4
USB connector J15 (USB interface of the ANT-B10).
F
5–6
USB connector J13 (USB connector of the FTDI chip for UART connection
to the processors on EVB-ANT-1 or the antenna board).
Table 3 Jumper J2 settings
4.8 Mechanical specifications
EVB-ANT-1 Dimensions: 126.09 mm x 126.09 mm.
EVB-ANT-1 has four mounting holes that match the four corner holes on the ANT-B family antenna
board for screw mounting, as shown in Figure 21.
