6. Attach the drawer panel to the wood panel using #10 x 5/8"
(U-Line P/N 42121) wood screws and nylon spacers (U-Line P/N
42120). The nylon spacers fit between the wood panel and the draw-

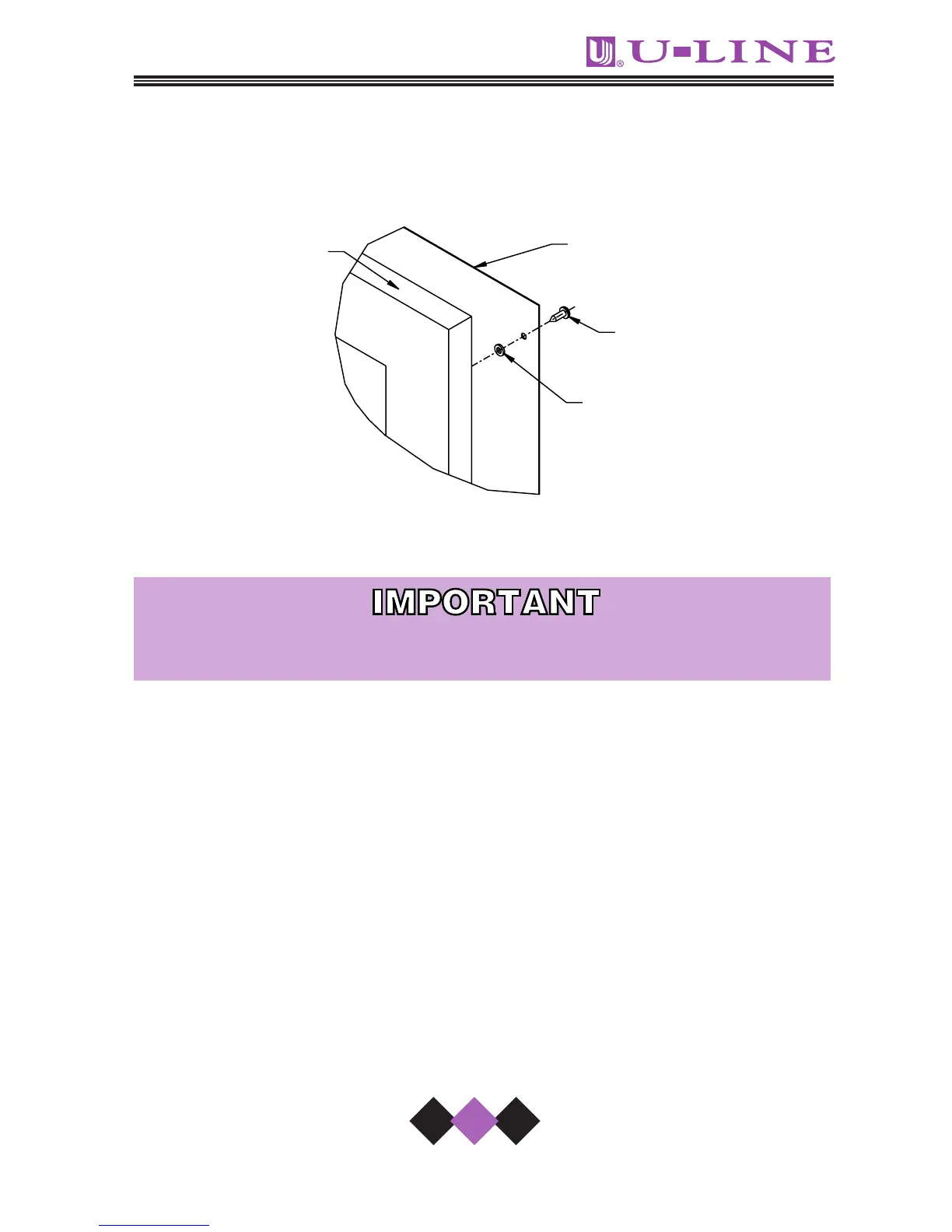

er panel as shown (Figure 16).
Figure 16
Drawer panel and wood panel must be aligned properly or
drawer will not operate correctly.
Assembling the drawer and wood panel:
7. Install the overlay panel by sliding the drawer panel back into the
drawer frame.
8. Replace the handle assembly and secure with the two screws
removed in Step 2.
9. Starting at the corners and working toward the center, push the
drawer gasket back into place.
To Next Page
