Ubiquiti UAP-PRO User Manual

24

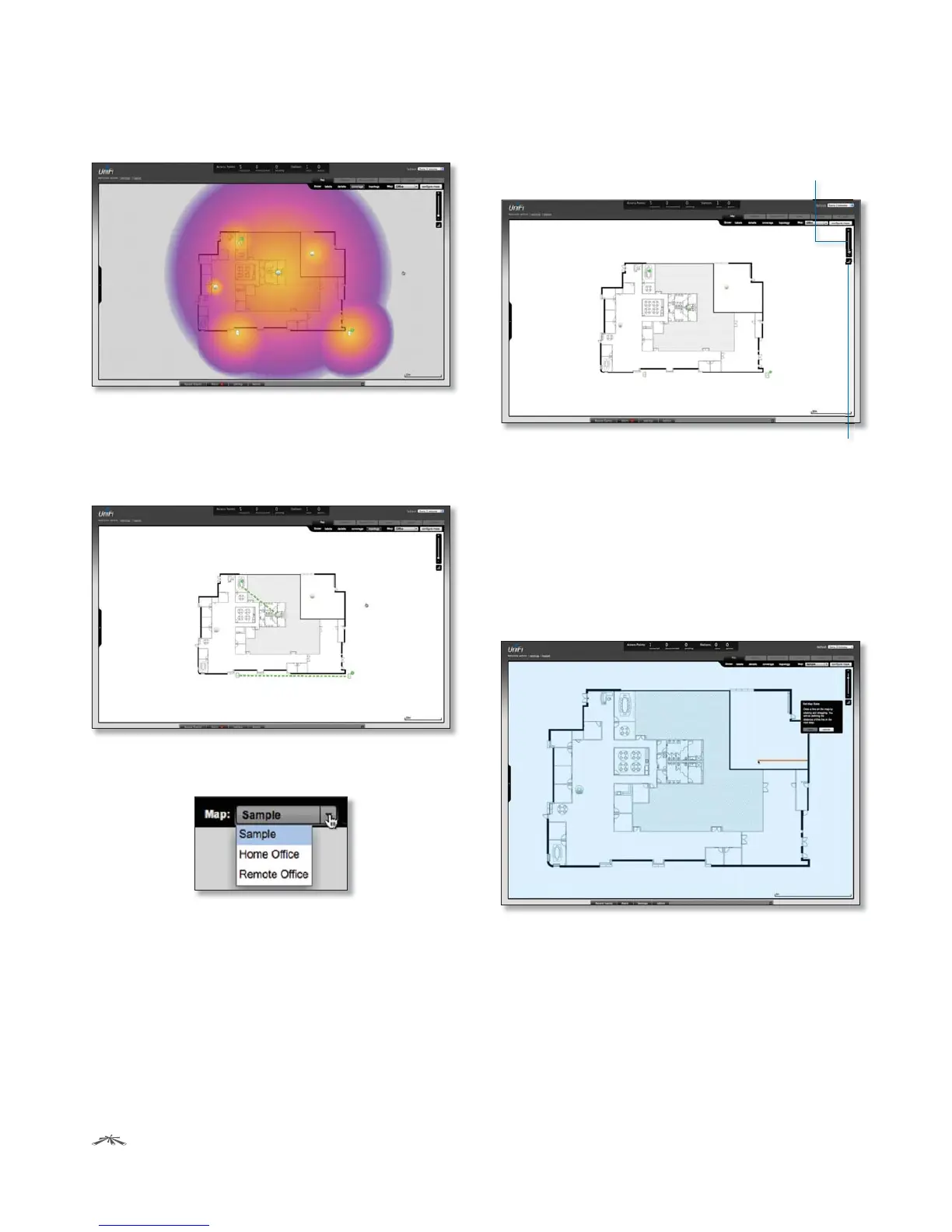

Chapter 4: Map TabUniFi
™
AP-PRO and AP-AC User Guide
Ubiquiti Networks, Inc.
• Coverage Displays a visual representation of the
wireless range covered by the Access Point.
Topology Displays a visual representation of the network
configuration and connections between Access Points.
Any devices that is wirelessly connected will have a
wireless icon next to it. A path of arrows will indicate
which device the wireless device is downlinking from.
Map: If multiple maps have been uploaded, you can
select which map you want to view using this option.
Configure Maps Use this option to add maps or edit the
current map(s).
Set Map Scale Use this option to define the scale of the
map. You will draw a line and define the distance that the
line represents.
Zoom Slider Use to zoom the map detail in and out.
Setting the Map Scale
1. Click the Set Map Scale button.
2. Click and hold to draw a line in the area that you want
to use to set the scale of the map. If you need to redraw
the line, just click and hold again to draw a new line.
Once you’re happy with the line, click Next.

Ubiquiti UAP-PRO Specifications

General

Wireless Standards	802.11a/b/g/n
Frequency Bands	2.4 GHz, 5 GHz
Antenna Gain	3 dBi (2.4 GHz), 4 dBi (5 GHz)
Maximum Power Consumption	12W
BSSID	Up to 4 per Radio
Wireless Security	WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Certifications	CE, FCC, IC
Operating Temperature	-10 to 70° C
PoE Support	802.3af
Dimensions	200 x 200 x 36.5 mm
Power Supply	48V, 0.5A PoE Adapter
Maximum TX Power	20 dBm (2.4 GHz)
Mounting	Wall/Ceiling
Operating Humidity	5 to 95% Noncondensing
Ethernet Ports	2
Power Method	Passive PoE (48V)
