Ublox ODIN-W2 Series Getting Started

ODIN-W2 series - Getting Started
UBX-15017452 - R02 Advance Information Use case examples
Page 16 of 27
7 Use case examples
7.1 Establish a Bluetooth Classic SPP connection between two ODIN-W2
• By default, ODIN-W2 accepts incoming connection and replies on Inquiry.
• AT+UBTI
o Make inquiry to find the other device
• +UBTI:112233445566,-52,000000,"Bluetooth Device"
o Use this address when creating the connection
• AT+UDCP="spp://112233445566"
o ODIN-W2 will now try to Bluetooth Serial Port Profile on other ODIN-W2
o When +UDCP:0 is received the connection is up, an ERROR will be received if
connection is not possible.
o The other device will received
• ATO1
o Goto data mode on both devices to send data between them

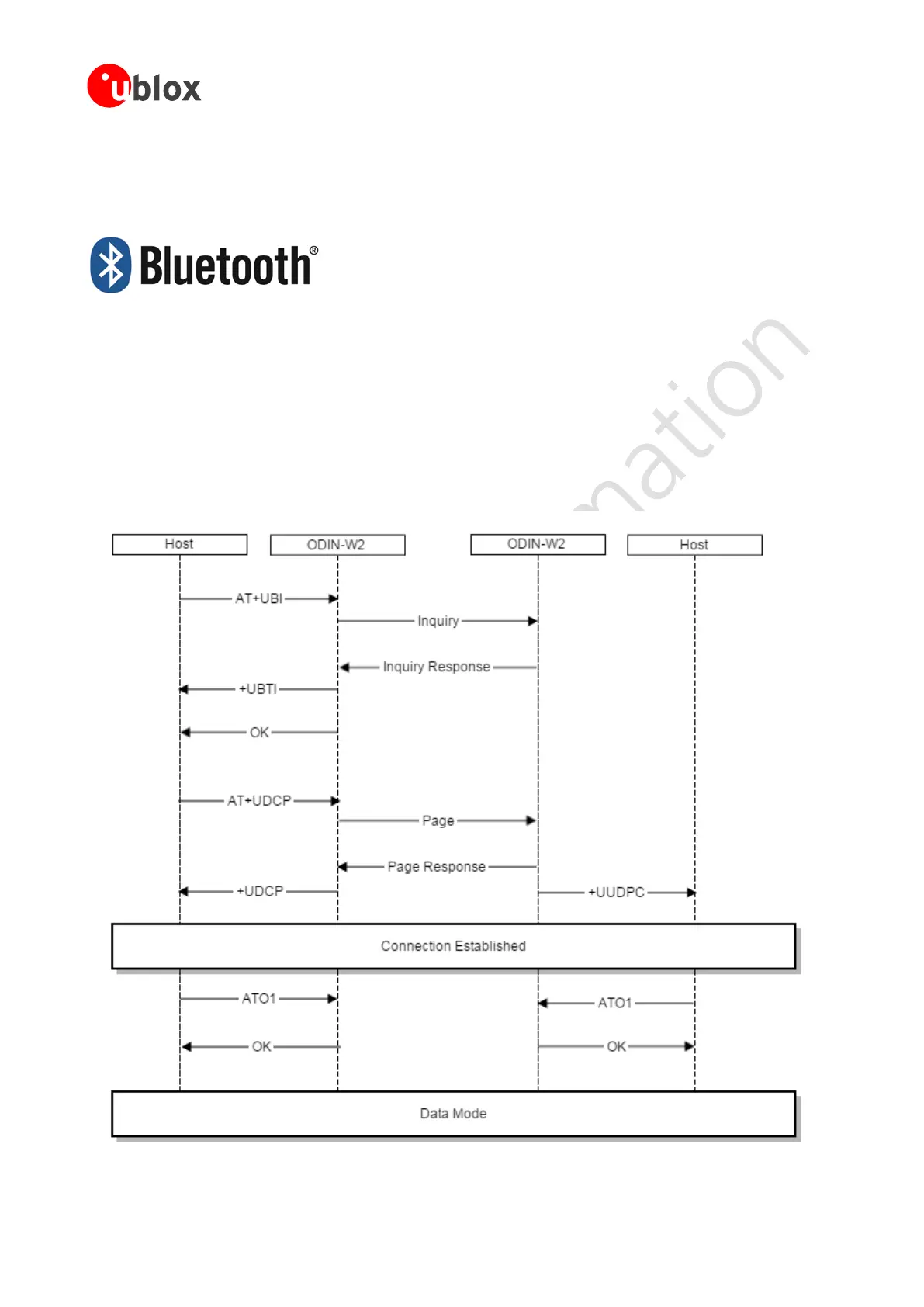

Figure 10: ODIN-W2 Bluetooth Classic SPP Connection
