ODIN-W2 series - System integration manual
UBX-14040040 - R20 Design-in Page 29 of 43
C1-Public
• The RESET_N should be driven from a GPIO on the host platform to enable reset/restore
functionality.

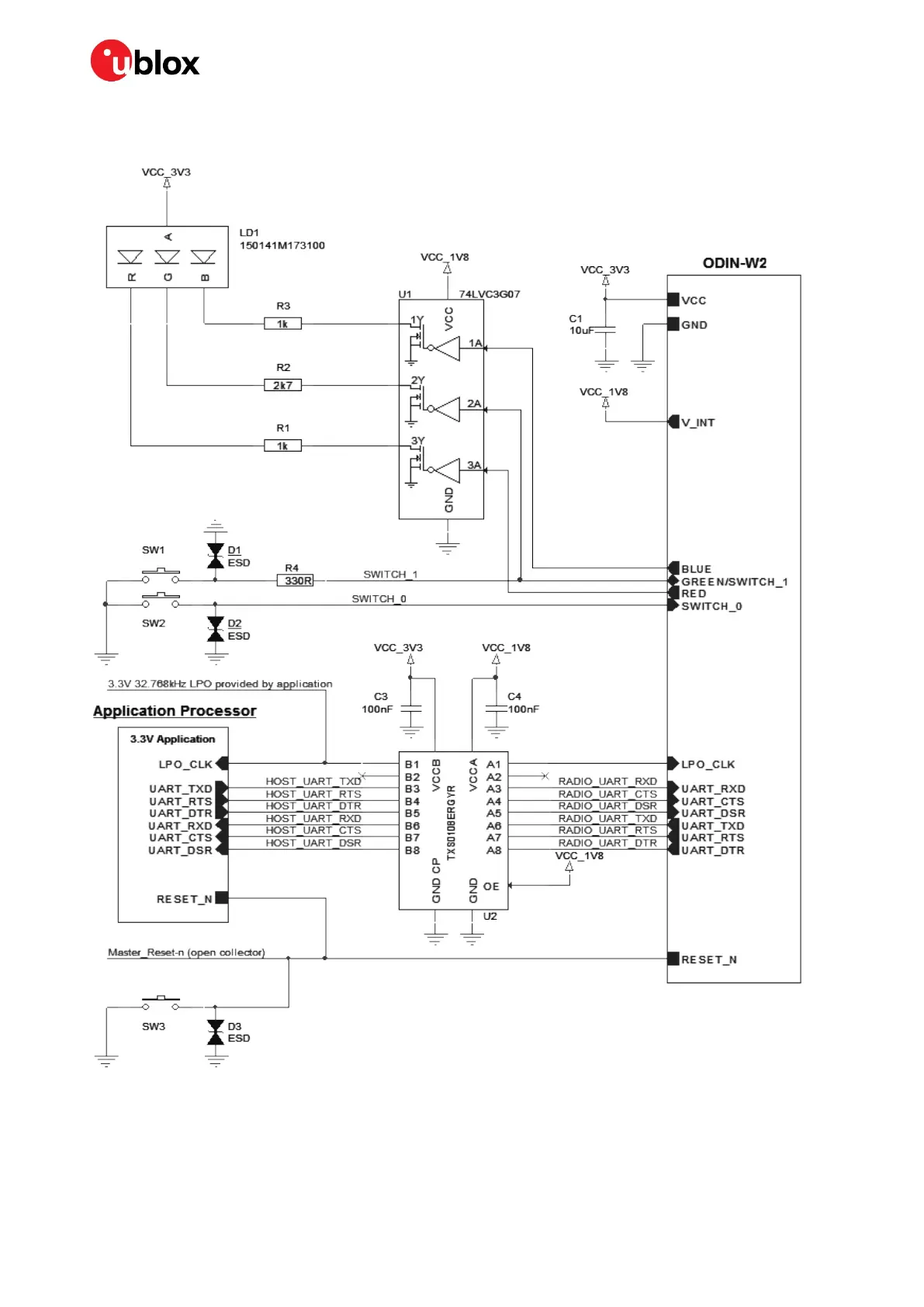

Figure 10: A complete ODIN-W2 design in a 3.3 V application
