UFactory LITE 6 User Manual

1.2.2 IP Configuration

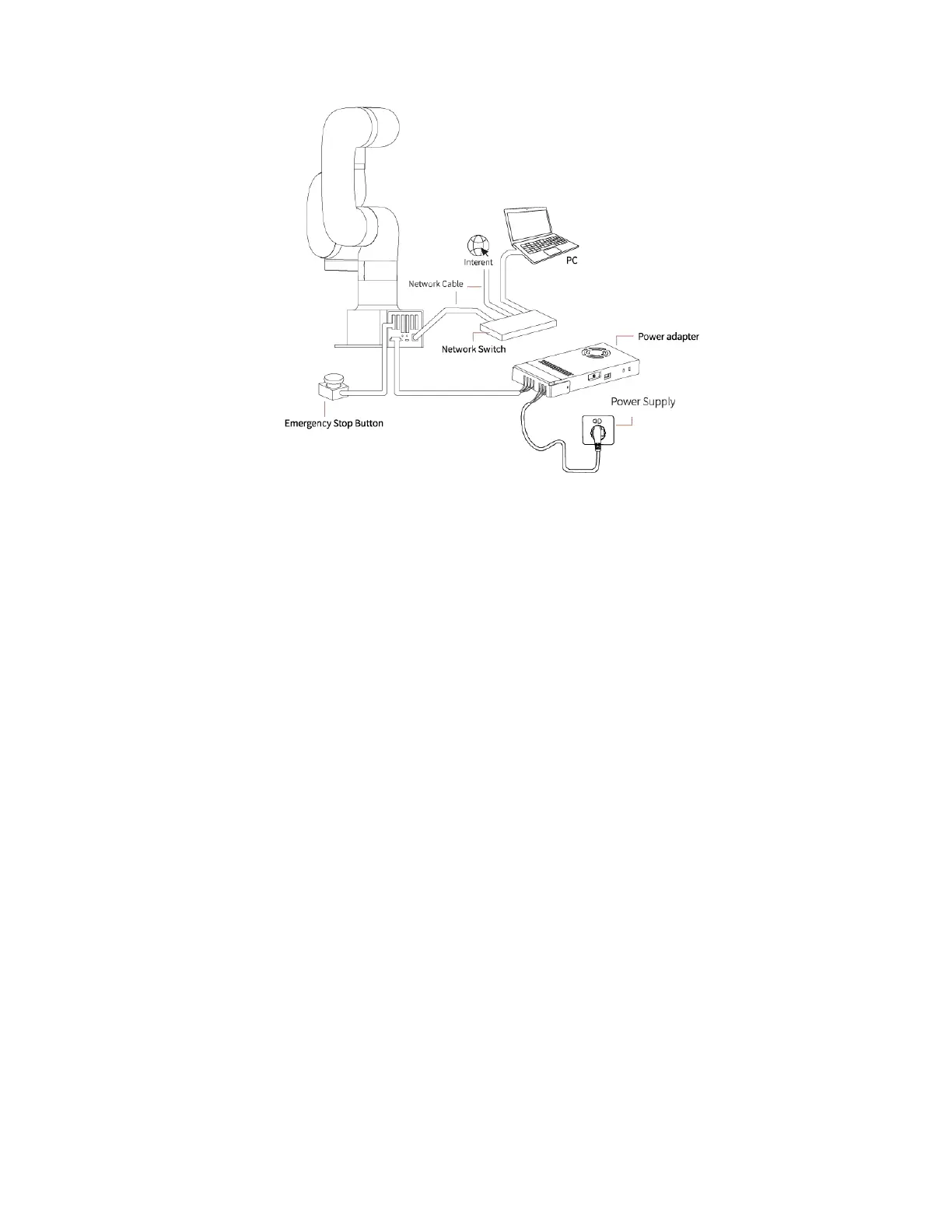

Before connecting the robotic arm with UFACTORY Studio (communication
with the robotic arm), make sure that the IP address of the computer and
the IP address of the control box are on the same network segment. When
the control box is shipped from the factory, the default IP address is
192.168.1.xxx (The factory IP address of the device has been marked on
the base of the robot). Therefore, to successfully communicate with the
control box, the IPV4 network segment on the computer must be between
192.168.1.2-192.168.1.255 (cannot be the same as the IP address tail
number of the control box).
● IP Setting
Network and Sharing Center → Ethernet → Properties → IPV4
Step1: Open the “Network and Sharing Center”

UFactory LITE 6 Specifications

General

Brand	UFactory
Model	LITE 6
Category	Robotics
Language	English
