Ultimaker 2+ - Main Components Overview

10

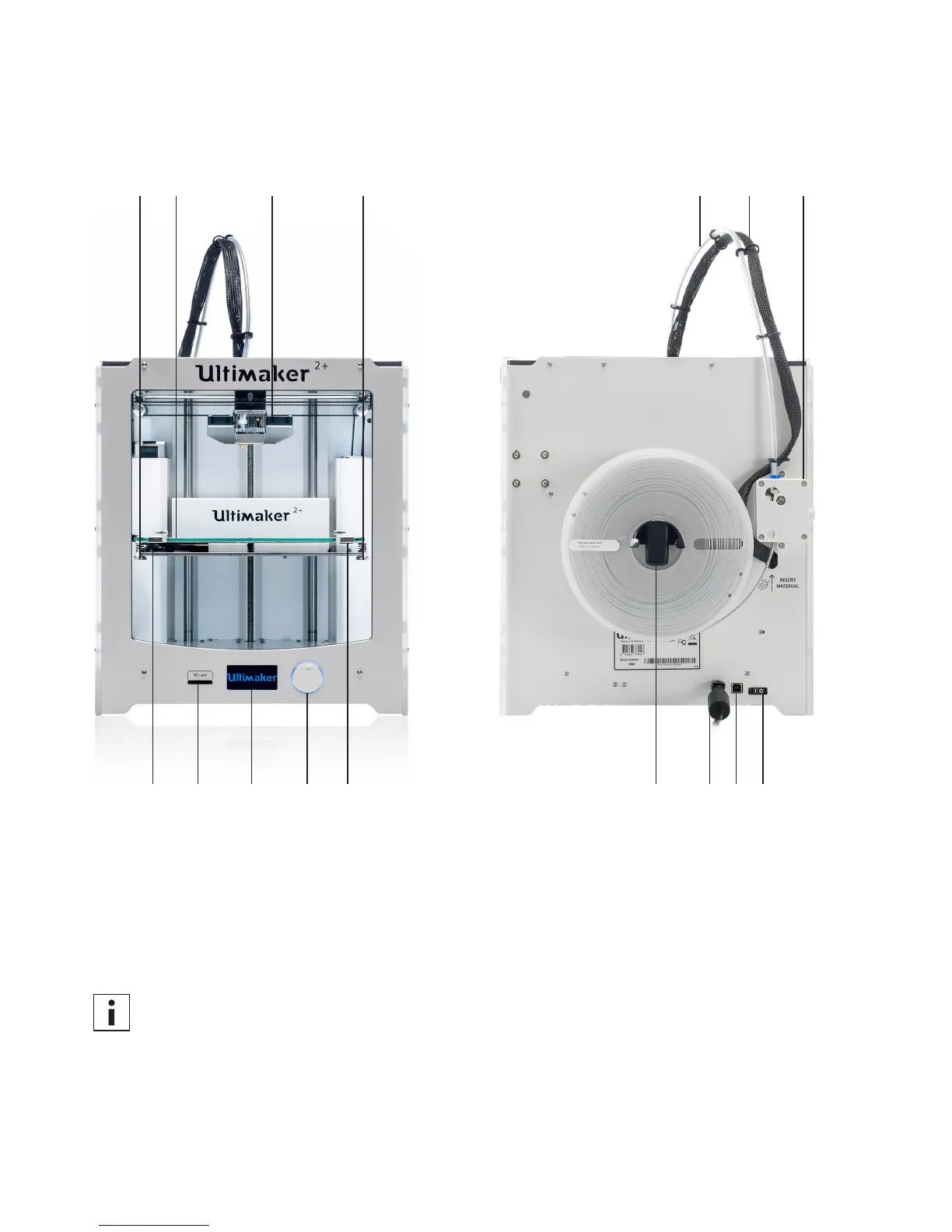

Main components Ultimaker 2+ or Ultimaker 2 Extended+
The model exposed is the Ultimaker 2+. The main components of the Ultimaker 2 Extended+ are the same
and on the exact same position. The only difference between the two printers is the height of the housing. See
Specifications for the different dimensions.
1. Build plate
2. Print head
3. Knurled nuts
4. Build plate clamps
5. Push/rotate button
6. Display
7. SD card slot
8. Bowden tube
9. Print head cable
10. Feeder
11. Power switch
12. USB port (only for updating firmware)
13. Power socket and cable
14. Spool holder
