Ultimaker S5 Quick Start Guide

1
2
3
4

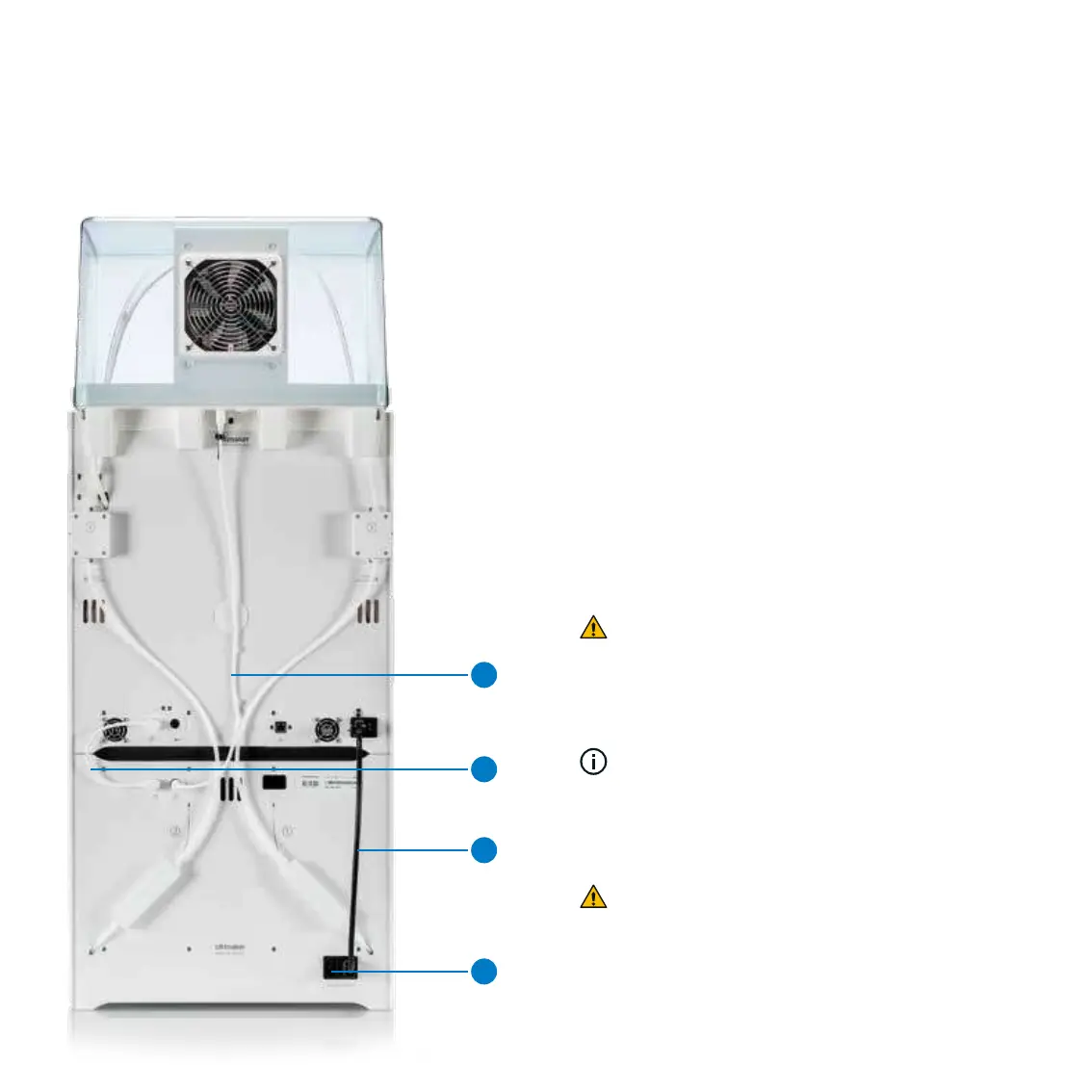

Ultimaker S5 Pro Bundle connections
1. Connect the Air Manager cable to the
UMB OUT port on the Material Station
2. Connect the Material Station cable to the
UMB IN port on the Material Station and
the other end to the UMB OUT port on
the Ultimaker S5
3. Connect the power extension cable to the
Ultimaker S5 and the Material Station
4. Connect the power cable to the Material
Station and the other end to a power outlet
A power outlet with an earth connection
must be used. Be sure that the building
installation has dedicated means for
over-current and short-circuiting.
The Material Station will automatically
power on when power is supplied. This
way the humidity can be continuously
controlled while the door is closed.
The Ultimaker S5 Pro Bundle must
be positioned out of direct sunlight
when in use. Ensure there is at least
10 cm of space behind the Ultimaker S5
Pro Bundle for airow.

Ultimaker S5 Specifications

General

Build Volume	330 x 240 x 300 mm
Layer Resolution	20 - 600 microns
Filament Diameter	2.85 mm
Max Nozzle Temperature	280 °C
Max Build Plate Temperature	140 °C
Print Technology	Fused Filament Fabrication (FFF)
Number of Print Heads	2
Build Plate	Heated glass build plate
Operating Sound	50 dBA
Print Speed	Up to 24 mm³/s
Display	4.7-inch color touchscreen
Operating Temperature	15 - 32 °C
Nozzle Diameter	0.25, 0.4, 0.6, 0.8 mm
Connectivity	Ethernet, Wi-Fi, USB
Supported Materials	PLA, ABS, Nylon, CPE, PVA, TPU 95A, PC, PP
Dimensions	495 x 585 x 780 mm
Feeder Type	Dual-geared
Print Head Movement Speed	300 mm/s
Build Plate Heating Time	Less than 4 minutes
Power Consumption	350 W
Travel Speed	300 mm/s
Operating Humidity	20 - 80% (non-condensing)
