-15-
Activate the emergency stop by electric
source switch or protective device.
Avoid motor burnout by protective device (chart 1).
Use rated over 9A electric source cable and earth cord.
Over rated 10A/1-phase, 7A/3-phase
Use round type terminal.
Fit cable-gland.
Connect earth cord to earth terminal.
Chart-1
Single-phase specifications Three-phase specifications
Voltage
V
Frequency
Hz
Recommended
protective device
(or breaker)
capacity A
Voltage
V
Frequency
Hz
Recommended
protective device
(or breaker)
capacity A
100 50 6.0 200 50 1.8
100 60 6.0 200 60 2.2
115 60 5.4 208 60 2.2
200 50 3.0 230 60 2.2
200 60 3.2 380 50 1.1
230 50 2.7 400 50 1.1
230 60 2.7 415 50 1.2
460 60 1.2

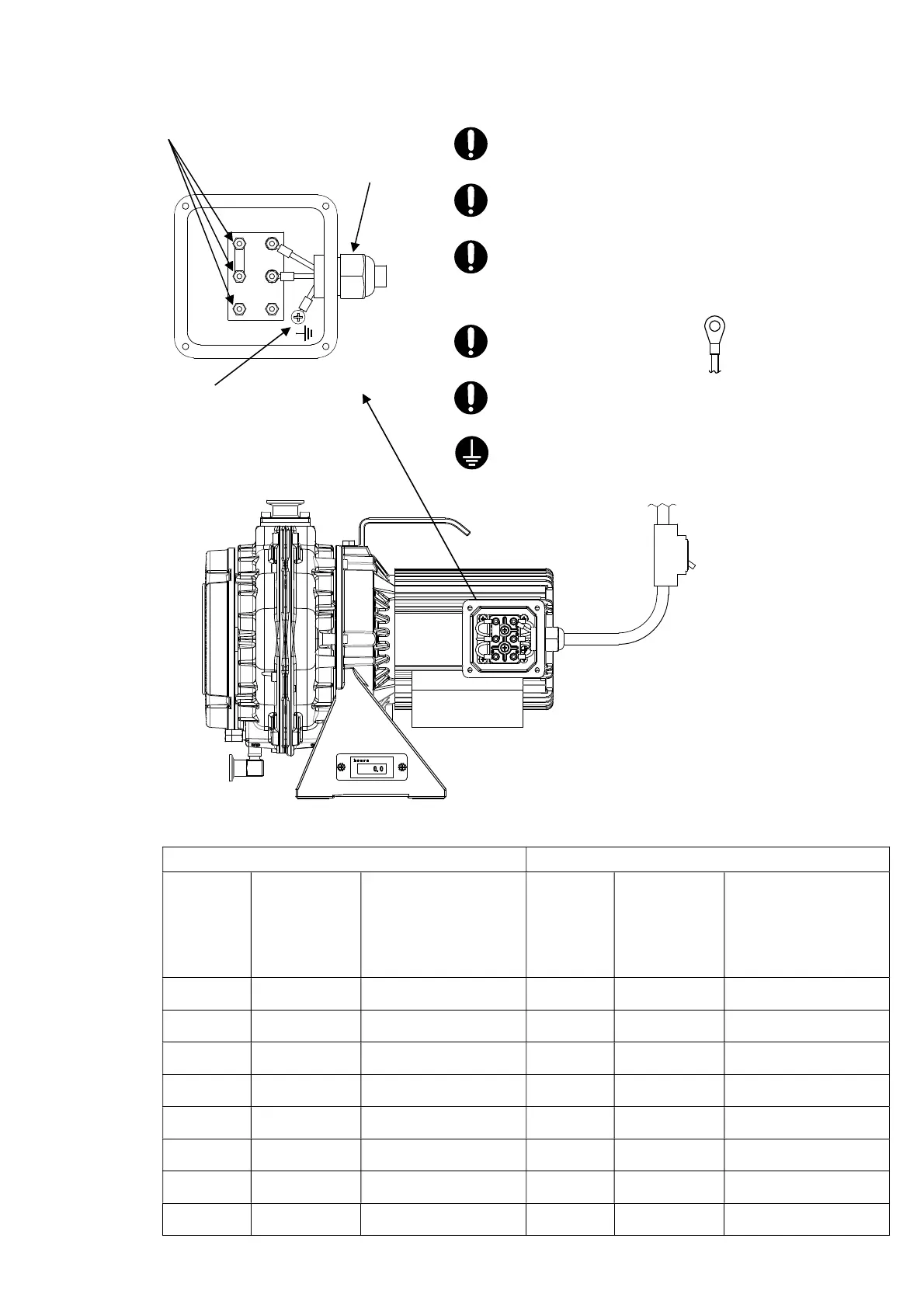

Cable-gland
Earth terminal M5 Bolt
Electric source M4 Nut
This shows single-phase 200V connection
