UNI-T UT3200 Series - Front Panel Control Functions; Power, Function, and Navigation Buttons; Numeric Keypad and USB Interface

UT3200 Series User Manual
8

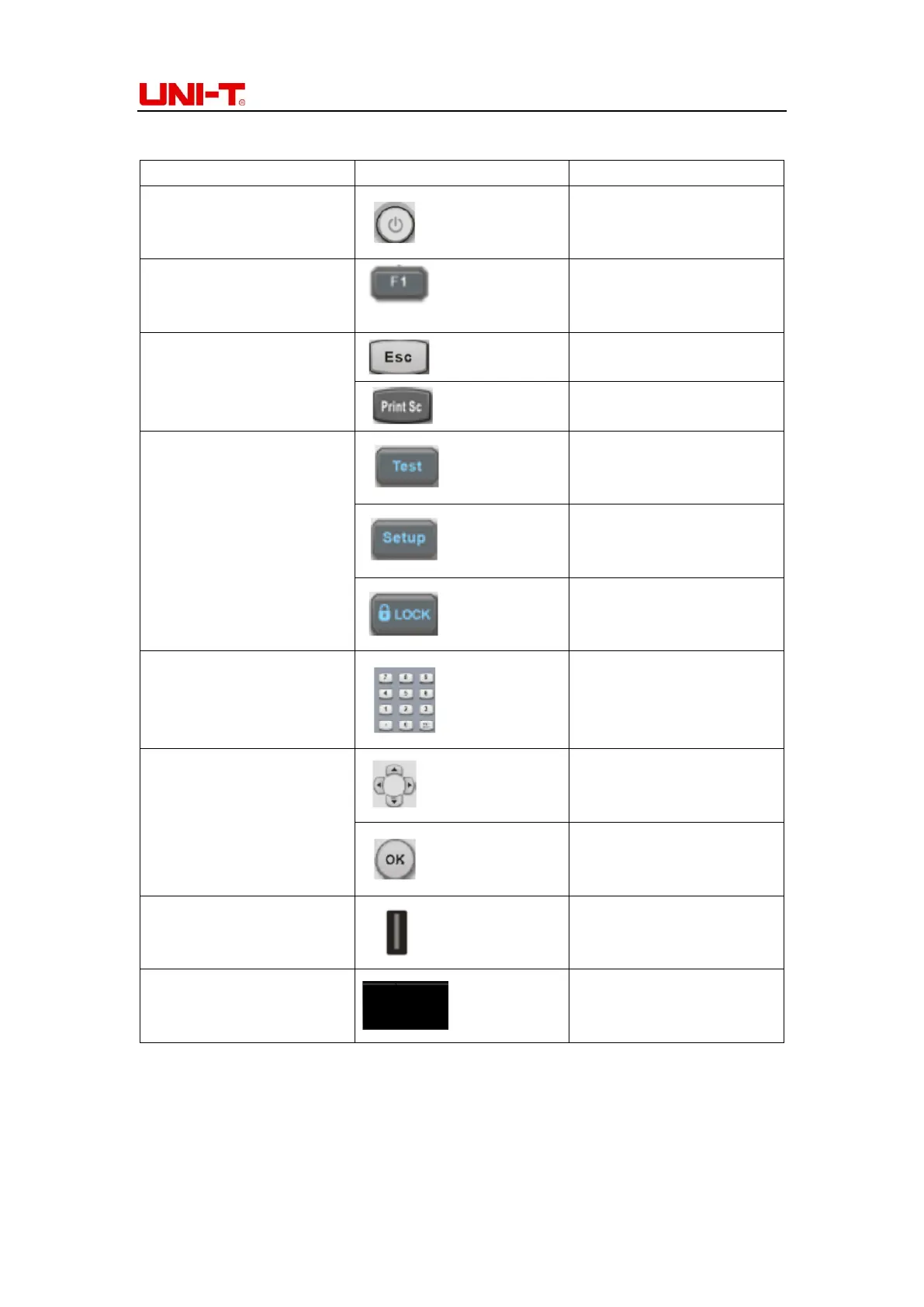

Number
Button
Description
①
On/Off button: turn on is
yellow color. Turn off is red
color
②
Function button F1-F6
③
Cancel / Return
Screenshot can store in USB
④
Test button is display
measurement result
Setup button is used for set
measurement parameters
When press LOCK button
others can’t work. Long
press 1 second to unlock
⑤
Number button to input
numbers and values
add, subtract and delete
button.
⑥
Cursor button is used for
move up, down, left, right
Enter button is used for
confirm
⑦
USB interface
⑧
4.3 inch LCD display
Figure 1-4-1 Function
