UT3200 Series User Manual
9

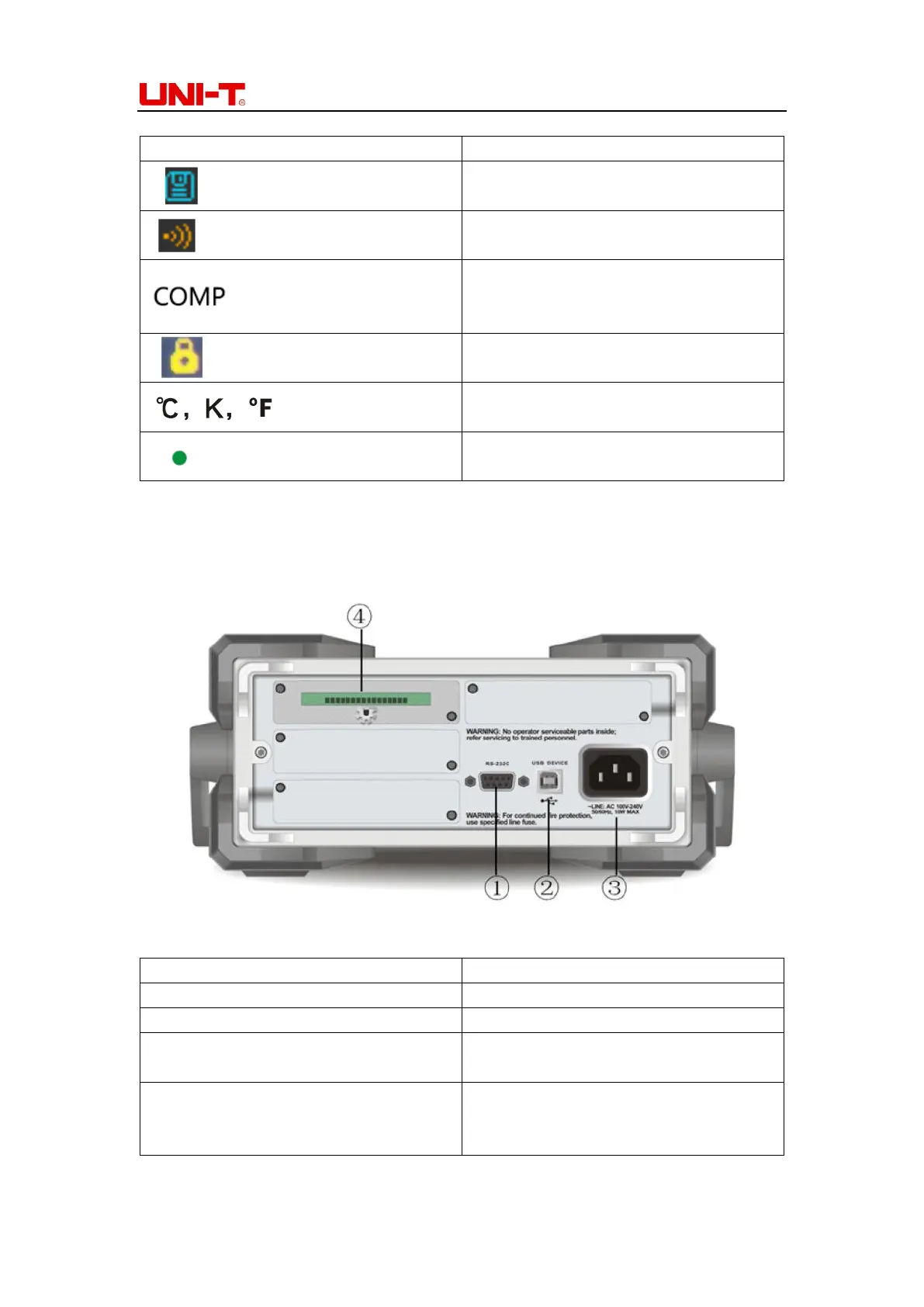

Symbol
Description
Save data and screenshot
Alarm reminder
Comparator function
Lock model
Temperature UNIT
Collecting data
Figure 1-4-2 Symbol
1.5 Back front
Figure 1-5-1 Back front UT3208 as example
Number
Description
①
RS232 interface
②
USB interface
③
AC power socket (without fuses, the fuses
installed in Instrument interior)
④
A set of data acquisition modules (UT3208)
UT3216/24/32 are equipped with 2/3/4 test
modules
