UNI-T UT511 User Manual

15
Model UT511: OPERATING MANUAL
Measurement Operation
Below section explains how to make measurements.
A. Measuring Voltages

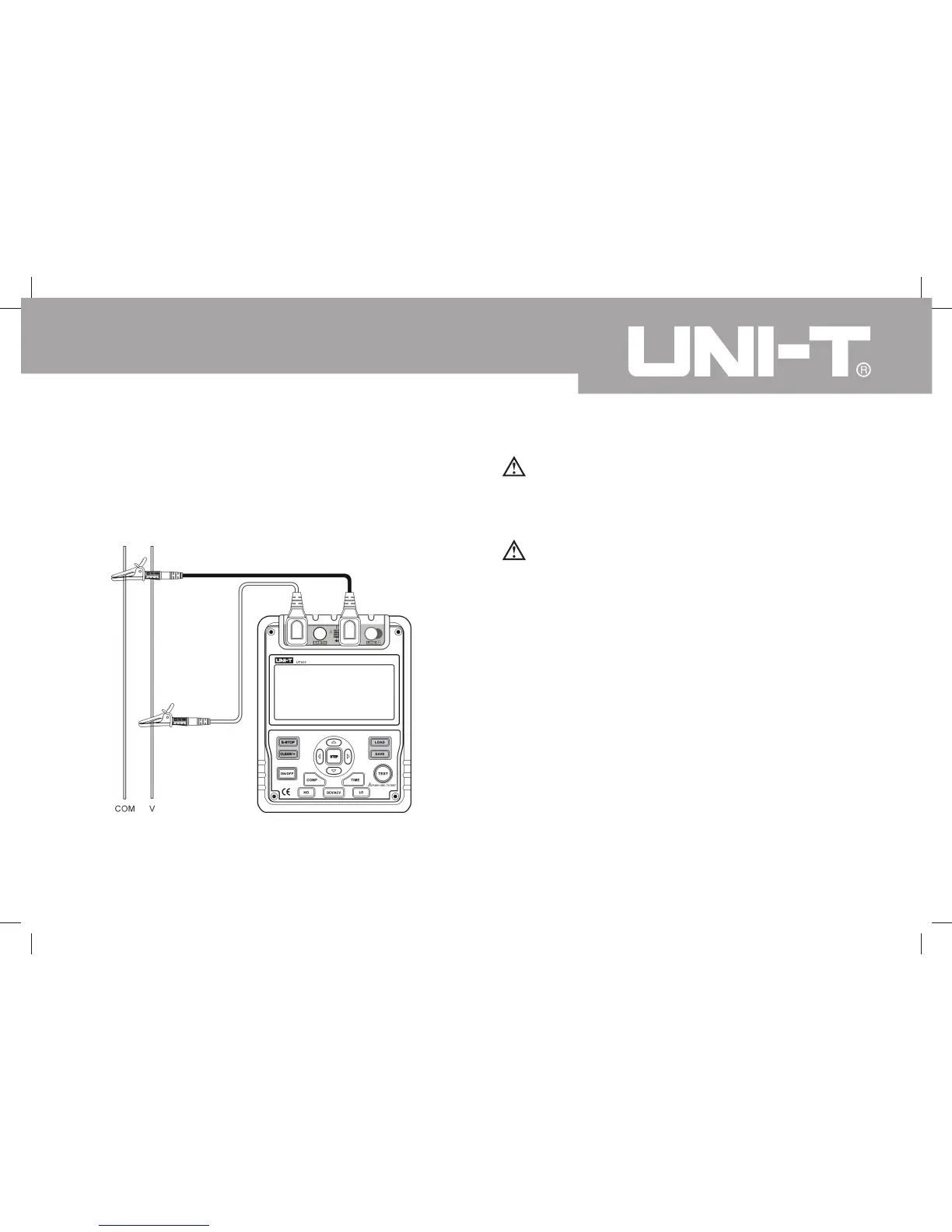

Figure 4. Voltages Measurement
l Special care should be taken when measuring
high voltage.
Caution
Warning
l To avoid harms to you or damages to the Meter,
please do not attempt to measure voltages
higher than 1000V DC or 750V AC, although
readings may be obtained.
To measure voltages, set up the Meter as Figure 4 and
do the following:
Press DCV or ACV button to select DC voltage or
AC voltage measurement
Insert the red test lead into the V terminal and the
black test lead into the COM terminal.
Connect the red and black alligator clip to the circuit
to be measured.
During measurement, when the red test lead is
negative voltage, then “-“ shows on the display.
1.
2.
3.
4.
Black
Red

UNI-T UT511 Specifications

General

Backlight	Yes
Product type	Digital multimeter
Basic accuracy (DC voltage)	±(1%+3)
Dimensions (WxDxH)	155 x 94 x 202 mm
Battery voltage	1.5 V

Weight and Dimensions

Weight	2000 g
