Note
l In a circuit, a good diode should still produce a forward
voltage drop reading of 0.5V to 0.8V; however, the
reverse voltage drop reading can vary depending
on the resistance of other pathways between the
probe tips.
l Connect the test leads to the proper terminals as
said above to avoid error display.
l The LCD will display OL indicating either open circuit
or wrong polarity connection.
l The unit of diode is volt (V), displaying the positive-
connection voltage-drop value.
l Diode test has only auto range mode, open circuit
voltage approximate 3V.
l When diode testing has been completed, disconnect
the connection between the testing leads and the
circuit under test and remove testing leads from the
input terminals.

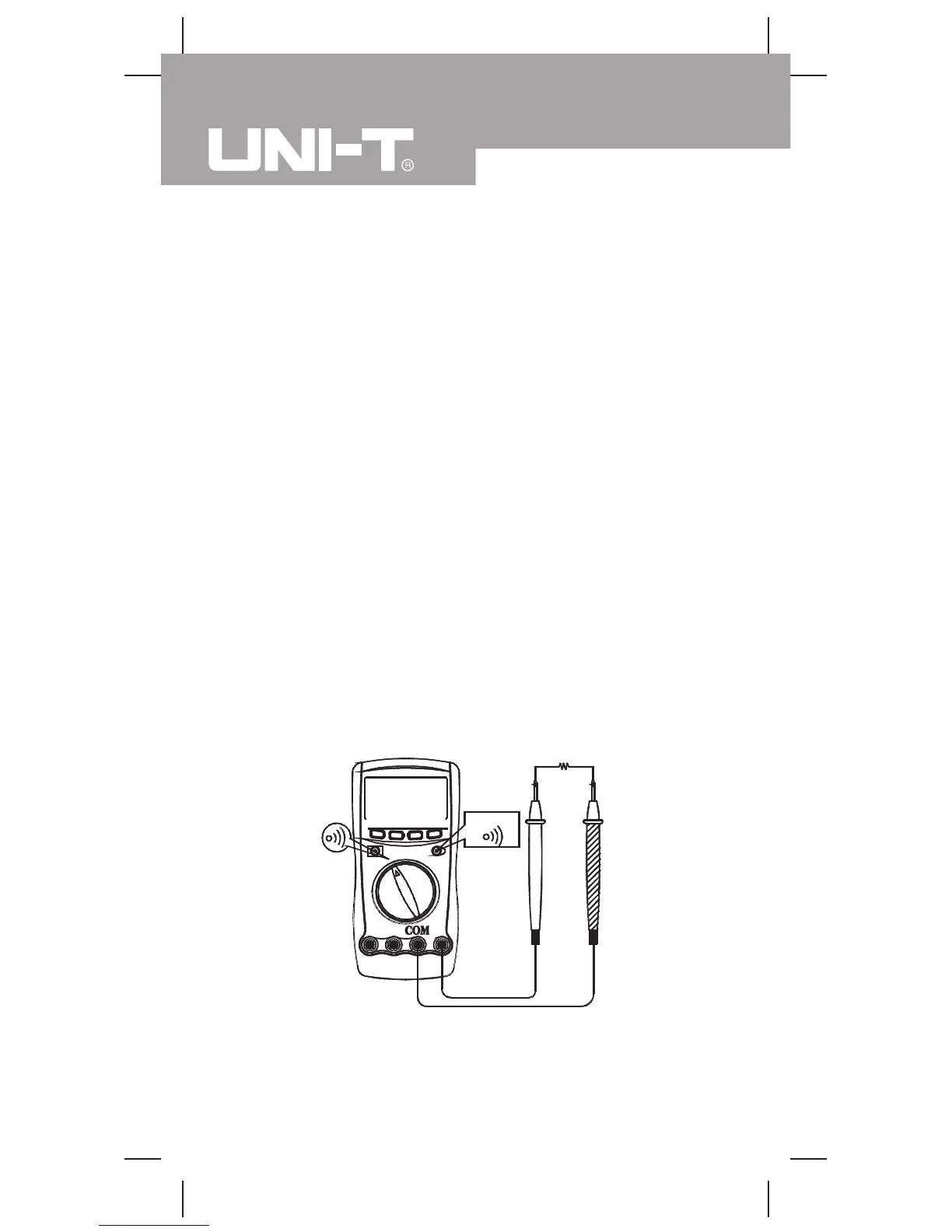

F. Testing for Continuity (see figure 8)
Select
red black
( figure 8)
Measurement Operation(8)
