Measurement Operation(10)
The Meter capacitance ranges are:
Model UT60F: 4nF, 40nF, 400nF, 4µF, 40µF, 400µF and
4mF.
Model UT60G: 6nF, 60nF, 600nF, 6µF, 60µF, 600µF and
6mF.

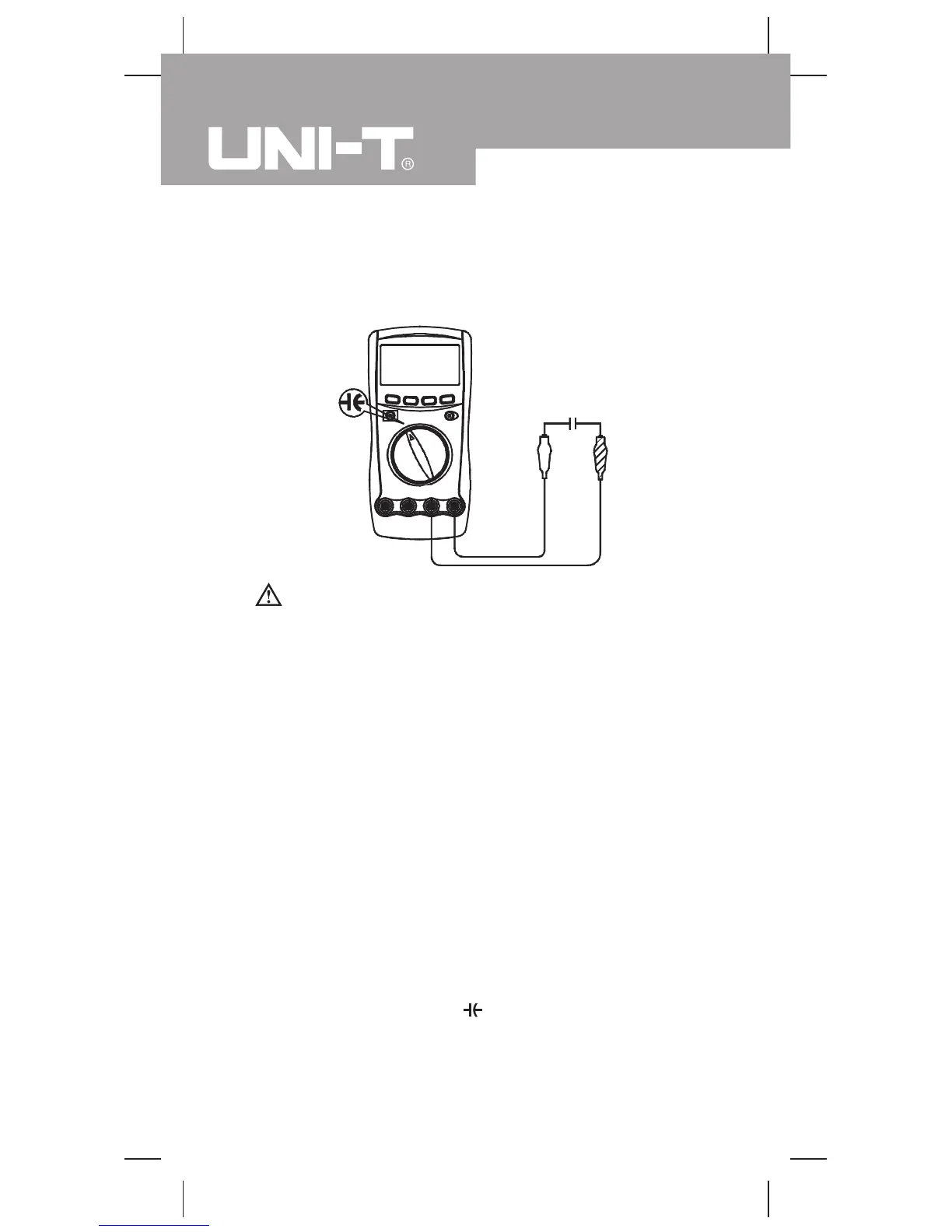

G. Capacitance Measurement (see figure 9)
red black
( figure 9)
Warning
To avoid harms to you, please do not attempt to
measure voltages higher than 60V DC or 30V rms AC.
To avoid damage to the Meter or to the equipment
under test, disconnect circuit power and discharge
all high-voltage capacitors before measuring
capacitance.
Use the DC votage function to confirm that the
capacitor is discharged.
Connect the Meter as follows:
1. Insert the red test lead or red clip into the HzVΩ
terminal and the black test lead or black clip into the
COM terminal.
2. Set the rotary switch to .
3. Connect the test lead or test clip across with the
object being measured.
The measured value shows on the display.
Model UT60F/G: OPERATING MANUAL
