Measurement Operation(11)
Note
l For testing the capacitor with polarity, connect the
red test lead or red clip to anode & black test lead
or black clip to cathode.
l To minimize the effect of capacitance stored in the
test leads, the test lead should be as short as possible.
In addition, the remaining voltage, insulated impedance
& dielectric absorption from the capacitor may cause
the measurement error.
l It takes a longer time when testing a large capacitor
value, the testing time is around 15 seconds in mF
range.
l The LCD displays OL indicating the tested capacitor
is shorted or it exceeds the maximum range of the
Meter.
l When capacitance measurement has been completed,
disconnect the connection between the testing leads
or testing clips and the circuit under test and remove
the testing leads or testing clips away from the input
terminals of the Meter.
H. Frequency Measurement (see figure 10)
Warning
To avoid harms to you, please do not attempt to
measure voltages higher than 60V DC or 30V rms AC.
red black

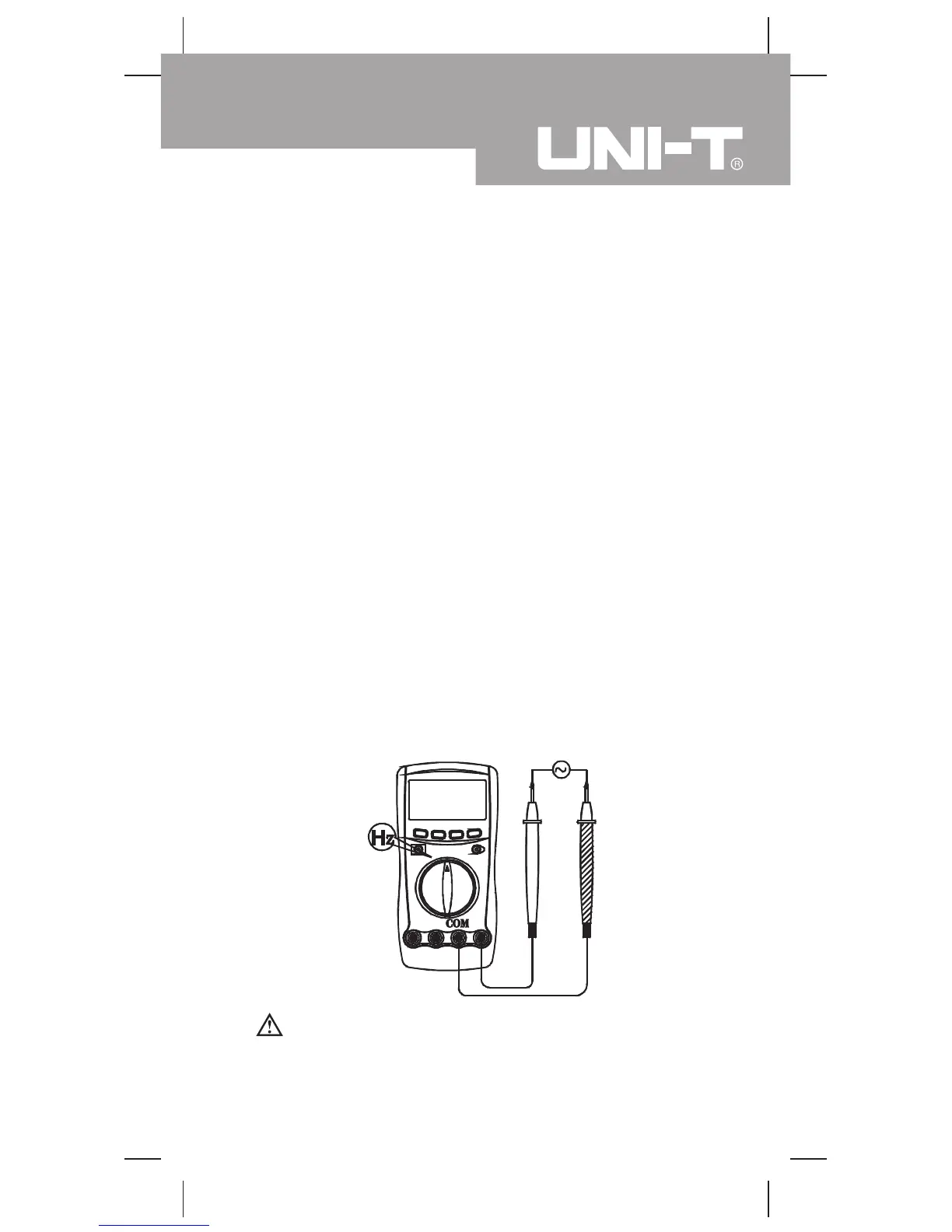

( figure 10)
Model UT60F/G: OPERATING MANUAL
