To measure DC voltage, connect the Meter as follows:
1.
2.
Model UT805: OPERATING MANUAL
COM
RL
DCV
Measurement Operation
If you have not done so, plug the line cord into the
connector on the rear of the Meter.

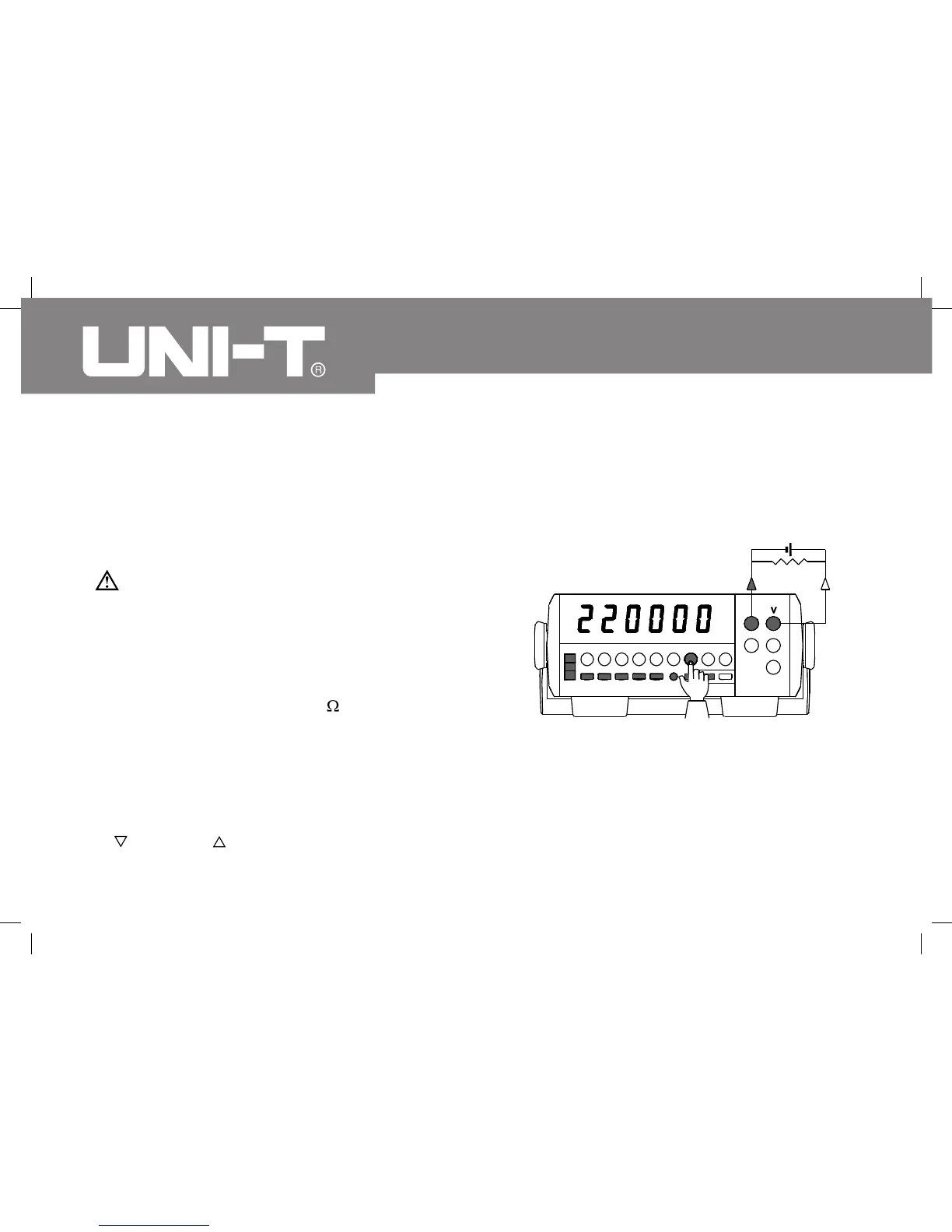

A. DC Voltage Measurement (See figure 4)
Warning
To avoid harms to you or damages to the Meter from
electric shock, please do not attempt to measure
voltages higher than 1000V or 750V rms although
readings may be obtained.
Insert the red test lead into the V/ terminal and the
black test lead into the COM terminal.
Press the DCV button. Auto ranging is default, the
Meter will select the appropriate range, and an
annunciator on the display will indicate measurement
units. Or you could select the manual ranging mode
according to the “Selecting a Measurement Range
( , AUTO and Button)” section.
(figure 4)
To Next Page
